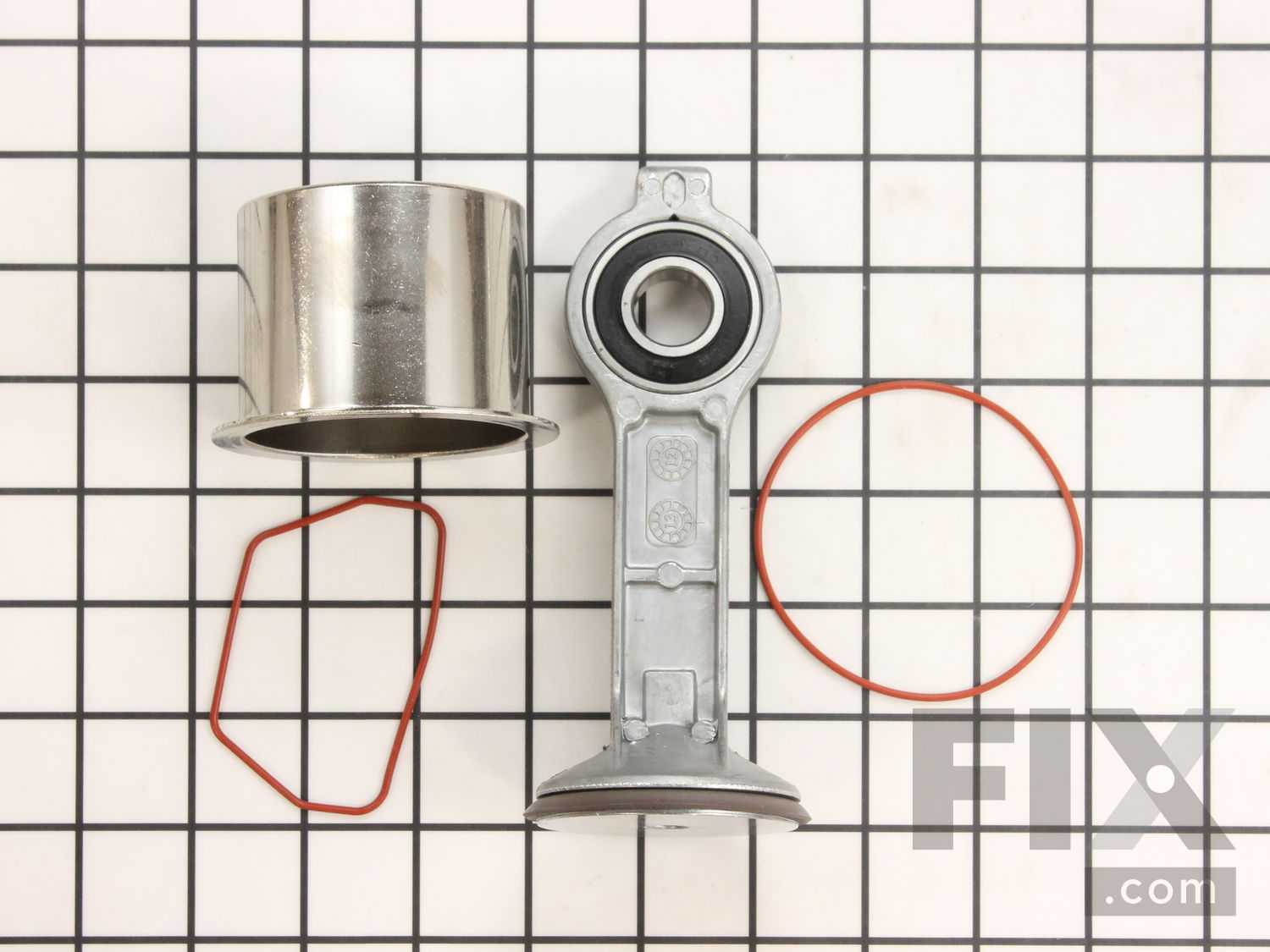

10039176-1-M-Craftsman-A02743-Piston, Rod Cylinder Kit
Part Location Diagram of A02743 Craftsman Piston, Rod Cylinder Kit
See part B-47 in the diagram
( Grid squares measure 1x1 inch )
10039176-1-S-Craftsman-A02743-Piston, Rod Cylinder Kit Part Location Diagram of A02743 Craftsman Piston, Rod Cylinder Kit

Piston, Rod Cylinder Kit A02743

$ 43.46
No Longer Available

No Longer Available

Sorry, this part is No Longer Available at Fix.com, which means:

  • The part is no longer sold by the manufacturer.
  • The manufacturer does not stock any substitute parts to replace this one and therefore, unfortunately, we cannot obtain or recommend a substitution for this part.
  • We cannot obtain the part through any other means.

Our call center and online agents are, unfortunately, unable to help you locate this part, but you may still be able to find the part elsewhere. We recommend:

  • Typing your part number into a search engine and checking to see whether another company might stock it.
  • Searching online stores like eBay for your part number.
  • Visiting a local appliance store or parts dealer to see if they have this part in stock.
  • Contacting a local technician, who may be able to repair your existing part or replace it with their own solution.
  • Contacting the manufacturer of your appliance directly to check for their recommendations.
Fix Number:
FIX10039176
Manufacturer #:
A02743
Manufactured by:
Craftsman

Product Description

This is an original OEM part. The connecting rod kit is constructed of metal and rubber parts. The piston and the crankshaft are fastened together by the connecting rod kit within the pump. It is recommended to refer to the specific manual and diagrams for repair instructions. This part is sold individually. A hex key and a wrench are necessary in the removal and replacement.

  • Works with the following brands:
    Craftsman
  • Works with the following products:
    Compressor
