16346106-1-M-Husqvarna-504735105-Cylinder Assembly

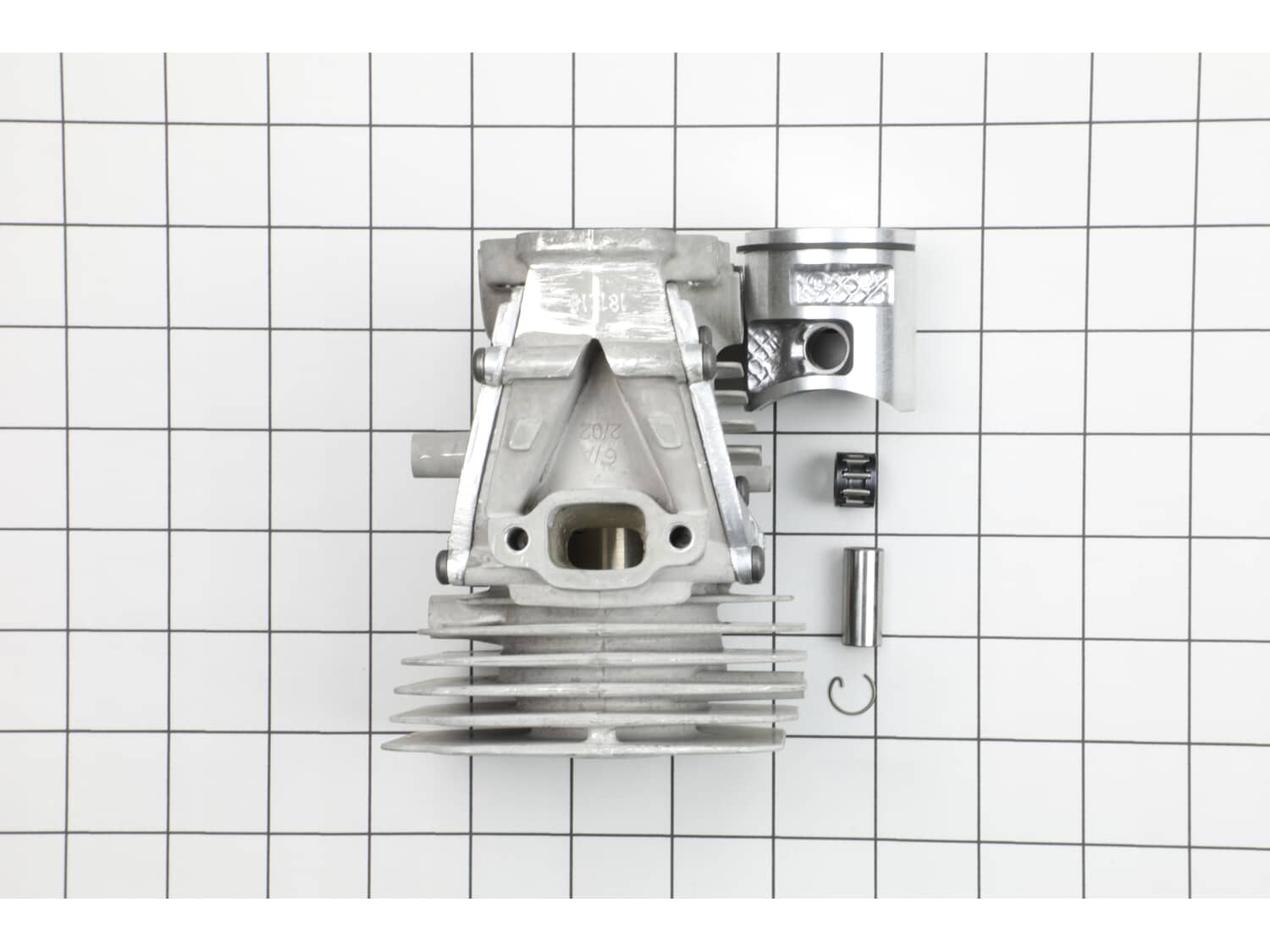

Part Location Diagram of 504735105 Husqvarna Cylinder Assembly
See part F-1 in the diagram
( Grid squares measure 1x1 inch )
16346106-1-S-Husqvarna-504735105-Cylinder Assembly Part Location Diagram of 504735105 Husqvarna Cylinder Assembly

Cylinder Assembly 504735105

Works With Model CS2240!
$144.27
In Stock
Fix Number:
FIX16346106
Manufacturer #:
504735105
Manufactured by:
Husqvarna
Works With Model CS2240!

Jump to:

Product Description

This OEM replacement part is intended to restore proper fit or movement in its intended application. Manufactured to the original design, it ensures compatibility and reliability. Its surface finish is crafted for long-term durability against the elements.

  • Works with the following brands:
    Husqvarna, Jonsered, RedMax
  • Works with the following products:
    Chainsaw
  • Part# 504735105 replaces these:
    5047351-01, 504735101, 504735102, 504735103
Works with the following brands:
Husqvarna, Jonsered, RedMax
Works with the following products
Chainsaw
Part Number Cross Reference
Part# 504735105 replaces these:
5047351-01, 504735101, 504735102, 504735103

Questions and Answers

Be the first to ask our experts a question about this part!
