Models
>
MER6772BAS
MER6772BAS Maytag Range
Jump to:
Find Part by Name
Keep searches simple, eg. "belt" or "pump".
Diagrams for MER6772BAS
Viewing 8 of 8Keep searches simple, eg. "belt" or "pump".
$51.51
The bake element found in the bottom of your oven provides most of the heat when cooking your food. If your oven is not coming up to temperature, heats unevenly, or is not heating at all, there may be...
In Stock
$34.72
This is a factory-certified oven sensor kit with two harness adapters. Its purpose is to sense the temperature inside the oven. Replacing this part can fix an oven that is not reaching the proper temp...
In Stock
This part includes one range leveling leg, sourced directly from the original manufacturer. The leveling leg is what supports the range and ensures it is sitting level, stable, and at the proper heigh...
In Stock
$20.77
This is a screw and it is made for multiple appliances in your home. This model is called a sheet metal screw because it has sharp points, and the threads are closer together. This screw is designed t...
In Stock
Sold individually. This is a radiant surface element with a limiter, and it works in conjunction with your range. The function of this part is to give heat to the surface directly above it, on cooking area stovetop.
In Stock
$7.95
This is a replacement screw and washer for your oven/range. It is a Phillips-head screw approximately half an inch long, and the washer is approximately 1 inch in diameter. The screw attaches the oven...
In Stock
This is an oven rack for your range. It is a stable surface for your cookware to sit when baking and broiling. It measures to be roughly 23 inches wide and 16 inches long. It is made of durable metal ...
No Longer Available
In Stock

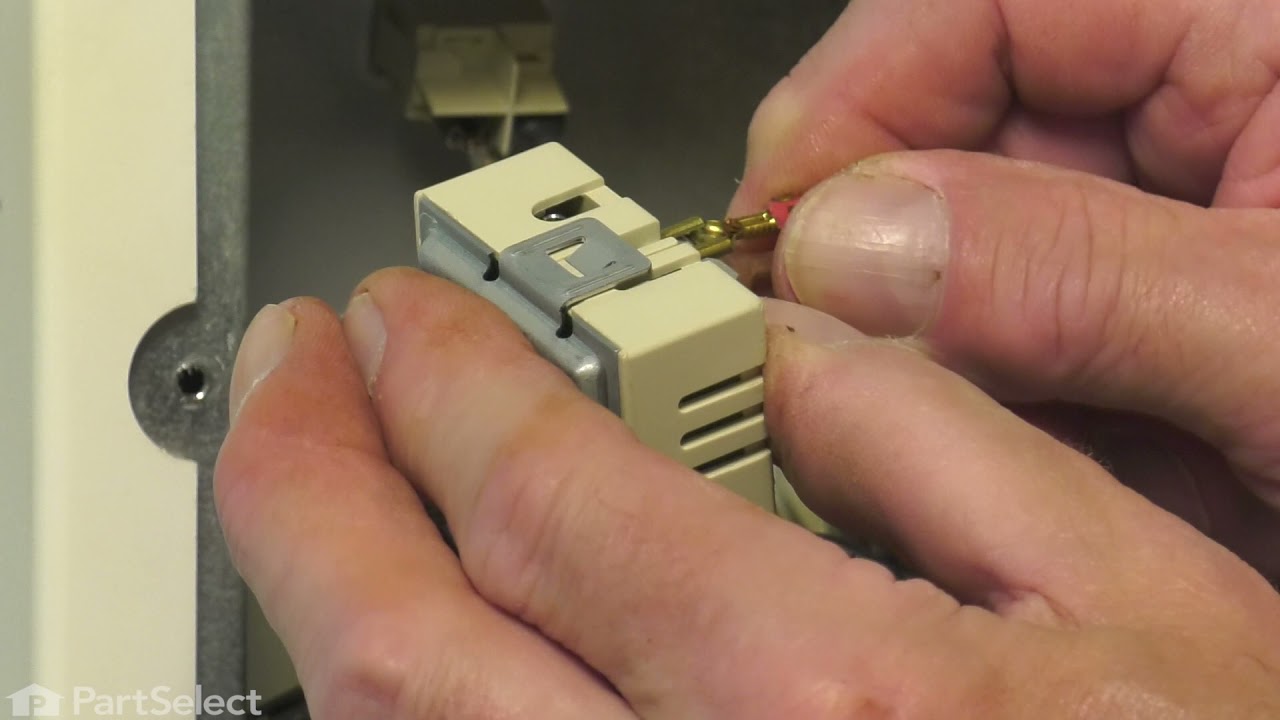

This infinite switch for eight inch range burners is almost three inches long. This infinite switch is for 8-inch range burners. When an element is unable to produce any heat on a modern oven, the pro...
In Stock
In Stock
In Stock
$25.74
This part is a replacement halogen lamp for your oven. The bulb is 25 watts and 120 volts. If your light bulb is burned out, this is the part that replaces it. Be sure to turn off power to your range ...
In Stock
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Kathleen
March 17, 2022
Do you sell terminal block
For model number MER6772BAS

Hello Kathleen, thank you for your question. We have researched the model you have provided, and we would suggest the Terminal Block, part number FIX11750972. If you need help placing an order, our customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Was this helpful?
Thank you for voting!
Common Problems and Symptoms for MER6772BAS
Viewing 10 of 10Element will not heat
Fixed by these parts



How to fix it
Little to no heat when baking
Fixed by these parts



How to fix it
Oven not heating evenly
Fixed by these parts



How to fix it
Little to no heat when broiling
Fixed by these parts



How to fix it
Will Not Start
Fixed by these parts



How to fix it
Oven is too hot
Fixed by these parts



How to fix it
Touchpad does not respond
Fixed by these parts



How to fix it
Door won’t close
Fixed by these parts


How to fix it
Will not program
Fixed by these parts

How to fix it
Door won’t open after self cleaning cycle
Fixed by these parts

How to fix it
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
- Customer:
- Mark from Loxahatchee, FL
- Parts Used:
- W10823711
- Difficulty Level:
- Really Easy
- Total Repair Time:
- 15 - 30 mins
- Tools:
- Nutdriver, Screw drivers
Right rear burner went bad
Turned the breaker off, I removed 2 screws securing the range top to the range, opened the top and secured it in the up position, Removed the 2 screws securing the element ,one at a time I swapped the quick connectors from the old element to the new and repeated the process in reverse. I save over $100.00 in labor, plus most companies get
... Read more
you for a trip charge. It was easy!!
Read less
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- David from Westford, MA
- Parts Used:
- 12001656
- Difficulty Level:
- Really Easy
- Total Repair Time:
- 15 - 30 mins
- Tools:
- Screw drivers
Oven not holding 350 F, when cooling the coils did not reheat
Removed the oven door by opening slightly, then pic door up to remove. Remove 2 screws holding oven sensor in place, gently pull on sensor to remove, had to remove about 8 inches to get at plastic connector. Unplug connector, had to use an adapter cable supplied with the PartSelect kit to install new sensor, push cable back into opening,
... Read more
reinstall 2 screws. The oven works fine! Note that due to thermal lag the temperature overshoots to 370 degrees and undershoots to 340 degrees, this appears to be normal oven operation. Putting door back in place was easy.
Read less
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- Gregory from Cary, NC
- Parts Used:
- W10823711
- Difficulty Level:
- Really Easy
- Total Repair Time:
- 15 - 30 mins
- Tools:
- Screw drivers
Hot Burner Light always on
Thermal switch is integral to element and can not be changed, must replace entire element.
Turn off power. Removed front two screws above oven door jamb and lifted the top. Removed the bracket that holds the element against the glass top and removed the element. Moved brackets from old element to new one, aligning to same numer ... Read more ical position and then moved wiring to new element. Slide new element under bracket and reinstalled single screw. Replaced top and screwed down. Turn on power and test .
Turn off power. Removed front two screws above oven door jamb and lifted the top. Removed the bracket that holds the element against the glass top and removed the element. Moved brackets from old element to new one, aligning to same numer ... Read more ical position and then moved wiring to new element. Slide new element under bracket and reinstalled single screw. Replaced top and screwed down. Turn on power and test .
Read less
