PS978ST1SS General Electric Range

Jump to:

Find Part by Name

Keep searches simple, eg. "belt" or "pump".

Diagrams for PS978ST1SS

Viewing 9 of 9

Manuals & Guides for PS978ST1SS

Click to download
Keep searches simple, eg. "belt" or "pump".
If your oven is running hot, not heating evenly, not coming up to temperature, or just not heating up at all, there may be an issue with the temperature sensor. This sensor is usually found in the bac...
In Stock
This 40-Watt light bulb is sold individually and is a genuine OEM replacement option for your home appliances. It is specially designed to withstand extreme temperatures, so this bulb is compatible wi...
In Stock
$36.75
This temperature sensor detects the temperature within the oven cavity.
In Stock
This radiant stovetop element, or burner, is a genuine replacement part, and is 8 inches in diameter. The radiant element heats your cookware as you prepare food on the stovetop. To complete this repa...
In Stock
This part is the replacement oven bulb lens cover. It is made of glass and is approximately 3 inches in diameter. The lens cover is rigid and protects the oven light bulb from being damaged. The main ...
In Stock
This probe is used to check the internal temperature of the meat to ensure proper temperature is reached. Also known as a Meat Probe.
In Stock
Sold individually.
In Stock

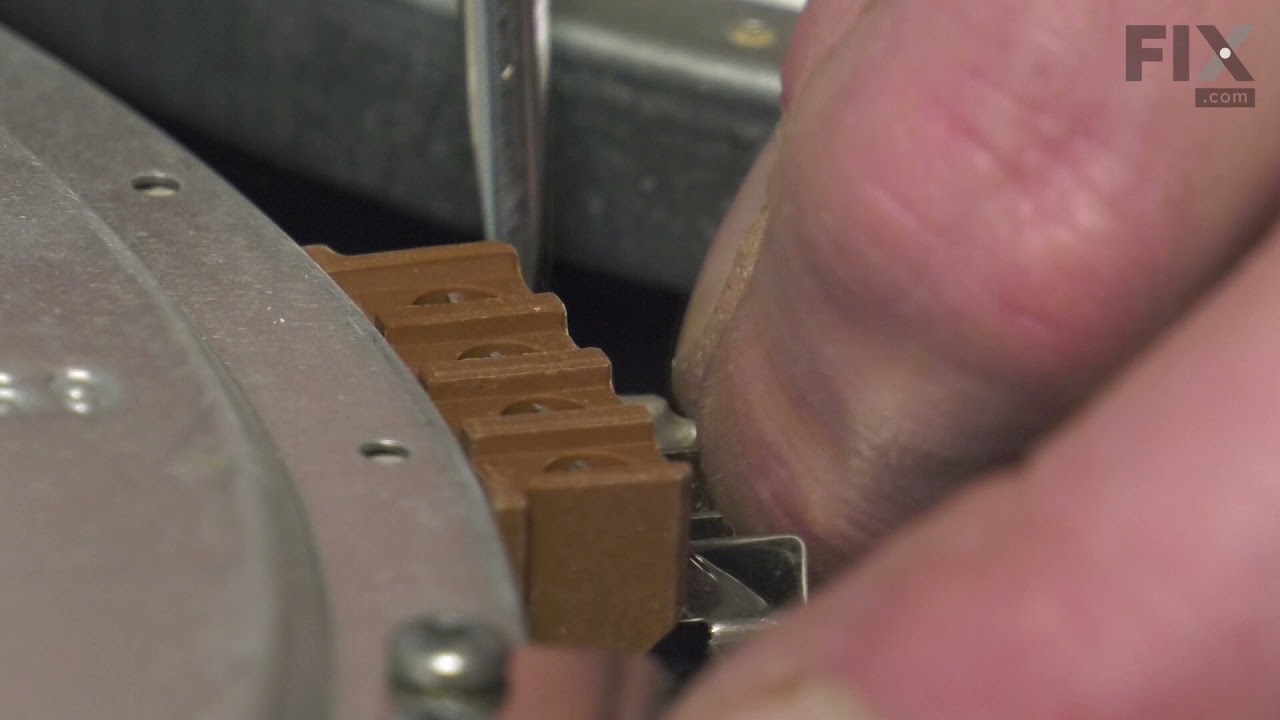

This is a replacement haliant element for your cooktop or range. It is used with flat top ranges, and is found under the glass top of the range. This element is approximately 12 inches in diameter and...
In Stock
$12.24
This screw is sold individually.
In Stock
$7.77
Sold Individually.
In Stock
In Stock

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

2 questions answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Amy
December 21, 2022
The left burner will not turn down off of high, when the glass panel is removed u can touch the back of the panel and it will work but not from the front glass touch pad. This is the only key that will not work, the up and down control. What part might i need?
For model number PS978ST1SS
Fix.com logo
Hi Amy, thank you for reaching out. You need to check the control panel assembly, part number FIX3654157, to fix the issue. We hope this information helps! If you need help placing an order, customer service is open 7 days a week. Thanks again for your great question.

Was this helpful?
Thank you for voting!
Related Parts:
Jan
May 7, 2023
Glass stove top heating elements will not stay on when requested. Selected element comes on and temp range set then stays on for 3-15 seconds then turns off. All elements are are functioning this way. Diagnosis?
For model number PS978ST1SS
Fix.com logo
Hello Jan, thank you for your inquiry. You may need to check the user interface control board, part number FIX5573482, to fix the issue. We hope this sorts out your problem!

Was this helpful?
Thank you for voting!
Related Parts:

Common Problems and Symptoms for PS978ST1SS

Viewing 6 of 6
Element will not heat
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Little to no heat when baking
Fixed by these parts
Fixing Fixing
How to fix it
Oven not heating evenly
Fixed by these parts
Fixing Fixing
How to fix it
Oven is too hot
Fixed by these parts
Fixing Fixing
How to fix it
Will Not Start
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Little to no heat when broiling
Fixed by these parts
Fixing
How to fix it
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Customer:
Peter from stamford, CT
Parts Used:
WB21X22134
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Oven would go in to a F2 Error
Removed six 1/4" hex nuts on rear of oven. Then through front/inside removed a single 1/4" hex nut to actually remove sensor. Unplug sensor connector, remove. Reversed steps, push oven back in place and plugged in. Tested oven function.
143 of 209 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Sean from Highlands Ranch, CO
Parts Used:
WB23T10015
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
Oven was not coming up to temperature
I had to remove the oven from the wall because the sensor plug connction is behind the unit. Two screws hold the sensor inside the oven and then I disconnected the lead and pulled the sensor out from the front. I installed the new sensor, tightened the two screws holding it in and connected the lead. Then reinstalled the oven into the wal l. Overall, a very easy repair once you get the oven out.
55 of 69 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Gerald from Cape Canaveral, FL
Parts Used:
WB21X22134
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Oven wouldn't preheat above 300 degrees
Unplugged appliance and removed 5 screws on back of stove/oven and removed plate. Disconnected the sensor and unscrewed it on the inside of the oven. Pulled the cord through and replaced with new sensor. Replaced all parts and plugged in the appliance and tested. Worked great.
48 of 78 people found this instruction helpful.
