Models
>
HGI8054UC
HGI8054UC (05) Bosch Range
Jump to:
Find Part by Name
Keep searches simple, eg. "belt" or "pump".

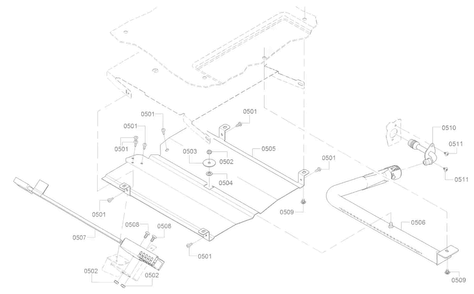

Diagrams for HGI8054UC
Viewing 10 of 10
Keep searches simple, eg. "belt" or "pump".
In Stock
In Stock
In Stock
Special Order
On Order
In Stock
$36.34
This burner cap is for cooktops. Burner cap fits on top of the burner head. The burner cap protects the burner head from spills and helps spread out the burner flame for even heating.
In Stock
In Stock
$38.26
This burner cap is for cooktops. Burner cap fits on top of the burner head. The burner cap protects the burner head from spills and helps spread out the burner flame for even heating.
In Stock
In Stock
In Stock
$38.26
Sold individually.
This burner cap is for cooktops. Burner cap fits on top of the burner head. The burner cap protects the burner head from spills and helps spread out the burner flame for even heating.
In Stock
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Common Problems and Symptoms for HGI8054UC
Viewing 2 of 2Gas igniter glows, but will not light
Fixed by these parts
How to fix it
Will Not Start
Fixed by these parts
How to fix it
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
- Customer:
- Jeffrey from Bloomington, MN
- Parts Used:
- 00755058
- Difficulty Level:
- A Bit Difficult
- Total Repair Time:
- 30 - 60 mins
- Tools:
- Screw drivers
Igniter replacement
Getting to the igniter is trivial, only requiring the removal of the stove bottom (two set screws) and a heat shield (the heat shield is held in place by screws with size 20 star-driver heads). At this point a splice could be made to the original wires, IF ceramic wire nuts were included with the replacement igniter (but, alas, they are n
... Read more
ot). IF a splice were made the repair would be a very easy, 10-minute job.
To replace the igniter then requires the complete removal of the back of the range (17, size 20 star-driver, screws, if I remember correctly), plus the removal of an additional heat shield (one more screw). Then one must carefully lift and free the back from tabs on both sides that are set into slots. (Oh, and you probably want to loosen the electrical cord shield that interferes with the back coming off.) The new igniter wire plug is only then very easily re-attached to existing harness. Everything is then replaced to finish the repair.
None of this is difficult, if you don't mind moving your range away from the wall and dealing with on the order of 20 screws. Personally, I think I would have rather found an igniter with ceramic wire nuts to splice to the original wires (certainly not as elegant as replacing igniter and wires entirely, but far quicker and easier).
To replace the igniter then requires the complete removal of the back of the range (17, size 20 star-driver, screws, if I remember correctly), plus the removal of an additional heat shield (one more screw). Then one must carefully lift and free the back from tabs on both sides that are set into slots. (Oh, and you probably want to loosen the electrical cord shield that interferes with the back coming off.) The new igniter wire plug is only then very easily re-attached to existing harness. Everything is then replaced to finish the repair.
None of this is difficult, if you don't mind moving your range away from the wall and dealing with on the order of 20 screws. Personally, I think I would have rather found an igniter with ceramic wire nuts to splice to the original wires (certainly not as elegant as replacing igniter and wires entirely, but far quicker and easier).
Read less
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- Ruben from STAR, ID
- Parts Used:
- 12012946
- Difficulty Level:
- Easy
- Total Repair Time:
- 30 - 60 mins
- Tools:
- Nutdriver, Socket set
Standoffs were not provided. The current standoffs needed to be remove and placed on the new board. (Not easy)
One the standoffs were removed they needed to be trimmed to attach to the new board. Took longer to do this than remove and replace board.
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- Barry from MONROE, NY
- Parts Used:
- 00630873
- Difficulty Level:
- Really Easy
- Total Repair Time:
- 15 - 30 mins
- Tools:
- Nutdriver
Oven was not heating properly
Took the one out of the box and take off the back plate and detach the sensor
