Models > AER5515QAW

AER5515QAW Amana Range

Jump to:

Find Part by Name

Keep searches simple, eg. "belt" or "pump".

Diagrams for AER5515QAW

Viewing 6 of 6

Manuals & Guides for AER5515QAW

Click to download
Keep searches simple, eg. "belt" or "pump".
This is a genuine OEM 40-Watt replacement light bulb that is compatible with various types of appliances. It has a frosted glass bulb with a standard metal socket base, making it easy to screw and uns...
In Stock
Order within the next 6 hrs and your part ships today!
This genuine OEM kit includes the parts required to replace a surface burner receptable on your range. The kit comes with a plastic block, a metal bracket, high temperature wire nuts, and wires. The b...
In Stock
Order within the next 6 hrs and your part ships today!
This is a factory-certified oven sensor kit with two harness adapters. Its purpose is to sense the temperature inside the oven. Replacing this part can fix an oven that is not reaching the proper temp...
In Stock
Order within the next 6 hrs and your part ships today!
This part includes one range leveling leg, sourced directly from the original manufacturer. The leveling leg is what supports the range and ensures it is sitting level, stable, and at the proper heigh...
In Stock
Order within the next 6 hrs and your part ships today!
This is a kit of 4 drip bowls - Two 6" and two 8". All pans have holes in the bottom and they are light gray in color.
In Stock
Order within the next 6 hrs and your part ships today!
$20.77
This is a screw and it is made for multiple appliances in your home. This model is called a sheet metal screw because it has sharp points, and the threads are closer together. This screw is designed t...
In Stock
Order within the next 6 hrs and your part ships today!

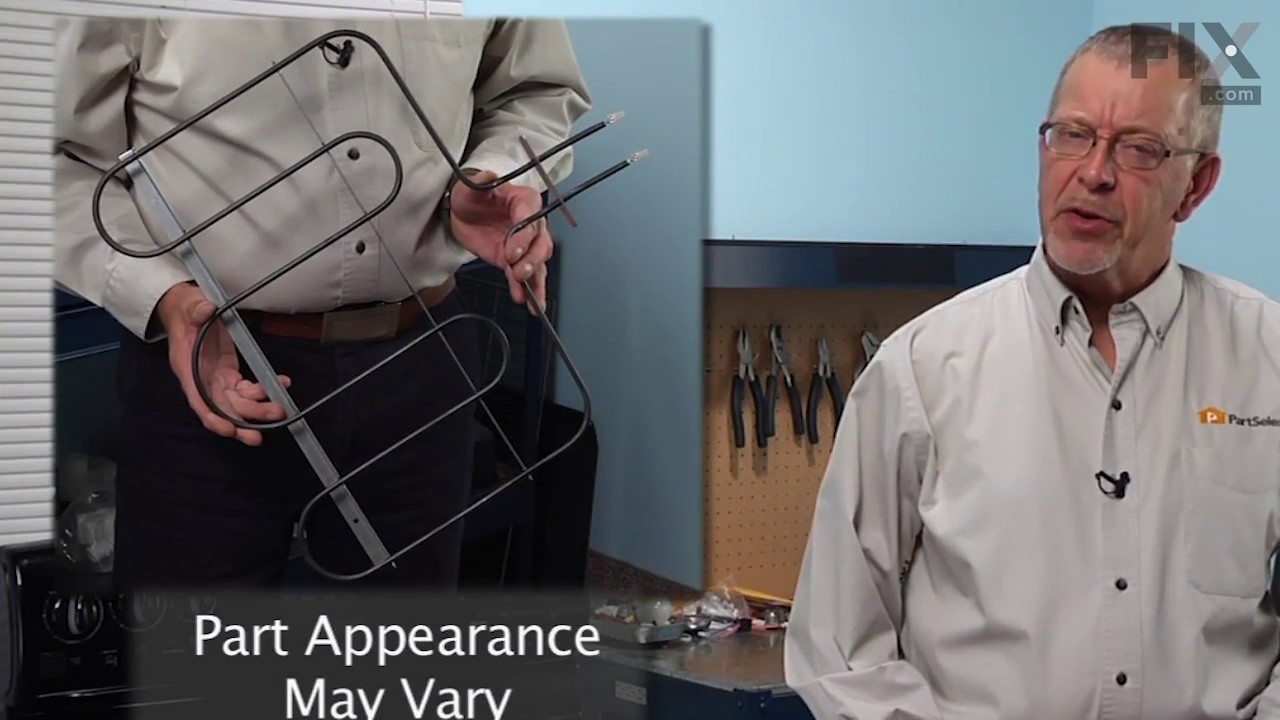

This bake element is found on the bottom of the oven. This bake element is for ranges. The bake element is at the bottom of the oven and supplies the heat for baking. Unplug the range or shut of...
In Stock
Order within the next 6 hrs and your part ships today!
This is a replacement screw and washer for your oven/range. It is a Phillips-head screw approximately half an inch long, and the washer is approximately 1 inch in diameter. The screw attaches the oven...
In Stock
Order within the next 6 hrs and your part ships today!
This infinite switch for eight inch range burners is almost three inches long. This infinite switch is for 8-inch range burners. When an element is unable to produce any heat on a modern oven, the pro...
In Stock
Order within the next 6 hrs and your part ships today!
It provides a way of connecting individual electrical wires and offers protection of the device from electrical surges (voltages and/or currents).
In Stock
Order within the next 6 hrs and your part ships today!
In Stock
Order within the next 6 hrs and your part ships today!
The top of this part is now black.
In Stock
Order within the next 6 hrs and your part ships today!

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Common Problems and Symptoms for AER5515QAW

Viewing 10 of 10
Element will not heat
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Little to no heat when baking
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Will Not Start
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Oven is too hot
Fixed by these parts
Fixing
How to fix it
Oven not heating evenly
Fixed by these parts
Fixing Fixing
How to fix it
Door won’t close
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Touchpad does not respond
Fixed by these parts
Fixing Fixing
How to fix it
Will not program
Fixed by these parts
Fixing
How to fix it
Little to no heat when broiling
Fixed by these parts
Fixing Fixing
How to fix it
Door won’t open after self cleaning cycle
Fixed by these parts
Fixing
How to fix it
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Customer:
Richard from Carthage, NC
Parts Used:
12001676
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
Stove top element not working due to bad receptacle.
Turned off the power at the breaker box, cut the wires approximately 5 inches from the bad receptacle and removed it after removing one screw. Stripped back the wires about 1/2 inch and attached the new wires with the ceramic wire nuts provided and secured the receptacle back in place with the new screw provided in the kit.
My sister 's husband wanted to scrap the whole range but I repaired it with $14.00 worth of parts.
The element is working great now.
Whenever I need appliance parts again I'll use partselect.com.
191 of 208 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
David from Westford, MA
Parts Used:
12001656
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Oven not holding 350 F, when cooling the coils did not reheat
Removed the oven door by opening slightly, then pic door up to remove. Remove 2 screws holding oven sensor in place, gently pull on sensor to remove, had to remove about 8 inches to get at plastic connector. Unplug connector, had to use an adapter cable supplied with the PartSelect kit to install new sensor, push cable back into opening, reinstall 2 screws. The oven works fine! Note that due to thermal lag the temperature overshoots to 370 degrees and undershoots to 340 degrees, this appears to be normal oven operation. Putting door back in place was easy.
157 of 198 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Shawn from Atlantic Highlands, NJ
Parts Used:
WPW10276482
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Oven wouldn't get hot enough
First and MOST IMPORTANTLY, I located the breaker switch for my oven and turned it off. I verified this by noticing that the electric clock on the oven display was no longer powered.

After removing all the oven racks, I removed the two screws at the bottom of the back end of the oven holding the metal "floor" in place. ... Read more />
Removing the "floor" cover exposed the old heating element and I was able to quickly identify the corrosion of the old heating element which caused it break.

I unscrewed the two screws attaching the heating element to the bottom of the oven, then there was another screw attaching the back of the heating element to the back wall of the oven.

I had to pull the element towards me with a decent amount of force. This is the "quick and dirty" way of getting the job done, because I didn't want to have to find a way to pull my entire oven out from the wall of my kitchen in order to gain access to the back panel. Eventually with enough pulling, the two wires came through the holes with the gator clips still attached to the element (good! it would not have been fun if one of those came off too soon). Incidentally, a bit of fiberglass insulation also came through the holes. It didn't seem to be a big deal, I just discarded the fluff.

I detached the gator clips from the old heating element and removed it. It had a fair amount of black carbon residue (I assume) so you might want to wear gloves for this part or at least have a paper towel handy to clean your hands up.

Just follow the same directions in reverse the get the new element in. Hook up the gator clips, shove them through the two holes in the back of the oven, remount all the screws, remount the oven "flooring" and screw it back in. Before replacing the flooring, you may want to try turning on your oven to ensure it gives a nice pretty orange glow. Of course don't forget to let it cool down before proceeding, if you do that!

Don't think you have to be an expert to do this one. I was able to diagnose and fix this problem without any prior oven repair situations under my belt.
134 of 145 people found this instruction helpful.
