Models > N59FN

N59FN Bostitch Nailer

Jump to:

Find Part by Name

Keep searches simple, eg. "belt" or "pump".

Diagrams for N59FN

Viewing 1 of 1
Page A Diagram and Parts List for Bostitch Nailer
Page A
Keep searches simple, eg. "belt" or "pump".
KIT-TRIGGER VALVE – Part Number: TVA6
$51.65
This is a genuine Bostitch replacement part that fits all BT brad nailers and all S32 staplers. If trigger leaks air or if tool misfires often, try replacing trigger valve. This kit contains one (1) e...
In Stock
Order now and your part arrives by May 7
O-RING, .614X.070 – Part Number: 86459
$13.97
This item is a genuine OEM replacement part by Bostitch. It is a part of the trigger valve assembly. These parts may need replacement if air is leaking through the trigger. An O-ring is a bendable pie...
In Stock
Order now and your part arrives by May 7
Cylinder Seal – Part Number: N70151
This is a high-quality part which is supplied by the original manufacturer. It is specially made for use with Bostitch staplers and nailers. It helps to provide a tight seal for the cylinder. Over tim...
No Longer Available
SEAL – Part Number: N50013
$6.51
This is a genuine Bostitch replacement part that has been OEM sourced to ensure quality. The seal is intended to be used with pneumatic staplers and finishing nailers. The seal is used to form an air-...
In Stock
Order now and your part arrives by May 7
KIT-SEQUENTIAL – Part Number: SEQ6
$23.83
This authentic OEM sourced replacement part is designed for use with Bostitch nailers and staplers. The trigger provides a user with a comfortable grip to control the sequential trigger function of th...
In Stock
Order now and your part arrives by May 7
Foot Tip – Part Number: N60013
This item is an authentic Bostitch replacement part that has been sourced to be used with pneumatic nailers. The foot tip attaches to the foot trip and is used to provide a softer surface to the trip ...
No Longer Available
SPRING-COMPRESSION – Part Number: 100387
$6.51
This compression spring is an OEM direct from Bostitch. The metal spring is compatible with many stapler and nailer tools. This item is fitted within the trigger valve kit of the device. The spring is...
In Stock
Order now and your part arrives by May 7
O-RING-.703X.103 – Part Number: 851554
$6.51
This o-ring is a high quality item designed for Bostitch nailers and staplers. It is an authentic part that is supplied directly from original equipment manufacturer. This o-ring is generally used to ...
In Stock
Order now and your part arrives by May 7
PIN-SPECIAL SPIROL M – Part Number: 102549
$6.51
The special spirol pin is made out of metal and attaches to the frame. This part is available as an individual replacement part. This is a genuine Bostitch replacement part used in compatible nailers....
In Stock
Order now and your part arrives by May 7
PIN-SPIRAL M3X20MM – Part Number: MPP030020
$6.51
This is an authentic replacement pin which is sourced from the original equipment manufacturer for use with Bostitch nailers and staplers. It is a standard hardware which may have multiple application...
In Stock
Order now and your part arrives by May 7
KIT-CONTACT TRIP CON – Part Number: CNTK2
$30.22
In Stock
Order now and your part arrives by May 7
Bumper, Top – Part Number: T50002
This replacement bumper is a genuine OEM sourced item that is specially made for Bostitch nailers and staplers. The purpose of this part is to keep the piston from hitting the bottom of the cylinder a...
No Longer Available
View More

Questions and Answers

Be the first to ask our experts a question about this part!

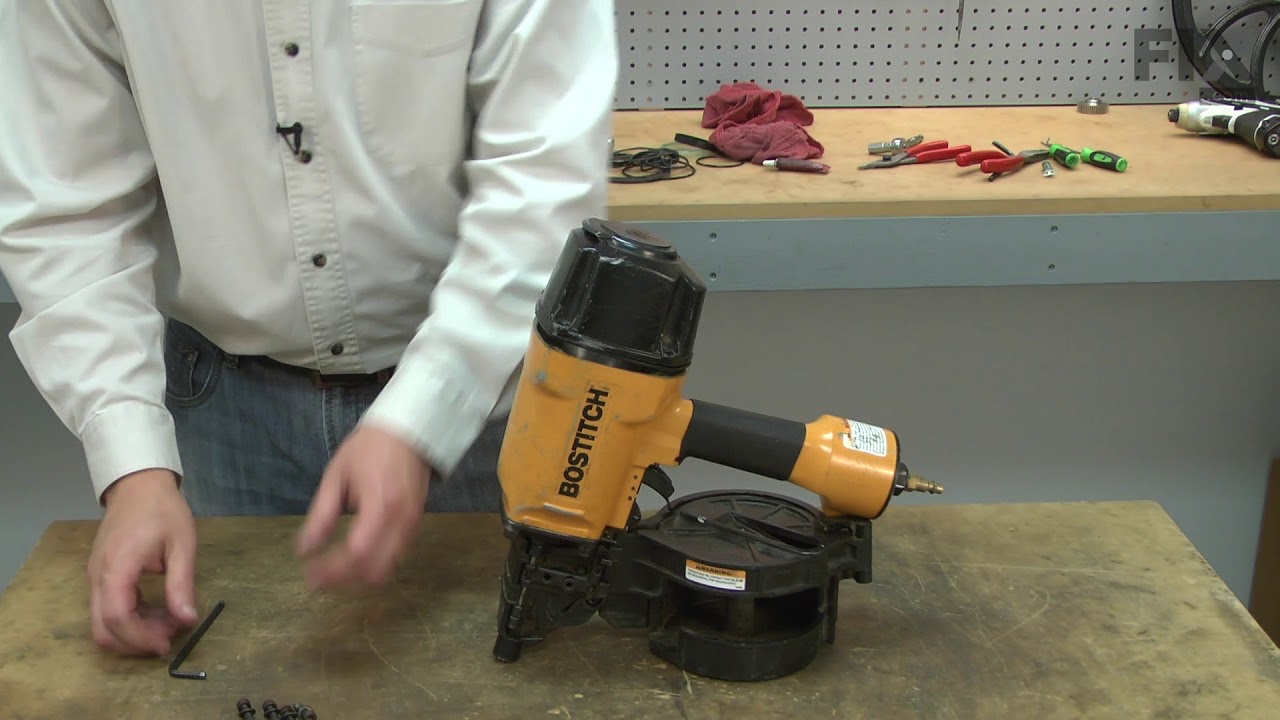

Replacing the Cylinder Seal

Replacing the Cylinder Seal

View More
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Customer:
Richard from Bogalusa, LA
Parts Used:
TVA6
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
would not fire nails
remove 2 Philips head screws, drive out drift pins with drill bit. Remove TVA6 replace with new TVA6 making sure TVA6 is completely seated and slots are aligned with drift pin holes! Drive in drift pins. Replace trigger and screws.
This did not solve the problem as suggested by Parts select.
Replaced Head Valve Seal...Problem re solved
Read less
6 of 11 people found this instruction helpful.
