Models > F28WW

F28WW (Type 0) Bostitch Nailer

Jump to:

Find Part by Name

Keep searches simple, eg. "belt" or "pump".

Diagrams for F28WW

Viewing 1 of 1
Page A Diagram and Parts List for Type 0 Bostitch Nailer
Page A
Keep searches simple, eg. "belt" or "pump".
Trigger Valve Kit – Part Number: TVA6
$47.08
This is a genuine Bostitch replacement part that fits all BT brad nailers and all S32 staplers. If trigger leaks air or if tool misfires often, try replacing trigger valve. This kit contains one (1) e...
Special Order
Utility Hook Assembly – Part Number: 171354
$11.31
Special Order
O-Ring,1.850X.210 – Part Number: 851606-S
$8.71
Special Order
Bumper,Drive – Part Number: 107231
$12.17
Special Order
Constant Force Spring – Part Number: 115143
$34.78
Special Order
O-Ring – Part Number: 163822
$35.23
In Stock
Trip Foot Assembly – Part Number: 121072
$6.03
Special Order
Utility Hook – Part Number: 171339
$5.95
Special Order
Seal,Head Valve – Part Number: 163823
$5.15
Special Order
O-Ring – Part Number: 105814
$5.38
In Stock
Compression Spring – Part Number: 100387
$5.15
Special Order
Frame/Cap Seal – Part Number: 163845
$5.15
In Stock
View More

Questions and Answers

Be the first to ask our experts a question about this part!

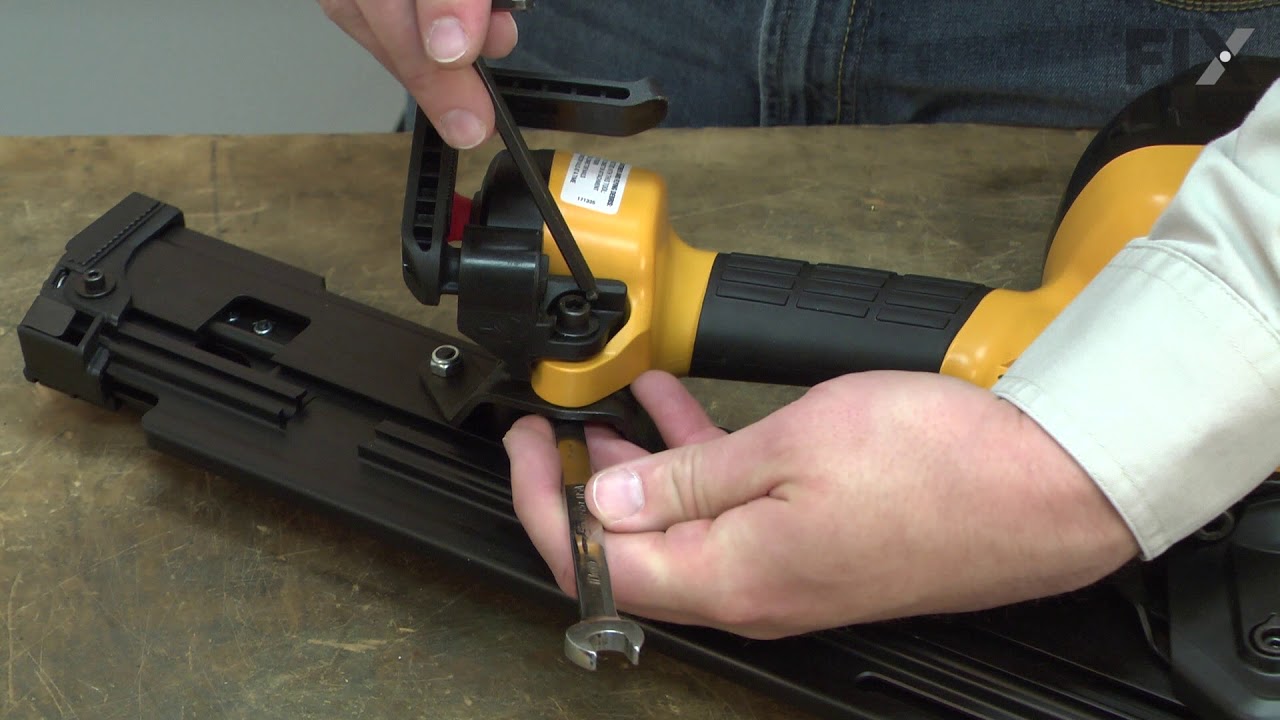

Replacing the Utility Hook Assembly

Replacing the Utility Hook Assembly

View More
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Customer:
Richard from Bogalusa, LA
Parts Used:
TVA6
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
would not fire nails
remove 2 Philips head screws, drive out drift pins with drill bit. Remove TVA6 replace with new TVA6 making sure TVA6 is completely seated and slots are aligned with drift pin holes! Drive in drift pins. Replace trigger and screws.
This did not solve the problem as suggested by Parts select.
Replaced Head Valve Seal...Problem re solved
Read less
2 of 6 people found this instruction helpful.
