This part includes one hex flange nut that is compatible with various outdoor equipment. It has a thread of 5/8-18 and consists of a hex nut with a wide flange on one end. The flange works like a wash...
Original Manufacturer Approved replacement Spindle Assembly 6.3 Diameter used on Lawn Tractors/Mowers. Includes Housing, Shaft assembly, Bearing, Pulley and nut. The mounting holes on the Mandrel are ...
This is a genuine replacement part produced by original manufacturer. It is used in various tractors from MTD, Yard Machines, Bolens, and Yard Man. Flange bearings facilitate spinning axles/shafts and...
This is a genuine OEM approved replacement fuel filter which is specially designed for use with gas-powered lawn and garden equipment. Its purpose is to ensure the fuel that is supplied into the engin...
It is an authentic manufacturer-sourced component which is specially designed for use with riding lawn mowers and garden tractors. This is the part of the tool that allows a user to turn the unit on a...
This is an authentic manufacturer made replacement part which is specially designed for use with Craftsman lawn tractors. The idler pulley applies tension to the belt which then makes the blade to rot...
This is a genuine part which is sourced from the original equipment manufacturer for use with lawn mowers. The special blade is secured under the deck to cut grass. Unfortunately, over time it will we...
Ask our experts a question about this part and we'll get back to you as soon as possible!
1 question answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched. Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Mark
October 13, 2021
There are 3 belts on my Craftsman r110 30” deck riding lawn mower. Model # cmxgram1130035 the upper transmission belt (which is in the back) the lower transmission belt (which is in the middle) and the drive belt for the deck. My lower transmission belt broke, the one in the middle MTD 954 04331 i have the new belt to replace it and i found a parts diagram, but it doesn’t show me how the belt goes around the pulleys. ?? is there some kind of decal or something a little less complicated so i can see how to route the belt properly?
For model number CMXGRAM1130035

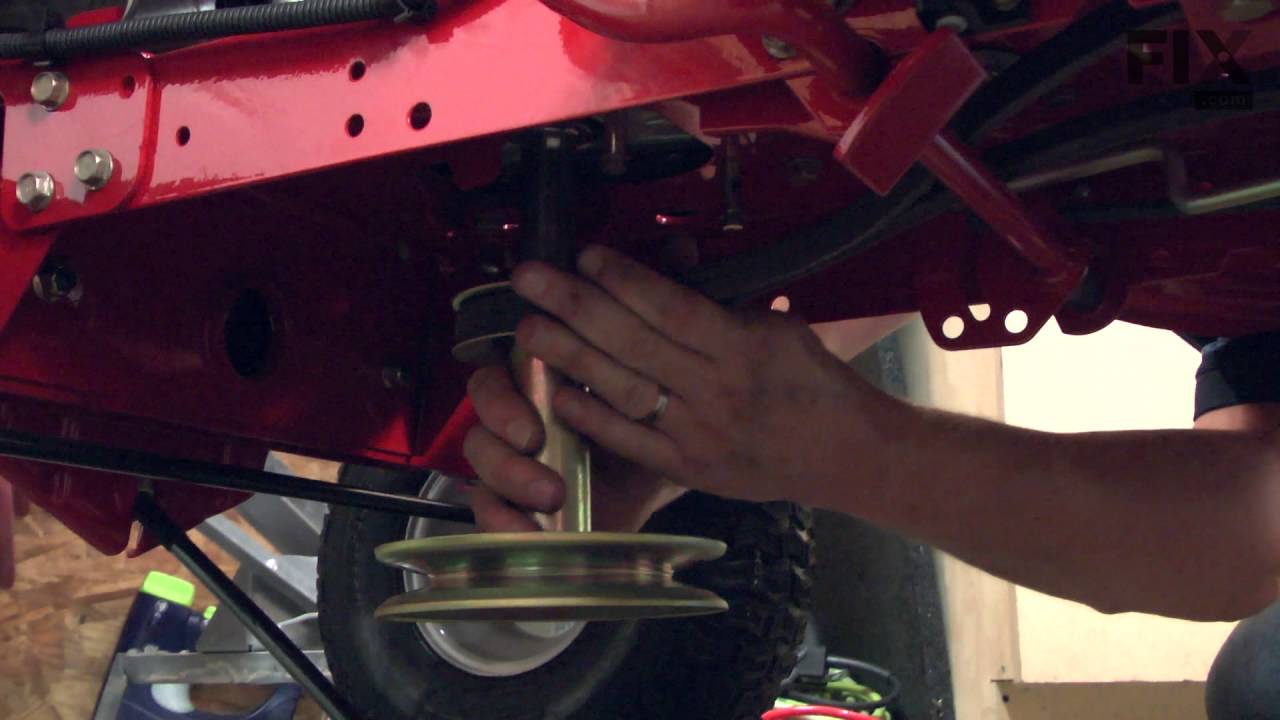

Hello Mark, Thank you for your inquiry. We have included a link to our repair videos on how to replace the drive belts for a similar model to give you a general idea of the procedure. Good luck with your repair.
https://www.youtube.com/watch?v=kGTWRePy3mA
1 person found this helpful.
Was this helpful?
Thank you for voting!
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Removed head. Replaced both rocker arms, intake pus rod, push rod guide exhaust and head gaskets. Torqued head in 3 stages to 216 in/lbs. gapped intake to .004 and exhaust to .006 at TDC
Added oil and gas. Now running great
If you need to replace push rods use steel (exhaust) they are the same length The engine
... Read morewas a Briggs & Stratton 217802 0113 E10604 (2006 year date code) I used the following 796189 gasket 272475S gasket 697494 push rod 690822 push rod guide 691751 rocker arms
First I opened the top of the mower to expose the housing cover. Secondly I removed the four housing bolts to remove the housing cover from the mower. Next I removed the tube breather and installed the new tube breather and replaced the housing cover with the four bolts previously removed and closed the top of the mower. I filled the mow
... Read moreer with gas to check for leaks which weren't any leaks. I proceeded to mow the lawn with ease.
