DE502 Maytag Dryer
Jump to:
Find Part by Name
Keep searches simple, eg. "belt" or "pump".
Keep searches simple, eg. "belt" or "pump".

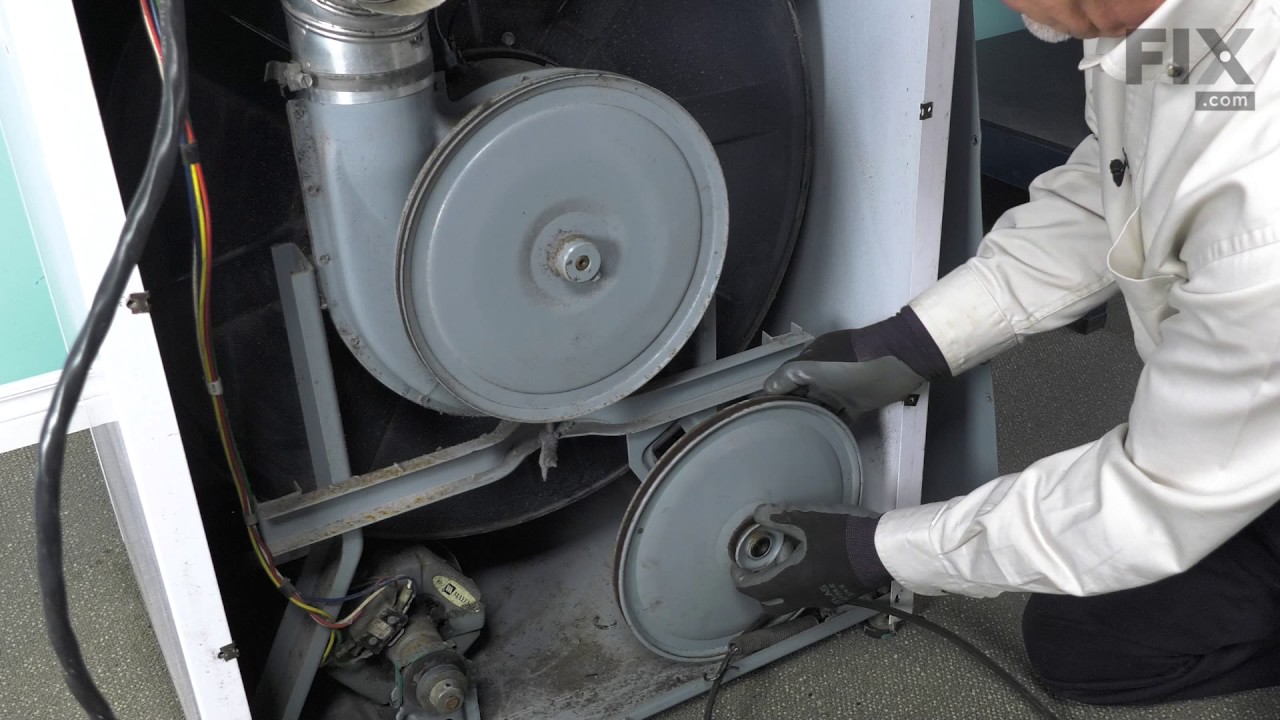

This 56 long dryer belt is used for many of Maytag's brands of clothes dryers. It is V-shaped, 3/8 of an inch wide, and drives the motor.
No Longer Available

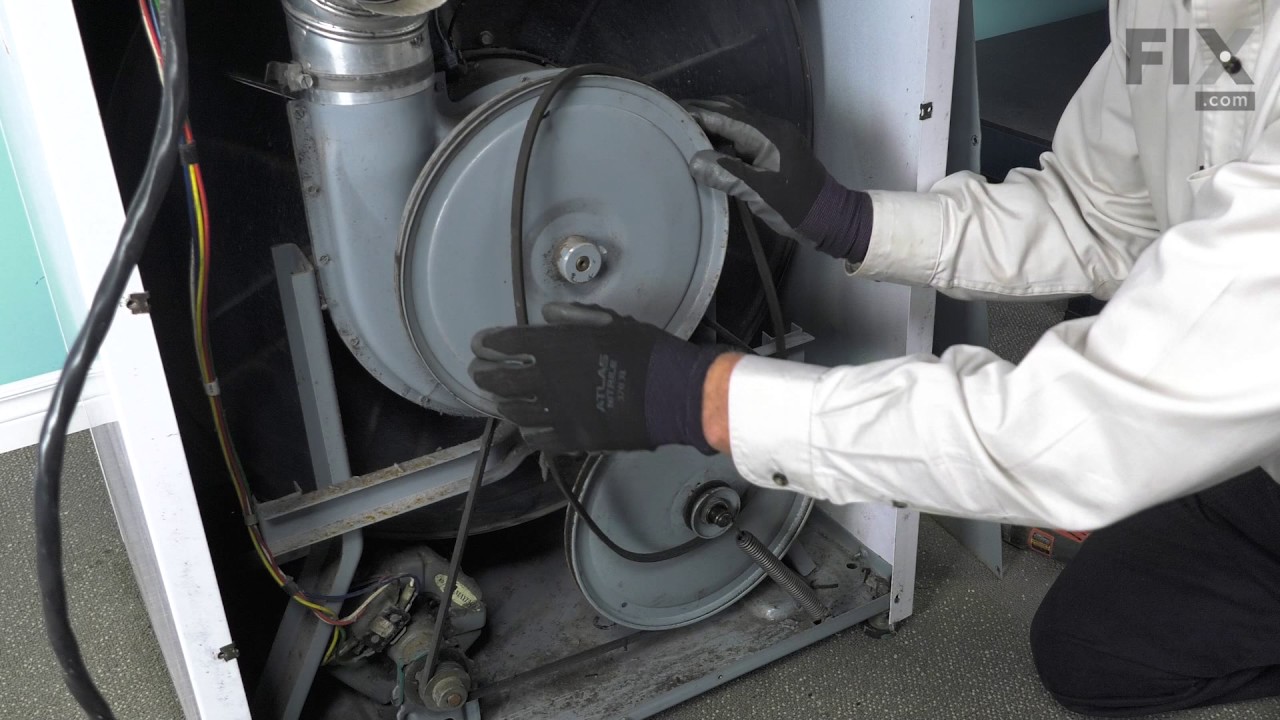

This 46-1/2 long dryer belt is used for many of Maytag's brands of clothes dryers. It is V-shaped, 3/8 of an inch wide, and drives the drum.
No Longer Available
Made for use with older model Maytag brand series 06 Halo of Heat style electric clothes dryers, this pre-stretched heating element coil carries 240 volts.
No Longer Available
This hi-limit thermostat acts as as safety mechanism that keeps the dryer from overheating. Once the dryer temperature reaches a certain point, this piece will shut down power to the heating element.
No Longer Available
This motor performs 1725 revolutions per minute. This motor is used for some of Maytag's 06 series gas or electric drive blower model clothes dryers that use two belts.
No Longer Available
Special Order
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
- Customer:
- John from Sante Fe, NM
- Parts Used:
- 300838
- Difficulty Level:
- A Bit Difficult
- Total Repair Time:
- More than 2 hours
Dryer of elderly relative was very hot and dried clothes slowly.
The lint filter was torn in a couple of places. This let lint go into the dryer vent pipe over a period of years. I ordered a new lint filter and replaced it. I also pulled out the plastic piece the filter sits against and cleaned out behind it. The vent went to the roof. I pulled off the rain shield and found that the vent pipe was
... Read more
almost completely packed with lint. I pulled out all I could reach and nailed a 2x2 inch and 1x2 inch together and used it to scrape out the vent pipe. I placed a flashlight in the bottom and checked to see it was clean. I replaced the rain shield and carefully reconnected the dryer to the vent. Now the dryer runs cool as it should.
Read less
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- Mary from Cudahy, WI
- Parts Used:
- 300838
- Difficulty Level:
- Really Easy
- Total Repair Time:
- Less than 15 mins
Lint screen had holes
New lint screen
