Models
>
MDE2440BGW
MDE2440BGW Maytag Dryer
Jump to:
Find Part by Name
Keep searches simple, eg. "belt" or "pump".
Diagrams for MDE2440BGW
Viewing 5 of 5
.gif "SUPPLEMENTAL INFORMATION Diagram and Parts List for Maytag Dryer")
Keep searches simple, eg. "belt" or "pump".
$21.82
This is a screw and it is made for multiple appliances in your home. This model is called a sheet metal screw because it has sharp points, and the threads are closer together. This screw is designed t...
In Stock
Order now and your part arrives by Apr 6
In Stock
Order now and your part arrives by Apr 6
In Stock
Order now and your part arrives by Apr 6
They are all strung with a coiled wire made of a nickel and a chrome alloy. This wire receives, but resists, a controlled electric current and as a result, the wire heats up. The heat produced is used...
No Longer Available

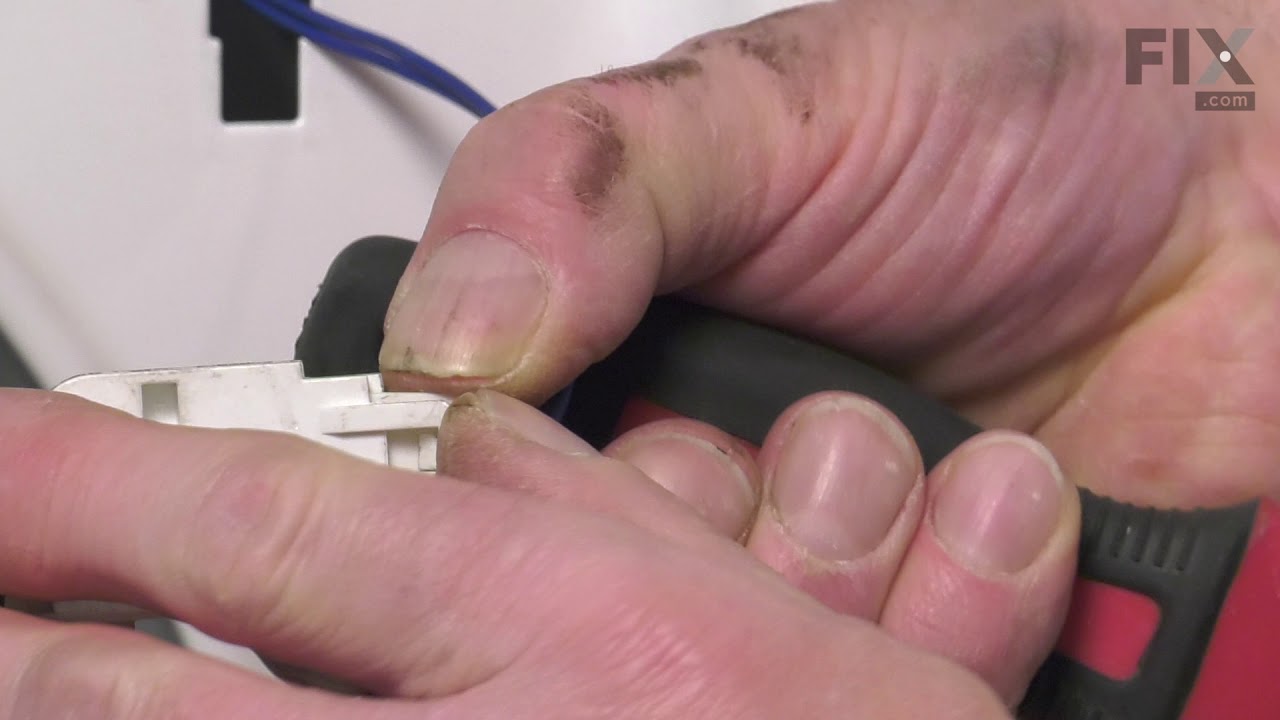

This part is the replacement drum support bushing for your dryer. It is made of white plastic and measures approximately 1-3/4 inches by 1/2 inch. The drum support bushing is the part that supports th...
No Longer Available
In Stock
Order now and your part arrives by Apr 6
In Stock
Order now and your part arrives by Apr 6
Special Order
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Common Problems and Symptoms for MDE2440BGW
Viewing 1 of 1
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
- Customer:
- benjamin from Dallas, TX
- Parts Used:
- 34001073
- Difficulty Level:
- Easy
- Total Repair Time:
- 15 - 30 mins
- Tools:
- Nutdriver, Pliers, Screw drivers
Heating element replacement
Don't pay a repair service for this job when you can do it yourself. Pop the two panels off the back of the machine. The top one is where you'll unhook the old heating element. The bottom one (where the exhaust is) is where you'll need to unhook the broken heating element from it's connector. Place the new heating element's wires down thr
... Read more
ough the back of the machine, plug the wires in (note - this is a 3-prong plug and it should only fit one way - the correct way) to the connector, and re-assemble.
Note: make sure that the exhaust pipe is secured back in its base. Getting the bottom panel back on is a little tricky, but you'll get in after a couple tries!
Note: make sure that the exhaust pipe is secured back in its base. Getting the bottom panel back on is a little tricky, but you'll get in after a couple tries!
Read less
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- frederick from walnut creek, CA
- Parts Used:
- WP35001012
- Difficulty Level:
- Easy
- Total Repair Time:
- 30 - 60 mins
- Tools:
- Screw drivers
dryer making squeeking noise

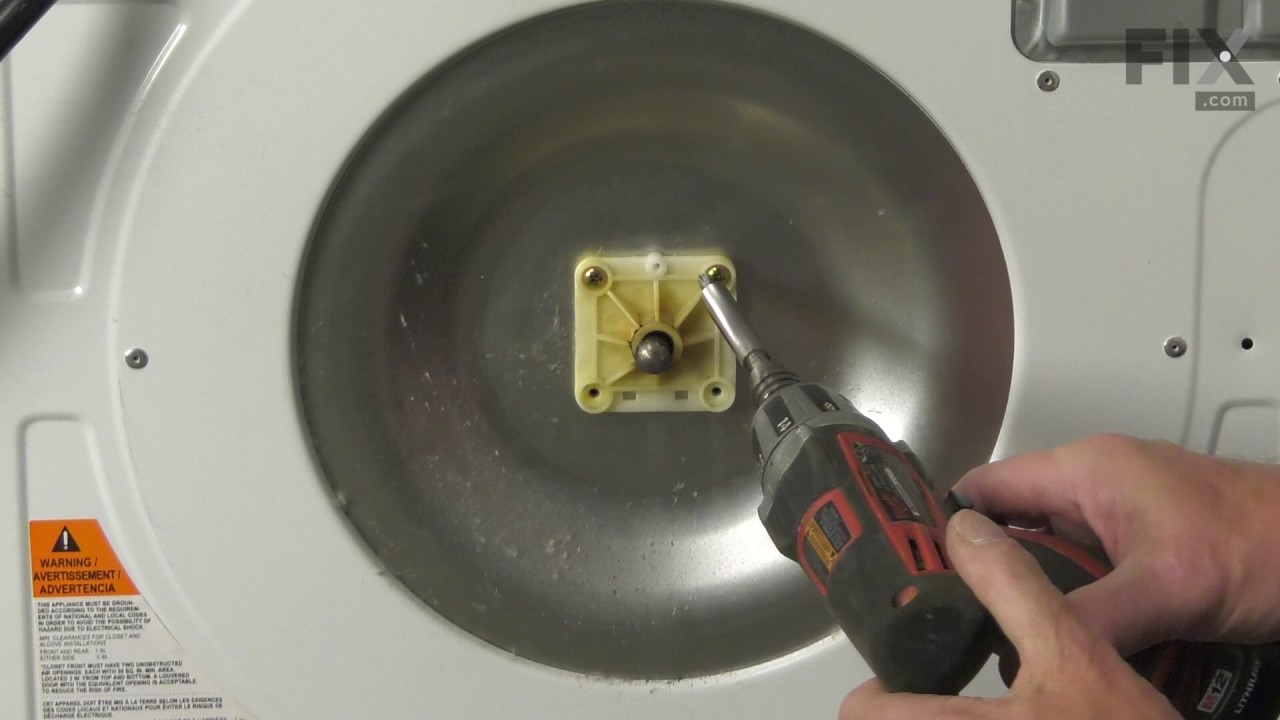

replaced plastic bushing at rear of unit. all you have to do is have acess to the rear of the dryer, no need to open dryer from front or top. squeeking noise stop but wonder how long the plastic part will last!!!! can not beleive that maytag installed such a low quality bushing. no appliance servicemen want to repair unit when noise first
... Read more
occurred. i replaced the $10 part with help moving the stacked unit down from washer. saved $150 service call.
Read less
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- gordon from indianapolis, IN
- Parts Used:
- 35001054
- Difficulty Level:
- Difficult
- Total Repair Time:
- 1- 2 hours
- Tools:
- Nutdriver, Screw drivers, Socket set
dryer made rumble noise
for this model which is only a three year old maytag elec dryer , had to take complete dryer apart to get to the blower , drum has to be removed and motor has to be removed then all put together again
Was this instruction helpful to you?
Thank you for voting!
