Water Inlet Valve with Mounting Bracket
Works With Model KAWE577BWH1!
$34.42
In Stock
Fix Number: FIX334646
Manufacturer #: 285805
Manufactured by:
Whirlpool
Works With Model KAWE577BWH1!
-
Product Description
There are many symptoms that may indicate an issue with your water inlet valve. These can include your washer not filling with water, it will not stop filling, the washer is leaking, or it is both filling and draining at the same time. You can test if your valve is faulty two different ways. The first is to disconnect the power while the washer fills, if water continues to fill the tub, then the valve should be replaced. The second way is to use a multimeter to test for continuity on the valve solenoids. If you do need to replace the water inlet valve, this is a genuine OEM part that has two ports and is compatible with half-inch ID hose. Before beginning your repair, please be sure to disconnect the power and water supply to your washing machine.
-
Works with the following brandsWhirlpool, Kenmore, KitchenAid, Roper
-
Works with the following productsWasher, Washer Dryer Combo
-
Fixes the following symptomsNo hot or cold water, Leaking
-
Part Number Cross ReferencePart# 285805 replaces these:AP3094541, 868761, 285805, 21026, 285805VP, 292197, 3349451, 3354565, 3360387, 3360388, 3360389, 3360391, 3360392, 3429537, 358992, 370067, 388328, 3952163, 3952164, 3955673 ... Show more , 8228, 99989697, W10110517 Show less
Product Description
There are many symptoms that may indicate an issue with your water inlet valve. These can include your washer not filling with water, it will not stop filling, the washer is leaking, or it is both filling and draining at the same time. You can test if your valve is faulty two different ways. The first is to disconnect the power while the washer fills, if water continues to fill the tub, then the valve should be replaced. The second way is to use a multimeter to test for continuity on the valve solenoids. If you do need to replace the water inlet valve, this is a genuine OEM part that has two ports and is compatible with half-inch ID hose. Before beginning your repair, please be sure to disconnect the power and water supply to your washing machine.
-
Works with the following brands:Whirlpool, Kenmore, KitchenAid, Roper
-
Works with the following products:Washer, Washer Dryer Combo
-
Fixes the following symptoms:No hot or cold water, Leaking
-
Part# 285805 replaces these:AP3094541, 868761, 285805, 21026, 285805VP, 292197 ... Show more , 3349451, 3354565, 3360387, 3360388, 3360389, 3360391, 3360392, 3429537, 358992, 370067, 388328, 3952163, 3952164, 3955673, 8228, 99989697, W10110517 Show less
Videos For installing this part.

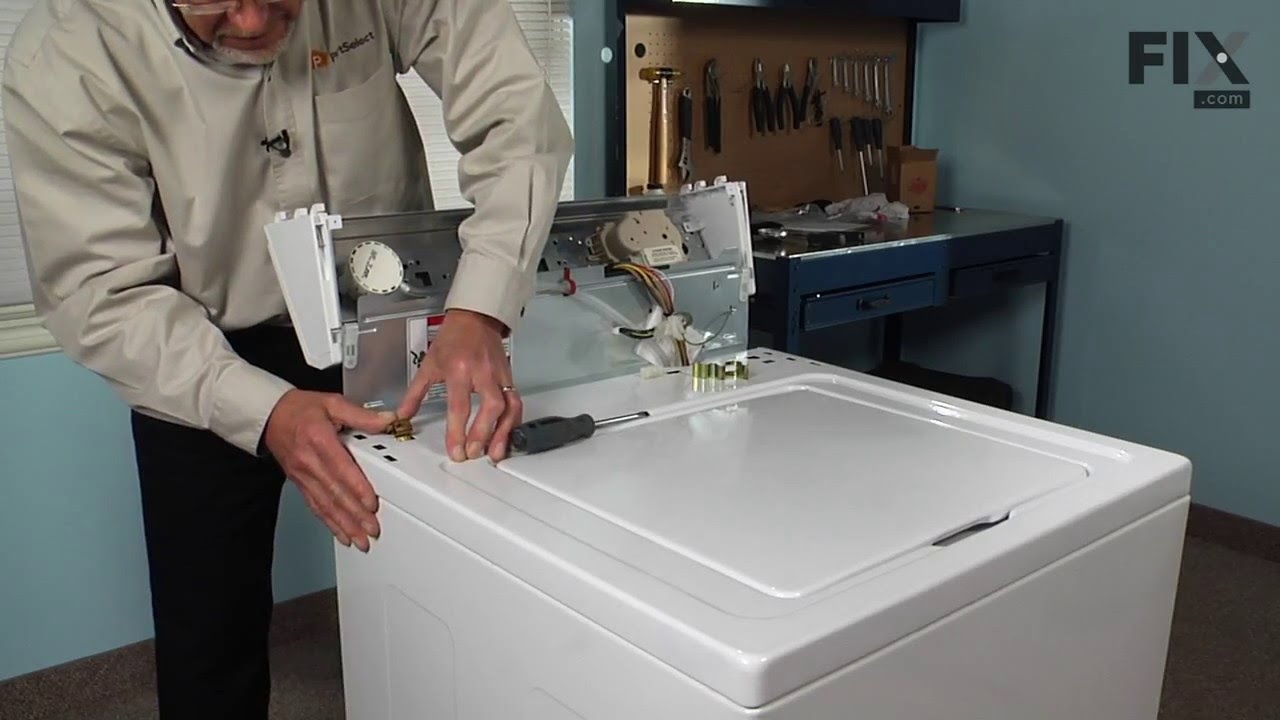

Replacing your Water Inlet Valve with Mounting Bracket
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- 2
- 3
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Carol from Shawnee, KS
-
Parts Used:285805
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers, Wrench (Adjustable)
Only a small trickle of only cold water was filling the tub
We watched the video repair and the part went on as slick as can be and bingo like magic the tub was filling very, very fast with warm, hot, cold water depending on our setting!! Oh my goodness! It was so easy and saved us from buying a new washer and it cost $15!!!! I am so excited!!! I get the was done in a tenth of the time!! Thanks for your parts and videos!!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:JOHN from JUNCTION CITY, KY
-
Parts Used:285805
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers
Washer would not stop filling.
Disconnect from power, and shut off water valves leading to washer. Disconnect hoses using a bucket to catch spillage. Remove screws (hex head) that hold control panel to washer body and back, slide forward and lift off to expose spring clips that secure back to washer. Using pliers and/or a large screw driver, release the clamps freeing the top of the back from waser body. Remove screws from bottom of back while steadying the upper portion of the back. When screws are removed lift the back up and back slightly allowing the back to come to rest on floor. Remove plastic cover from valves, then remove electrical connectors and hose. Valve assembly will snap off of back. Install new one being careful to get it snapped back in place properly. Re-attach hose and electrical connectors, re-attach back and top control panel.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Lori from Omaha, NE
-
Parts Used:285805
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set
Water dripping inside the tub after washer has completed entire wash cycle
Unplugged the washer, moved out the washer from the wall, disconnected the hoses from the washer. Unscrewed the two screws for the control panel and flipped in back, unplugged the switch, popped off the two spring clips that hold the back onto the rest of the machine with a screwdriver. Now I was able to tilt the entire front/side/top forward. I opted just to lean it on a chair and not to remove it completely because having removed it for a previous repair, I knew the cover was a little warped and difficult to get back on. The two screws on the inlet mounting bracket were very difficult to remove but after 25 years in place that's probably to be expected. Used WD-40 and a 5/16 nut driver to loosen. Removed the hose from the water inlet valve with a pliers. The new mounting bracket was a little different than the old one but worked ok using only one screw to mount it as the holes didn't line up. At this point everything went back together very easily. Tested both the hot and cold water. Seems to work fine with no more dripping. My husband says he's amazed at how well I've been able to fix our appliances! That's thanks to the company's helpful website. I will be back again.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Gregory from Washington, NC
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers
1.Hot water would not feed into washer tub. 2. Agitator stopped working.
Replaced the water control solenoid and rebuilt the agitator.Rather than describing how I did the repairs I recommend watching the videos on the website. They are very informative and easily followed. The most difficult part of the repair was reinstalling the cabinet when the repairs were complete but still a cinch if you watch the videos. An extra pair of hands is helpful to guide the cabinet into place but with patience one can do it alone. Thanks for making the job simple and saving me a service call and $$$ in labor on my 23 year old washer!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Jack from LOUISVILLE, KY
-
Parts Used:285805
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers, Wrench (Adjustable)
Washer was slow filling with water
Shut off both Hot and Cold water valves. Unplugged power cord. Removed screws from control panel. Rotated control panel back and disconnected wire plug from cabinet. Removed two spring clips from top of cabinet. Tilted cabinet back and removed it from the washer frame. Removed water hoses from the rear of washer. Unplugged electric plugs from water inlet valve. Removed water line from bottom of the water inlet valve. Used nut driver to remove water valve. Attached water line and clamp to new valve assembly. Mounted new valve on washer using supplied mounting plate. Newer washers will not need this plate. Connected electric plugs to new valve. Now just reinstall the cabinet / clips / electric cable. Screw the control panel back in place and hook up the hoses. It's not too difficult of a project and you will find an installation video on YouTube.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Joseph from Marathon, NY
-
Parts Used:285805
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Pliers, Screw drivers
Did not have cold water cycle
Went very easy !!! Followed the instructions , done in 15-20 min . Runs fine . Much better than buying a new washer. And this is a very old washer , runs great now . Received the inlet valve within two days. Thanks
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Mary from Pasadena, MD
-
Parts Used:285805
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Screw drivers, Wrench (Adjustable), Wrench set
Water would not stop runnung
The most difficult part of the repair was getting the part out to replace. It was a cinch to change once we got the piece out of the rear of the machine.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Samir from Houston, TX
-
Parts Used:285805
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers
No Hot/cold water
Replaced the water inlet valve by using installation instructions.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Joel from Apache Junction, AZ
-
Parts Used:285805
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers
Water continuously running into machine
Just asked for:: water solenoid valve........Your service was fast, efficient, operator friendly. told me where to look for the machine model number.....thanks...neat site, Your follow up is to be commended.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:carol from virginia beach, VA
-
Parts Used:285805
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Pliers, Wrench (Adjustable)
Squealing noise when water was coming in
Followed the great video.putting it back together was easier than disassembly. Seems to be working great. Thanx
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- 2
- 3
- Next >
★
Customer Reviews
Filter By Rating:
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Nathanael H - March 1, 2022
Verified Purchase
high quality and correct ??
I highly recommend Fix.com for appliance parts and repair! I needed a couple of parts for an old used washer and everything I've ordered was correct and shipped fast. Thank you Fix.com and associates for y'all's service's! ????
Matthew D - February 13, 2021
Verified Purchase
Perfect fit
Fixed my issue of hot water not running through to my washer. Perfect fitment.
- < Prev
- 1
- Next >
Model Compatibility
This part works with the following models:
Fix Number: FIX334646
Manufacturer Part Number: 285805
Manufacturer Part Number: 285805
Brand
Model Number
Description
Kenmore
10682872600
Washer
- Kenmore Washing Machine Model 106.82872600 (10682872600, 106 82872600) Parts
Kenmore
1101050299
Washer
- Kenmore Washing Machine Model 110.1050299 (1101050299, 110 1050299) Parts
