OEM Maytag Washer Triple Lip Seal and Bearing Kit [W10116791] | Ships Today | Fix.com

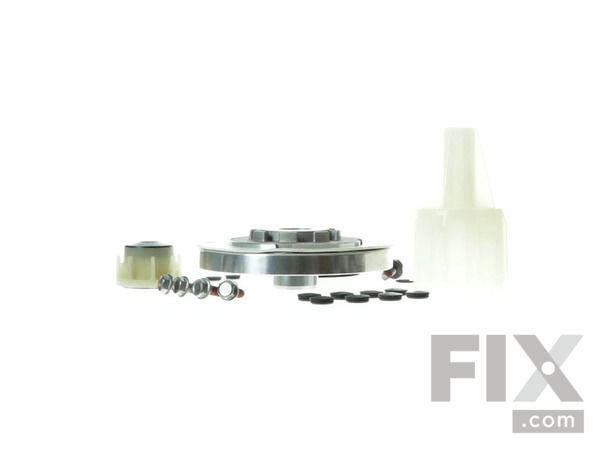

Triple Lip Seal and Bearing Kit – Part Number: W10116791
Triple Lip Seal and Bearing Kit – Part Number: W10116791 Triple Lip Seal and Bearing Kit – Part Number: W10116791 Triple Lip Seal and Bearing Kit – Part Number: W10116791 https://fixcom.azureedge.net/Schematics/Maytag/54683.gif

Triple Lip Seal and Bearing Kit

Your Price
$148.01

Fix Number: FIX2177502

Manufacturer #: W10116791

Manufactured by: Whirlpool

Get this part fast. Average delivery time via standard shipping: 1.8 days.

Part description

Please check your model# to verify this is correct for your appliance.

Works with the following brands

Maytag, Amana, Crosley

Works with the following products

Washer

Fixes the following symptoms

Leaking | Noisy

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.2 / 5.0, 3 reviews
Customer:
Harold from concord, CA
Parts Used:
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
Very loude bearing failure. Sounded like a frait train. Minor water leak
I did not have any of the special tools listed in the instructions that came with the kit. But with some improvizing I was able to get the parts off and back on. I am a bit of a handy man so this was not too difficult. I think there is a design problem on this machine since water has gotten into the bearing and twice now. The first time was when the machine was 1 year old, now 8 years later I had to do this job again. It is about a 3 hour job if you have all the parts on hand. The instructions in the kit are sufficent to do the job.
5 of 5 people found these instructions helpful

Were these instructions helpful?

Customer:
Leonard from Wyoming, MI
Parts Used:
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Screw drivers, Socket set
Leaking main seal, spin cycle sounded like freight train, brakes worn causing drive belt to burn up
Took pictures and basically followed good instructions that came with the seal and bearing kit to disassemble, install the parts and reassemble. The balance springs were difficult without proper tool but a coat hanger bent in a triangle worked to pull them off. Instructions said to use a sealant if bearing mount area (plastic) was gouged. It had some pitting but I didn't use any sealant because the bearing didn't seem loose once mounted. I used a jar or wooden cylinder to push out the old bearing/seal since I didn't have the right tool. It took a while but finally came out. The seals came with some lubrication on them - I'm hoping it was enough. So far so good. I probably didn't need to change the upper/lower bearing but for peace of mind I did. The brake pad problem was discovered earlier. A hired repair guy came out and said we would be better off buying a new washer because he said the transmission was bad causing drive belts to burn up. I found out that the brake pads were worn enough to cause the cams not to extend fully. I simply reversed the old brake pads and the machine had been working for the last six months. I thought I might as well replace them while the machine was apart for the bearing/seal replacement.
1 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Eddie from Mount Orab, OH
Parts Used:
  • Triple Lip Seal and Bearing Kit
Difficulty Level:
Easy
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Making noise on spin cycle, leaking water.
not to bad for diy. Info on washer. It has a bullet proof trans, so it's worth repairing. Soak main spindle plate.with wd-40. Clean threads as much as possible with wire brush before even trying to remove. Remove foam gasket, new one in kit. Use a little heat to free up. Then used punch or spanner wrench and hammer to loosen. Once it's free, it's all down hill then. Great service and timely delivery on parts. Perfect fit. Good for several more years of use.
1 of 1 people found these instructions helpful

Were these instructions helpful?

Model Cross Reference

This part works with the following models:

Fix Number: FIX2177502
Manufacturer Part Number: W10116791
Brand
Model Number
Description
Amana
ALW210RAW
Washer - Residential
Amana
ALW210RMC
Washer - Residential
Amana
ALW432RAW
Washer - Residential
Amana
ALW480DAC
Washer - Residential
Amana
ALW480DAW
Washer - Residential
Amana
ALW540RAC
Washer - Residential
Amana
ALW540RAW
Washer - Residential
Amana
ALW540RMC
Washer - Residential
Amana
ALW540RMW
Washer - Residential
Amana
ALW880QAC
Washer - Residential
Amana
ALW880QAW
Washer - Residential
Amana
ALW895SAC
Washer - Residential
Amana
ALW895SAW
Washer - Residential
Crosley
CW9500W
Washer - Residential
Amana
DLW330RAW
Washer - Residential
Amana
NAV2330AWW
Washer - Residential
Amana
NAV3330AWW
Washer - Residential
Amana
NAV3330EWW
Washer - Residential
Amana
NAV5800AWW
Washer - Residential
Amana
NAV6800AWW
Washer - Residential
Amana
NAV8800AWW
Washer - Residential
Amana
NAV8800EWW
Washer - Residential
Maytag
SAV205DAWW
Washer - Residential
Maytag
SAV2555AWW
Washer - Residential
Maytag
SAV2655AWW
Washer - Residential
Maytag
SAV3655AWW
Washer - Residential
Maytag
SAV365AAWW
Washer - Residential
Maytag
SAV365ZAWW
Washer - Residential
Maytag
SAV3710AWW
Washer - Residential
Maytag
SAV405DAWW
Washer - Residential
