Water Inlet Valve - Cold

Rated by 10 customers

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

$60.17

Fix Number: FIX11728995

Manufacturer #: 5220FR2075L

Manufactured by: LG

Product Description

If your washing machine is leaking, slow to fill, will not stop filling with water, or is not filling at all, the cold-water inlet valve may be defective. The purpose of the valve is to open to allow water into the washer, and is used for cold water, liquid bleach, and prewash cycles in your washing machine. This is a genuine OEM replacement part that measures approximately 4 inches long and 3 inches wide. It has a standard hose fitting inlet along with two outlets facing 45 degrees to the right and one outlet facing 45 degrees to the left. When replacing this part, you will want to disconnect the power and water to your washer and remove the fill hoses. You will need to pull the machine out far enough so that you are able to access the back panel where the valves are located.
Works with the following brands

LG, Kenmore
Works with the following products
Washer, Washer Dryer Combo
Fixes the following symptoms

Leaking, Does not dispense fabric softener or detergent
Part Number Cross Reference

Part# 5220FR2075L replaces these:

AP5986564, 5221ER1003A, 5221ER1003C, 5221ER1003D

1 Installation Video

1 Related Part 2 Questions and Answers

10 Installation Instructions Model Compatibility

Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

If your washing machine is leaking, slow to fill, will not stop filling with water, or is not filling at all, the cold-water inlet valve may be defective. The purpose of the valve is to open to allow water into the washer, and is used for cold water, liquid bleach, and prewash cycles in your washing machine. This is a genuine OEM replacement part that measures approximately 4 inches long and 3 inches wide. It has a standard hose fitting inlet along with two outlets facing 45 degrees to the right and one outlet facing 45 degrees to the left. When replacing this part, you will want to disconnect the power and water to your washer and remove the fill hoses. You will need to pull the machine out far enough so that you are able to access the back panel where the valves are located.

Works with the following brands:

LG, Kenmore
Works with the following products:
Washer, Washer Dryer Combo
Fixes the following symptoms:

Leaking, Does not dispense fabric softener or detergent
Part# 5220FR2075L replaces these:

AP5986564, 5221ER1003A, 5221ER1003C, 5221ER1003D

Videos For installing this part.

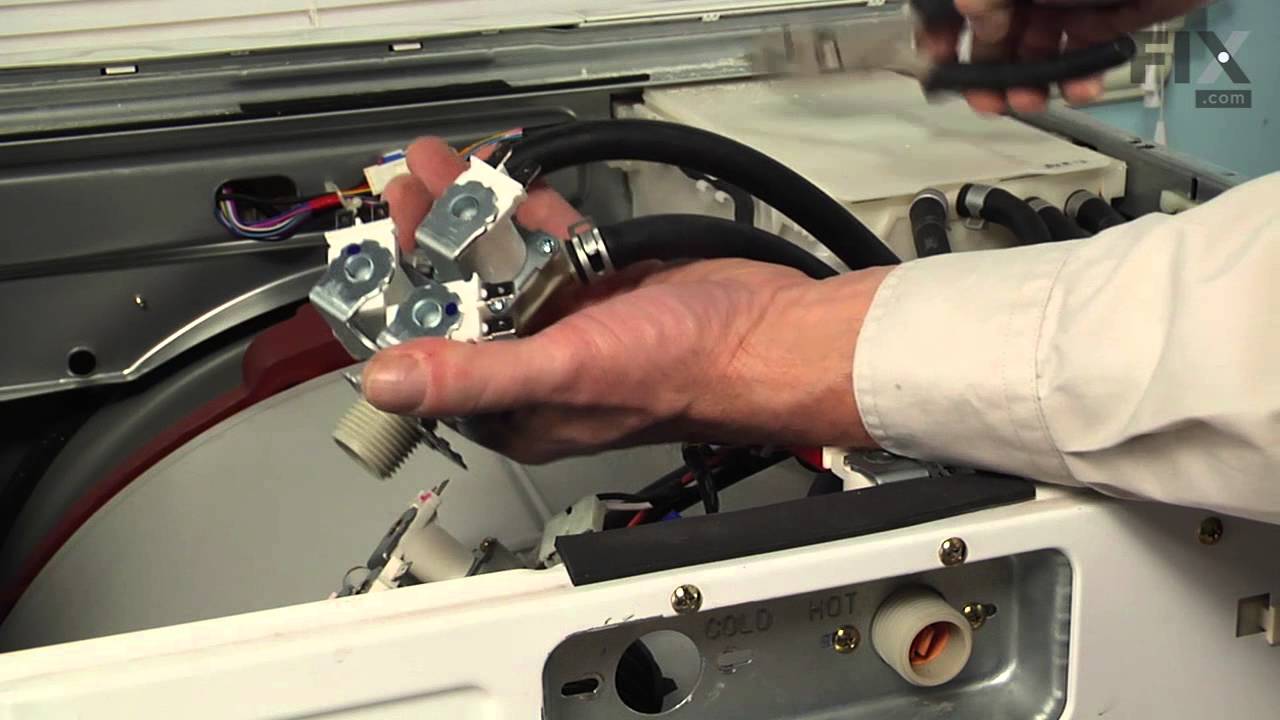

Replacing your Water Inlet Valve - Cold

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

2 questions answered by our experts.

< Prev
1
Next >

Sort by:

Javier

February 11, 2022

I replaced this cold water inlet valve and I am afraid I might have mixed up the pre wash and main wash hoses. I know 100% that the hose marked 'bleach' goes in the right most port, but what are the order of the other 2? Is main wash suppose to be the center port on the inlet valve?

Hi Javier, Thank you for your question. We have included a link to one of our YouTube videos that you may reference on how to install the water inlet valve. The washer in the video may appear different from yours, but it will give you a general idea on how to install the valve and the hoses. If you have any questions, please let us know. We are open 7 days a week. We look forward to hearing from you!

3 people found this helpful.

Was this helpful?

Jack

September 27, 2021

My LG washer 3 years old left fabric dispenser filled with water. Technician said we needed this part. We bought part and error codes fa and ie came on along with the area being flooded overnight. He tells me it was a defective part and not him that allowed the water to continuously run. Your thoughts would be appreciated.

For model number WM3670HWA

Hello Jack, Thank you for the question. If the water continues to fill even when the appliance is not in use, normally indicates the Valve is defective. The Valve can be tested as well. Set your multitester to the R X 1 ohms setting to test for continuity. Place each of the multitester's leads on a terminal. Your multitester should display a reading between 200 and 500 ohms. Closely examine your water inlet valve. The exact ohm resistance rating you should test for may be marked on the valve. We hope this helps!

Was this helpful?

Related Parts:

Water Inlet Valve - Hot

$22.25

< Prev
1
Next >

Related PartsAdditional or alternate parts to consider.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.6 / 5.0, 10 reviews.

< Prev
1
Next >

Sort by:

Customer:

Frederick from Kennesaw, GA
Parts Used:
5220FR2075L, 5220FR2006H
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Wrench (Adjustable)

Washer was leaking at the bottom

I actually looked on you tube for the type of washer and the issue. I checked all the areas the various videos showed me. The last one I checked was the inlet valves. All that is needed is a Phillips head and a wrench. Took the top off. Unplugged the washer. Unplugged the hoses. Unscrewed the valves and removed the hoses and the circuit pieces. Replaced one at a time. Everything worked perfect. Hooked hoses back up. No more leaks. Attached the top back and pushed back into place. No more leaking.

5 of 5 people found this instruction helpful.
