Bellow to Outer Tub Clamp
Works With Model KHWS01PMT2!
$37.11
In Stock
Fix Number: FIX11744959
Manufacturer #: WP8182210
Manufactured by:
Whirlpool
Works With Model KHWS01PMT2!
-
Product Description
Used to help hold your bellow in place on your washer.
-
Works with the following brandsKenmore, Whirlpool, Maytag, KitchenAid
-
Works with the following productsWasher
-
Fixes the following symptomsLeaking
-
Part Number Cross ReferencePart# WP8182210 replaces these:AP6011760, 8181663, 8182210, W10100790
Product Description
Used to help hold your bellow in place on your washer.
-
Works with the following brands:Kenmore, Whirlpool, Maytag, KitchenAid
-
Works with the following products:Washer
-
Fixes the following symptoms:Leaking
-
Part# WP8182210 replaces these:AP6011760, 8181663, 8182210, W10100790
Videos For installing this part.

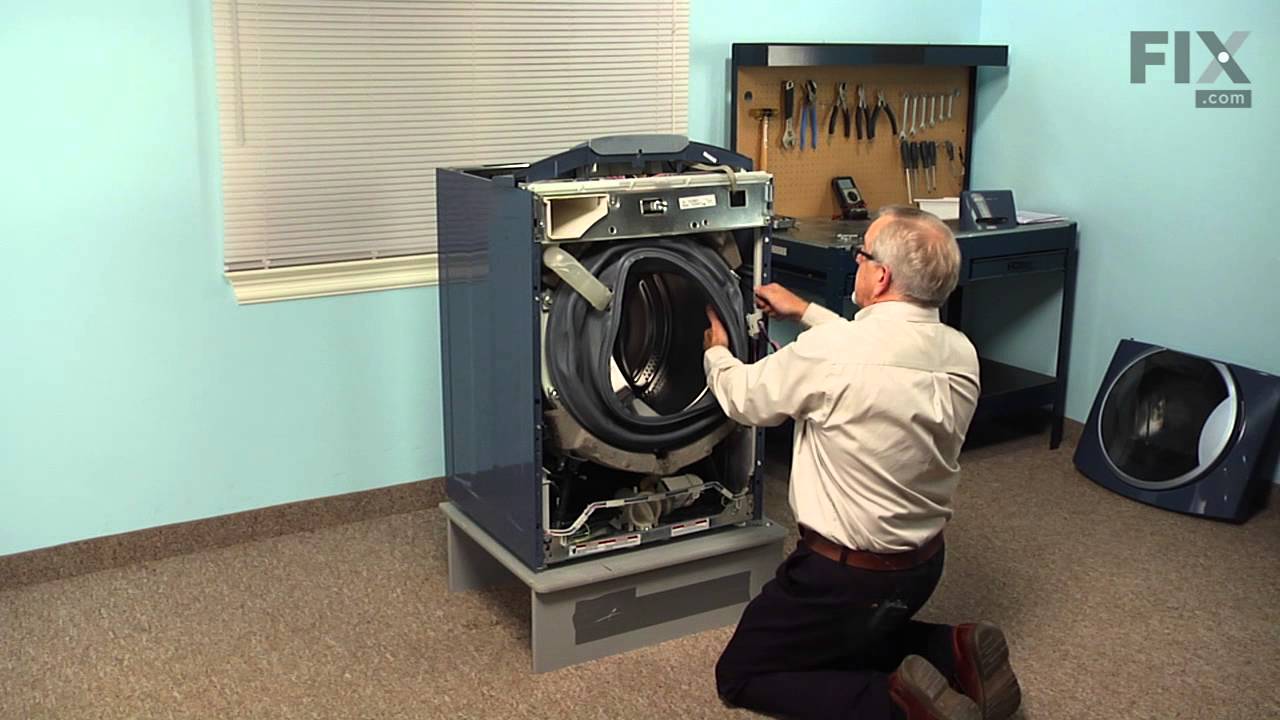

Replacing your Bellow to Outer Tub Clamp

Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Related PartsAdditional or alternate parts to consider.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Steve from Oak Ridge, TN
-
Difficulty Level:Difficult
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set
Replaced Outside Rubber Bellows
Rubber bellows was approximately 8-9 years old with lots and lots of mold on the outside and more inside where water drains out. Removing all the necessary parts to remove and install the replacement bellows was not difficult. The most difficult step was replacing the bellow to outer tube clamp. It is spring loaded and virtually impossible for one person to replace. Holding the bellow in place while trying to stretch the spring clamp is frustrating. I am sure, at the factory they have specialized tools that allows assembly of the clamp instantly. The do-it-yourselfer is in trouble unless a second person is available to help. In order to get the spring clamp installed around the outside of the bellow, it was necessary to undo the spring from the clamp and then place the loose clamp around the bellows. Have one person hold the end of the clamp with pliers while the other person stretches the spring to connect to the loop in the clamp. It took quite a bit of strength and several tries to complete. Other than that, not a difficult job.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Cameron from Edmonds, WA
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
Unpleasant odor.
Followed the directions in the video. Most of the time was spent cleaning the related parts
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- Next >
Model Compatibility
This part works with the following models:
Fix Number: FIX11744959
Manufacturer Part Number: WP8182210
Manufacturer Part Number: WP8182210
Brand
Model Number
Description
