Part Location Diagram of WH2X1193 GE Hub Nut
See part 325 in the diagram
Replacing your General Electric Washer Hub Nut
( Grid squares measure 1x1 inch )

Hub Nut WH2X1193

Works With Model HTWP1400F1WW!

Rated by 2 customers

?

Really Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

?
$21.95
In Stock
Fix Number:
FIX271505
Manufacturer #:
WH2X1193
Manufactured by:
GE
Works With Model HTWP1400F1WW!

Product Description

This part is the hub nut, or lock down nut for your washing machine. It is designed to hold the inner tub on to the transmission. If your hub nut is stripped or damaged, it may need to be replaced. This hub nut is approximately 1.5 inches in diameter. This is an OEM part sourced directly from the manufacturer. You will need a hub nut wrench and some WD40 to loosen the nut and remove it from the agitator shaft.

Videos For installing this part.

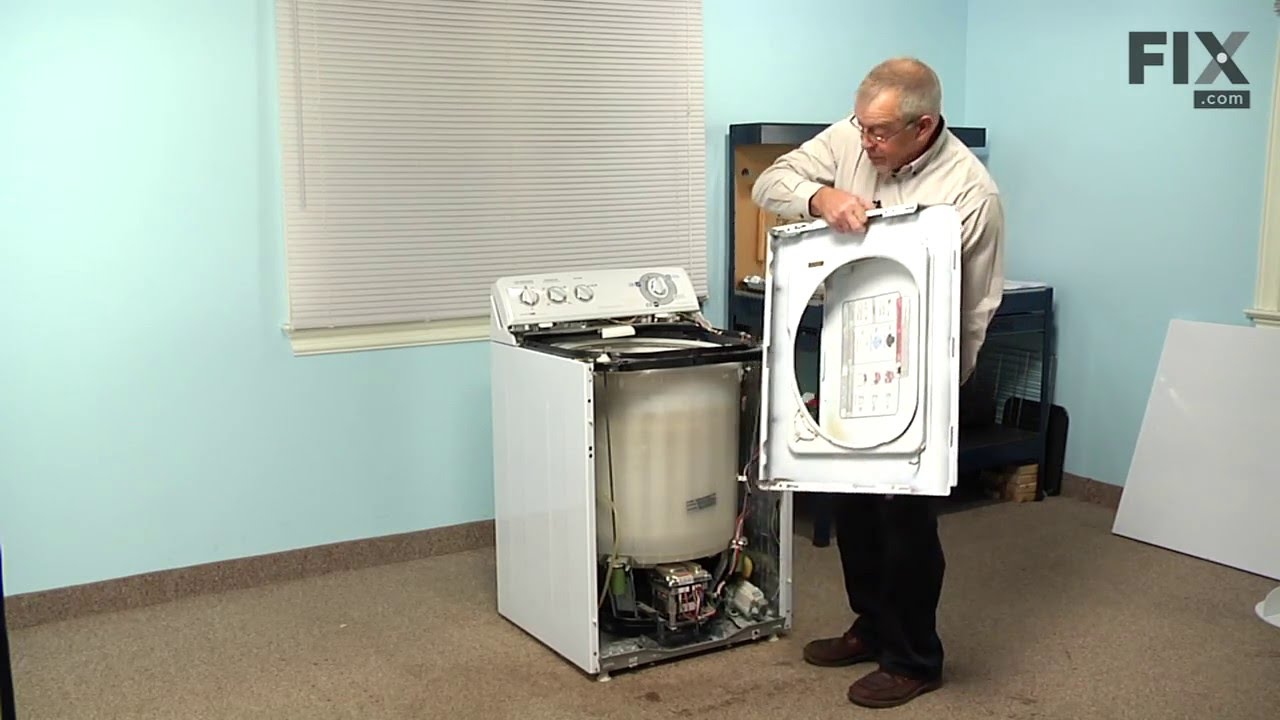

Replacing your Hub Nut

Replacing your Hub Nut

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Damon
March 4, 2022
Where can I get a wrench to fit the hub nut? 1 11/16" size?
For model number WSSE4220AOWW
Fix.com logo
Hi Damon, Thank you for your question. We can provide you with the hub nut wrench. The part number listed under your model number for the hub nut wrench is FIX311934. If you need help placing an order for it, customer service is open 7 days a week and anyone will be happy to assist you. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
Related Parts:
View More View Less
Tub Seal
$16.71
In Stock
Tub Bearing
$27.50
In Stock
Tub Bearing Washer
$9.96
In Stock
Split Ring
$14.40
In Stock
Inner Tub Base Hub
$90.68
In Stock
Hub Washer
$9.19
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.0 / 5.0, 2 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Carol from Pitman, PA
Parts Used:
WH45X20473, WH02X10383, WH02X10284, WH02X10265, WH2X1198, WH2X1193
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Socket set
Washer tub seal leak and mode shifter noisy
Disconnect power and water supply hoses, remove back cover and control panel, remove lid switch, then lid. Unsnapped top ring on tub assembly, disconnect pressure tube, disconnect motor control wires, twist and remove center fabric softener cup, removed hex bolt underneath, then removed agitator and drive hub. Used 1 11/16" 3/4 drive sock et with extensions and breaker bar. Used sledge hammer on bar to knock loose left-hand thread aluminum tub nut(quite difficult on a 6 year old washer). Lift stainless tub out and removed split ring and old seal. Tip out plastic tub assembly and turn upside down to remove drive belt, and pulley. Removed all hardware connecting drive assembly to plastic tub and installed new parts. TIP: install tub seal after mode shifter is installed and do not use any gasket sealer or lube as seal will want to push back out. Old tub assembly was replaced due to elongated and cracked tub seal seat.
2 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Allan from Urbana, OH
Parts Used:
WH02X10283, WH2X1193
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Loud Grinding noise when in wash cycle
Replace Transmission
0 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX271505
Manufacturer Part Number: WH2X1193
Brand
Model Number
Description
General Electric
51451Y1WW
Washer
General Electric
51451Y2WW
Washer
General Electric
52120TAWB
Washer
General Electric
56021A0WW
Washer
General Electric
56031A0WW
Washer
General Electric
56041A0WW
Washer
General Electric
56051A0WW
Washer
General Electric
56121T2WW
Washer
General Electric
56121T3WW
Washer
General Electric
56121T4WW
Washer
General Electric
56121T5WW
Washer
General Electric
56121T8WW
Washer
General Electric
56121TAWW
Washer
General Electric
56121TBWW
Washer
General Electric
56200T2WB
Washer
General Electric
56200T3WB
Washer
General Electric
56200T5WB
Washer
General Electric
56220T6WW
Washer
General Electric
56220T8WW
Washer
General Electric
56220TAWW
Washer
General Electric
56220TBWW
Washer
General Electric
56221B0WW
Washer
General Electric
56221B1WW
Washer
General Electric
56221B2WW
Washer
General Electric
56221B3WW
Washer
General Electric
56221T6WW
Washer
General Electric
56231B0WW
Washer
General Electric
56231B1WW
Washer
General Electric
56231B2WW
Washer
General Electric
56231B3WW
Washer
