Watch the install video
270803-1-M-GE-WH1X2026 -V-Style Drive Belt
Part Location Diagram of WH1X2026 GE V-Style Drive Belt
See part 603 in the diagram
Replacing your General Electric Washer V-Style Drive Belt
270803-1-S-GE-WH1X2026 -V-Style Drive Belt 360 view
( Grid squares measure 1x1 inch )
270803-1-S-GE-WH1X2026 -V-Style Drive Belt 270803-2-S-GE-WH1X2026 -V-Style Drive Belt 270803-1-S-GE-WH1X2026 -V-Style Drive Belt 360 view
Part Location Diagram of WH1X2026 GE V-Style Drive Belt Replacing your General Electric Washer V-Style Drive Belt

V-Style Drive Belt WH1X2026

Rated by 6 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$14.09
In Stock
Fix Number:
FIX270803
Manufacturer #:
WH1X2026
Manufactured by:
GE
Works with the following brands:
General Electric, Hotpoint
Works with the following products
Washer
Fixes the following symptoms
Will not agitate, Burning smell, Spins slowly, Will not drain
Part Number Cross Reference
Part# WH1X2026 replaces these:
AP2044592, 3481, WH01X1249, WH01X2026, WH1X1249, WH1X2026-, WH1X2026., WH1X2026R
1 Installation Video 6 Related Parts 2 Questions and Answers 6 Installation Instructions Model Compatibility
Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

  • Works with the following brands:
    General Electric, Hotpoint
  • Works with the following products:
    Washer
  • Fixes the following symptoms:
    Will not agitate, Burning smell, Spins slowly, Will not drain
  • Part# WH1X2026 replaces these:
    AP2044592, 3481, WH01X1249, WH01X2026, WH1X1249, WH1X2026- , WH1X2026., WH1X2026R Show less

Videos For installing this part.

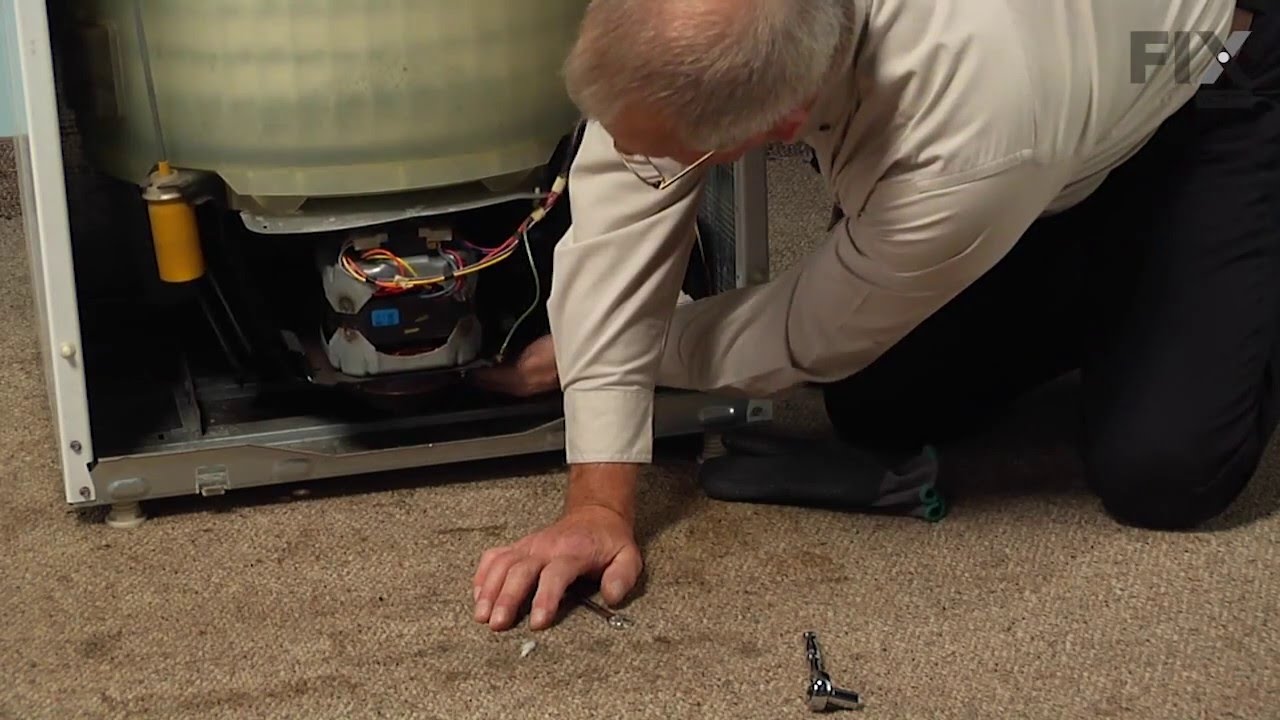

Replacing your V-Style Drive Belt

Replacing your V-Style Drive Belt

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

2 questions answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Carol
October 11, 2021
Does the part fit top loading stackable washer and does it have the pulley tool? I also need dryer door handle as clips that hold in place broke off
For model number GTUN275EM1WW serie:AD0084782
Fix.com logo
Hello Carol, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Fix Number: FIX1766009 for the Belt. We are not showing a Pulley Tool required when replacing the Belt. We suggest watching the How to Video on replacing the Belt. The Door Handle is only sold as part of the Door its self, Fix Number: FIX3499683. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
Related Parts:
Door - White
$482.66
In Stock
Drive Belt
$36.10
In Stock
Cynthia
February 8, 2022
Is this the only belt on washer
For model number GTWP2000M0WW
Fix.com logo
Hello Cynthia, Thank you for contacting us. We have researched the model you have provided and have found the only belt required for this model is the Fix Number: FIX270803. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Part Number: FIX1960673
This front load washer cleaner removes odor-causing residue. Use it once a month and it will keep your machine fresh and clean. Package comes with 3 tablets.
Produce Preserver Filter
$21.50
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Cooktop Cleaning Cream
$15.57
In Stock
Part Number: FIX12717774
Make your cooktop shine with Frigidaire ReadyClean Glass and Ceramic Cleaner. Our scratch-free, streak-free formula removes smudges, grease, burnt-on food, dirt and oil, while protecting and polishing to repel dust and d...
Cooktop Cleaner
$17.74
In Stock
Part Number: FIX3492527
Sold individually.
Affresh Cleaner
$19.09
In Stock
Part Number: FIX2367638
There are 6 tablets in each package and it is suggested to use every month. These keep the dishwasher fresh by dissolving and removing odor.
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Part Number: FIX1960673
Produce Preserver Filter
$21.50
In Stock
Part Number: FIX3503014
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Part Number: FIX12345667
Cooktop Cleaning Cream
$15.57
In Stock
Part Number: FIX12717774
Cooktop Cleaner
$17.74
In Stock
Part Number: FIX3492527
Affresh Cleaner
$19.09
In Stock
Part Number: FIX2367638

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.0 / 5.0, 6 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Todd from Columbus, OH
Parts Used:
WH5X256, WH1X2026
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Washer would agitate but not spin
I figured it was the clutch since the washer would agitate so it wasn't the switch. New clutch and belt was delivered by parts elect in 4 days. Amazing! If you're doing this job always replace the belt even if the old one looks good. The four screws holding the motor were not very tight so maybe that's why the clutch broke. I remove d those nuts and then the belt. Had to puzzle the motor out. First tilt back then out. I don't see how you could remove the clutch without taking out the motor assembly. I trashed the retaining clip removing it but the new clutch came with one so no worries. I used a crowbar to gently pursade the clutch off the spindle. Cleaned up the slightly rusted spindle with some 600 grit paper. Gave it a little waterproof grease and slid the clutch on then the retaining clip. Puzzled the motor back in and used the crowbar for a little leverage to tighten the belt then tightened those four screws. I will check those screws in a few weeks. Pretty easy. Although the wife wanted a new front loader, this cheap fix should last many years. One fault in this washer is that water splashes a bit inside while agitating. No way to stop that so it is doomed to rust internally eventually. I was very impressed with parts elect website in diagnosing the problem.
Read less
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Alan from Tamarac, FL
Parts Used:
WH1X2026
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Socket set, Wrench set
Washer would not spin with heavy load
I first investigated the problem on the website. Indications were it was possibly the V-Belt. I watched the video to see how hard it would be to change the belt. The video was excellent and very instructive. I purchased the belt and it arrived very quickly. I followed the video instructions and replaced the belt with a little difficulty. The belt was A-OK but unfortunately the machine was still DOA with heavy loads. Even though my problem did not work out, I would highly recommend your website for the Saturday mechanics. (Bought another GE washer)
Read less
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Ben from VALLEJO, CA
Parts Used:
WH1X2026
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
noisy washer
everything you need to know is to watch the installation video.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Steven from Taylors, SC
Parts Used:
WH1X2026
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Wrench set
I started to smell Burning Rubber
I unplugged the machine then popped off the front panel with a putty knife. I used a 3/8 wrench to loosen 4 bolts under the motor then slid the motor back and removed the old belt. Put on the new belt slid the motor forward with tension and tighten the 2 back bolts then tighten the 2 front bolts. Check tension then replaced front panel pl ugged up the machine and now good as new.
Read less
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
joseph from pitcairn, PA
Parts Used:
WH1X2026
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Wrench set
bad belt
replace belt
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Edgardo L. from Hartford, CT
Parts Used:
WH1X2733, WH1X2026
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set, Wrench set
Retaining clip for the clutch broke and drive belt was worn.
Remove the front panel and found the retaining clip for the clutch was broke and the belt was worn. Loose the four bolts from the motor, push the motor back and took off the belt out. install the retaining clip for the clutch put the belt and push the motor back to the front and tight the four bolts and that was all folks, easy. Thank you for your service.
Read less
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX270803
Manufacturer Part Number: WH1X2026
Brand
Model Number
Description
General Electric
51140119
Washer
General Electric
51148119
Washer
General Electric
51451Y1WW
Washer
General Electric
51451Y2WW
Washer
General Electric
52120TAWB
Washer
General Electric
52140119
Washer
General Electric
52148119
Washer
General Electric
52170128
Washer
General Electric
52178128
Washer
General Electric
52190116
Washer
General Electric
52190117
Washer
General Electric
52190118
Washer
General Electric
52190119
Washer
General Electric
52190129
Washer
General Electric
52198116
Washer
General Electric
52198117
Washer
General Electric
52198118
Washer
General Electric
52198119
Washer
General Electric
52198129
Washer
General Electric
53040116
Washer
General Electric
53040117
Washer
General Electric
53040118
Washer
General Electric
53040119
Washer
General Electric
53040129
Washer
General Electric
53048116
Washer
General Electric
53048117
Washer
General Electric
53048118
Washer
General Electric
53048129
Washer
General Electric
53050119
Washer
General Electric
53150119
Washer
