Part Location Diagram of WH16X513 GE Drain Hose Clip
See part 834 in the diagram
Replacing your General Electric Washer Drain Hose Clip
( Grid squares measure 1x1 inch )

Drain Hose Clip WH16X513

Rated by 4 customers

?

Very Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

?
$9.00
In Stock
Fix Number:
FIX270508
Manufacturer #:
WH16X513
Manufactured by:
GE

Product Description

This clip holds the drain hose to the back of the washer.

Videos For installing this part.

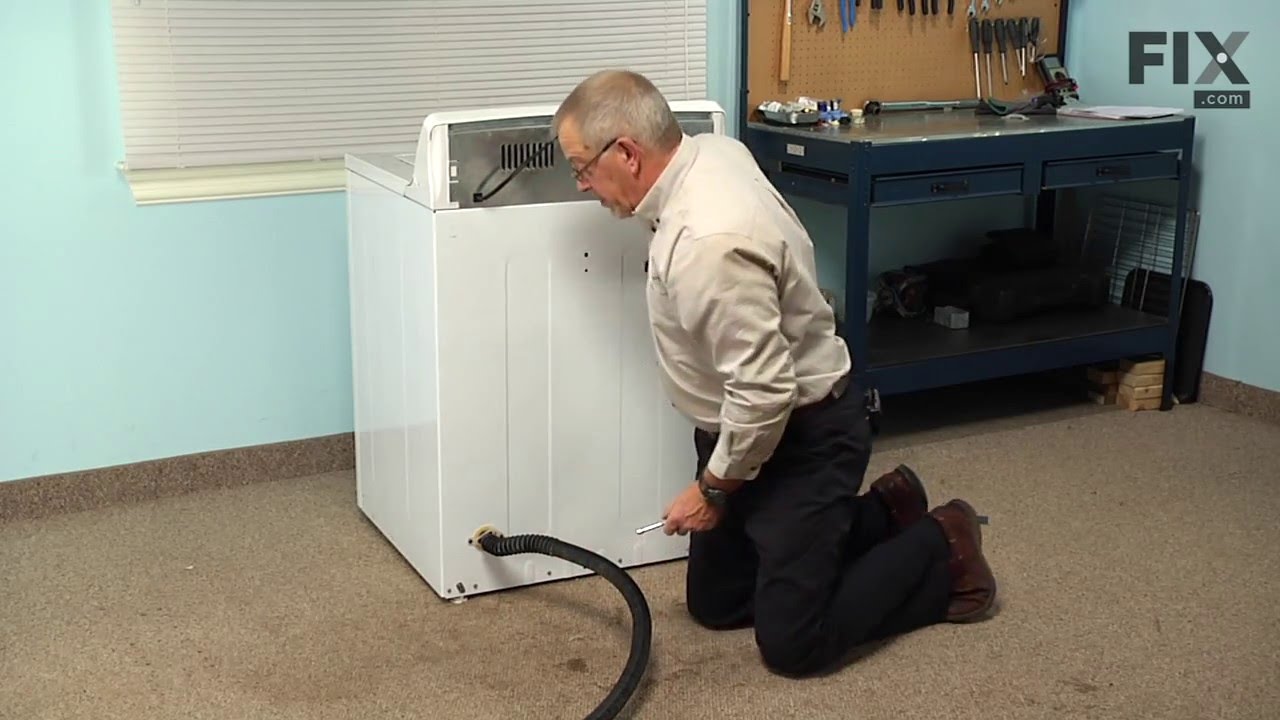

Replacing your Drain Hose Clip

Replacing your Drain Hose Clip

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

View More View Less
Drain Hose
$27.06
In Stock
Screw - Black
$8.06
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.9 / 5.0, 4 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Jill from East Falmouth, MA
Parts Used:
WH41X10096, WH16X513
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
drain hose had sprung a leak
Simply unscrewed the hose clip, swapped out the damaged hose and then screwed the hose clip back in place. Easy fix and the part came in 2 days. Much better than the $150 estimate that I was given by an appliance repair man.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
John from Riverview, FL
Parts Used:
WH41X10096, WH16X513
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
Mouse chewed thru old drian
Used a socket to undo the screws and pulled out old drain hose and drain clip. Put new drain clip on new drain hose. reinserted screws and done
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Gary from Marion, IL
Parts Used:
WH41X10096, WH16X513
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
Drain hose split and leaking
Removed two sheet metal screws 1/4" heads. Pulled out the old hose and drain hose clip. Installed new drain hose clip on new hose, pushed hose into place, Screwed into place. Took longer to pull the dryer away from and back to the wall then it did to do the repair.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Ronald from Flemington, NJ
Parts Used:
WH41X10096, WH16X513
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Water leaking from hose extension
Unplugged the electric cord. Turned off the water to the 2 hoses. Pulled washer away from the wall about 2 feet so could get close to it and yet not too far so the extension hose could reach to the water outlet pipe. Placed a towel on floor under the washer. Used screwdriver to unscrew the 2 screws that connected the hose clip to the w asher. Slowly pulled on the extension to take it out of the washer. There was more water than I expected so make sure your towel is well placed and large enough. Before doing that I took a picture of the existing hose clip so I knew its proper direction since its not a uniform shape. Placed the hose clip on the new extension. Dried out the inside of the washer hole which removed some dirt. Inserted new extension into hole and screwed it back on. Took the other end of the extension and placed it into drainage pipe. Held extension in pipe and drilled small hole into it. Then secured the extension and the pipe with a screw. Turned everything back on and did a very small rinse cycle to be sure that nothing was leaking anywhere. Wall-ah it worked!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
