12004487-1-M-Black and Decker-90567077-Lever Assembly
Part Location Diagram of 90567077 Black and Decker Lever Assembly
See part 36 in the diagram
12004487-1-S-Black and Decker-90567077-Lever Assembly 360 view
( Grid squares measure 1x1 inch )
12004487-1-S-Black and Decker-90567077-Lever Assembly 12004487-1-S-Black and Decker-90567077-Lever Assembly 360 view
Part Location Diagram of 90567077 Black and Decker Lever Assembly

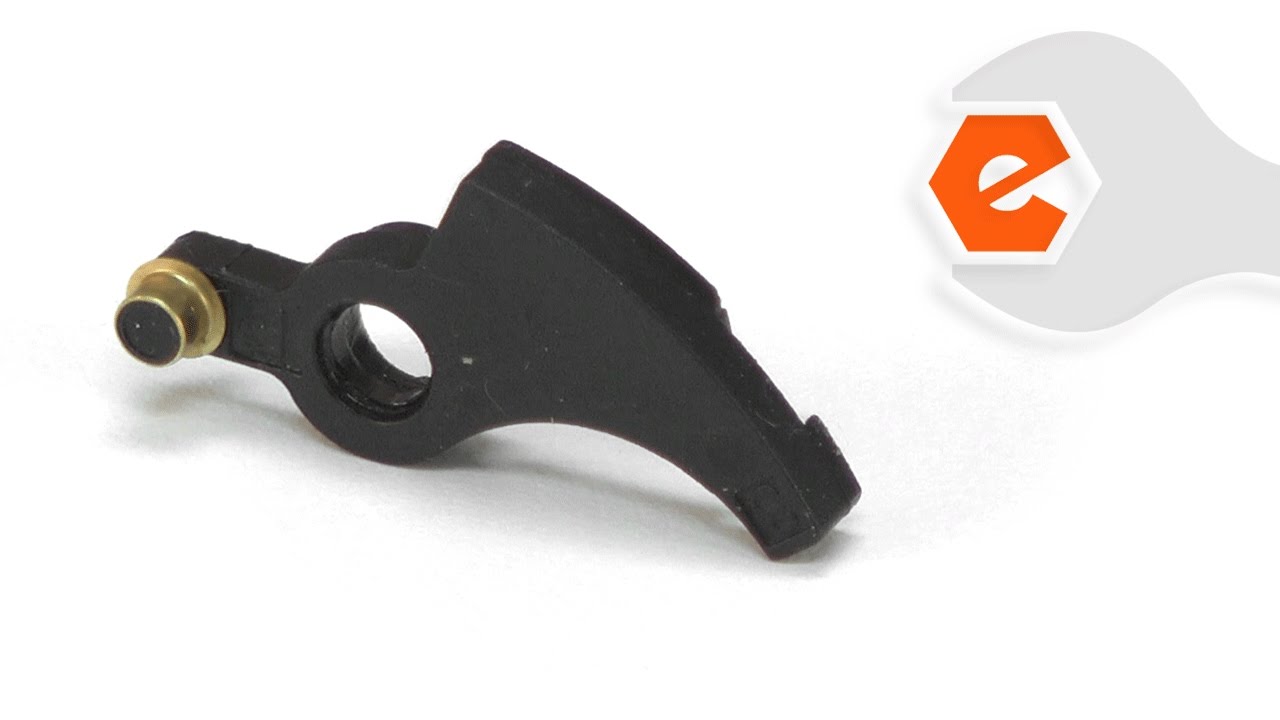

Lever Assembly

$2.99
In Stock
Fix Number: FIX12004487
Manufacturer #: 90567077
Manufactured by: Black and Decker
  • Product Description

    This authentic string trimmer lever assembly is sold individually. The lever is what controls the amount of line that is fed from the auto-feed spool. The lever tends to wear over time, and so should be inspected regularly. If the automatic line feed is not working, a malfunctioning lever is likely the cause. Remove the spool and check if the lever in the spool housing can move freely, if not, adjust or replace if damaged.

  • Works with the following brands
    Black and Decker
  • Works with the following products
    Trimmer
  • Fixes the following symptoms
    Cutting line does not come out
  • Part Number Cross Reference
    Part# 90567077 replaces these:
    P90567077
1 Related Part 3 Questions and Answers Model Compatibility
Product Description Questions and Answers Related Parts Model Compatibility

Product Description

This authentic string trimmer lever assembly is sold individually. The lever is what controls the amount of line that is fed from the auto-feed spool. The lever tends to wear over time, and so should be inspected regularly. If the automatic line feed is not working, a malfunctioning lever is likely the cause. Remove the spool and check if the lever in the spool housing can move freely, if not, adjust or replace if damaged.

  • Works with the following brands:
    Black and Decker
  • Works with the following products:
    Trimmer
  • Fixes the following symptoms:
    Cutting line does not come out
  • Part# 90567077 replaces these:
    P90567077

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

3 questions answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
S
December 7, 2022
How does this part attach?
For model number LST136
Hi, thank you for the great question. We have attached a video for the installation of your part. It may not be the exact same module but it should install almost the same. We hope this helps, good luck with this repair.

3 people found this helpful.

Was this helpful?
Thank you for voting!
Bill
June 9, 2022
Is it possible to get the spring with the lever, part #12004487. Thanks
For model number LSTE522 type 2
Hello Bill, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Fix Number: FIX12004487 for the Lever and Fix Number: FIX10254180 for the Spring. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
Related Parts:
Spring
$2.99
In Stock
William
October 17, 2022
Does the lever just swing freely, or does it have some kind of tensioner.My lever just swings back and forth freely.
For model number LST136
Hello William, thank you for reaching out. The lever should move freely. If it is bound up or obstructed it will not work correctly. We hope this information helps!

Was this helpful?
Thank you for voting!
  • 1
Back to Top
Spring
$2.99
Part Number: FIX10254180
This is an OEM spring located between the spool and spool cover of your trimmer. It is designed to hold the spool in position. This spring can lose tension over time and may cause the trimmer head to feed too much line o...
$2.99
In Stock
Model Compatibility
This part works with the following models:
Fix Number: FIX12004487
Manufacturer Part Number: 90567077
Brand
Model Number
Description
Black and Decker
98020SE
Trimmer - Lst136 - 40v String Trimm
Black and Decker
LST120
Trimmer - 20v String Trimmer
Black and Decker
LST136
Trimmer - 36V String Trimmer
Black and Decker
LST136B
Trimmer - 40v Lith Str Trimmer
Black and Decker
LST140C
Trimmer - 40v Lith String Trim
Black and Decker
LST220
Trimmer - 20V String Trimmer
Black and Decker
LST220FC-AR
Trimmer - 20V String Trimmer
Black and Decker
LST220FC-B2C
Trimmer - 20V String Trimmer
Black and Decker
LST220FC-B3
Trimmer - 20V String Trimmer
Black and Decker
LST220FC-BR
Trimmer - 20V String Trimmer
Black and Decker
LST522
Trimmer - 20v 2 Speed Str Trim
Black and Decker
NST2118
Trimmer - 18V String Trimmer
Black and Decker
ST8600
Trimmer - 5.0 Amp String Trimm
