See part 14 in the diagram
( Grid squares measure 1x1 inch )
Ice Container
$103.82
Fix Number: FIX11739219
Manufacturer #: WP2196089
Manufactured by:
Whirlpool
-
Product Description
This ice bin collects the ice cubes dropped from the icemaker. The auger is NOT included with this bin.
-
Works with the following brandsWhirlpool, Kenmore, KitchenAid, Roper
-
Works with the following productsRefrigerator
-
Fixes the following symptomsIce maker won’t dispense ice
-
Part Number Cross ReferencePart# WP2196089 replaces these:AP6006153, 1115213, 1115368, 2152703, 2152704, 2182091, 2182092, 2196089
Questions and Answers
Product Description
This ice bin collects the ice cubes dropped from the icemaker. The auger is NOT included with this bin.
-
Works with the following brands:Whirlpool, Kenmore, KitchenAid, Roper
-
Works with the following products:Refrigerator
-
Fixes the following symptoms:Ice maker won’t dispense ice
-
Part# WP2196089 replaces these:
Videos For installing this part.

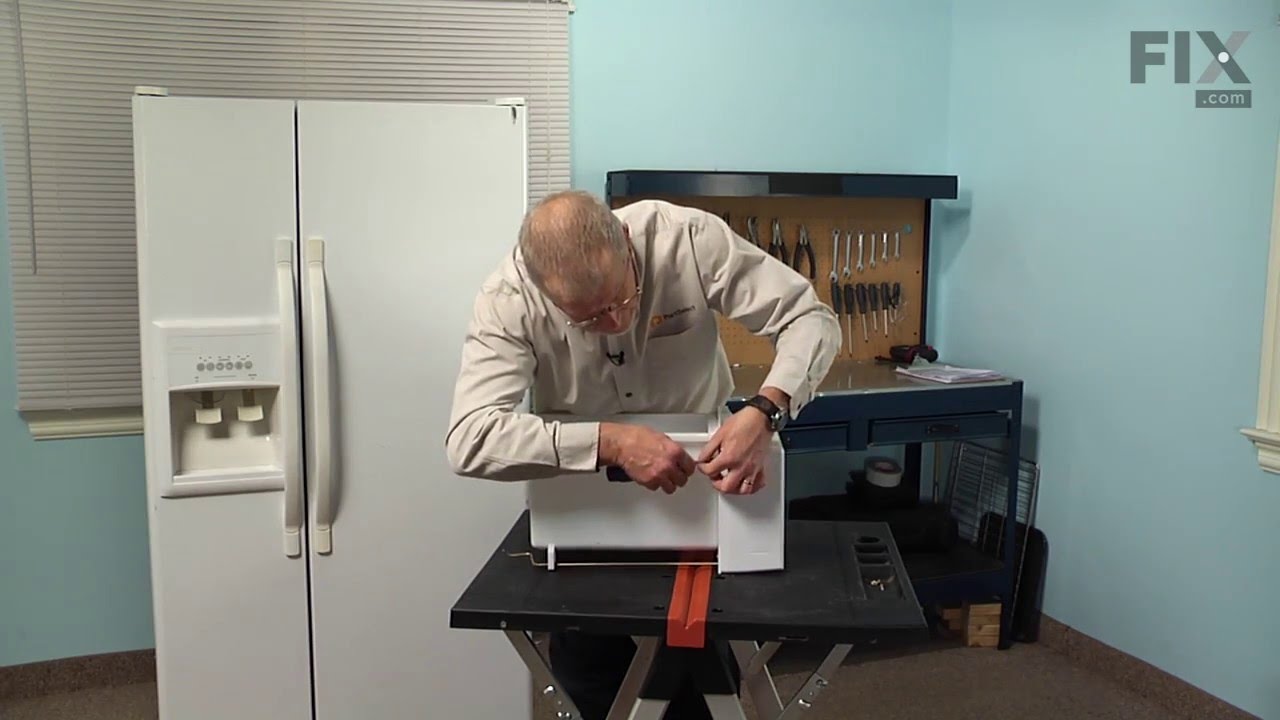

Replacing your Ice Container
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Installation Instructions Provided by Fix customers like you.
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Ronnie from Danville, PA -
-
Difficulty Level:A Bit Difficult -
Total Repair Time:1- 2 hours -
Tools:Nutdriver
Ice maker leaked
Via the video instructions. The problem was the new ice maker mounted approx. 1 inch higher than the old one. I could not use the lower mounting hole and the ice door had to be removed. The ice bin space to the ice maker is now 1 inch greater. I will have to be aware of a full bin or have ice cubes in the freezer. Last note: When placed side by side the old & new ice makers looked identical?
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Jennifer from Federal way, WA
-
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Screw drivers
Leaking water out if the ice maker.
Followed the video and did the repair. Works perfectly. The video was excellent, without that I wouldn't have had a clue.
Was this instruction helpful to you?
Thank you for voting!
Model Compatibility
This part works with the following models:
Fix Number: FIX11739219
Manufacturer Part Number: WP2196089
Manufacturer Part Number: WP2196089
