3536013-1-M-LG-MJU62070602-Plastic Tube - 5/16 Inch
Part Location Diagram of MJU62070602 LG Plastic Tube - 5/16 Inch
See part 616F in the diagram

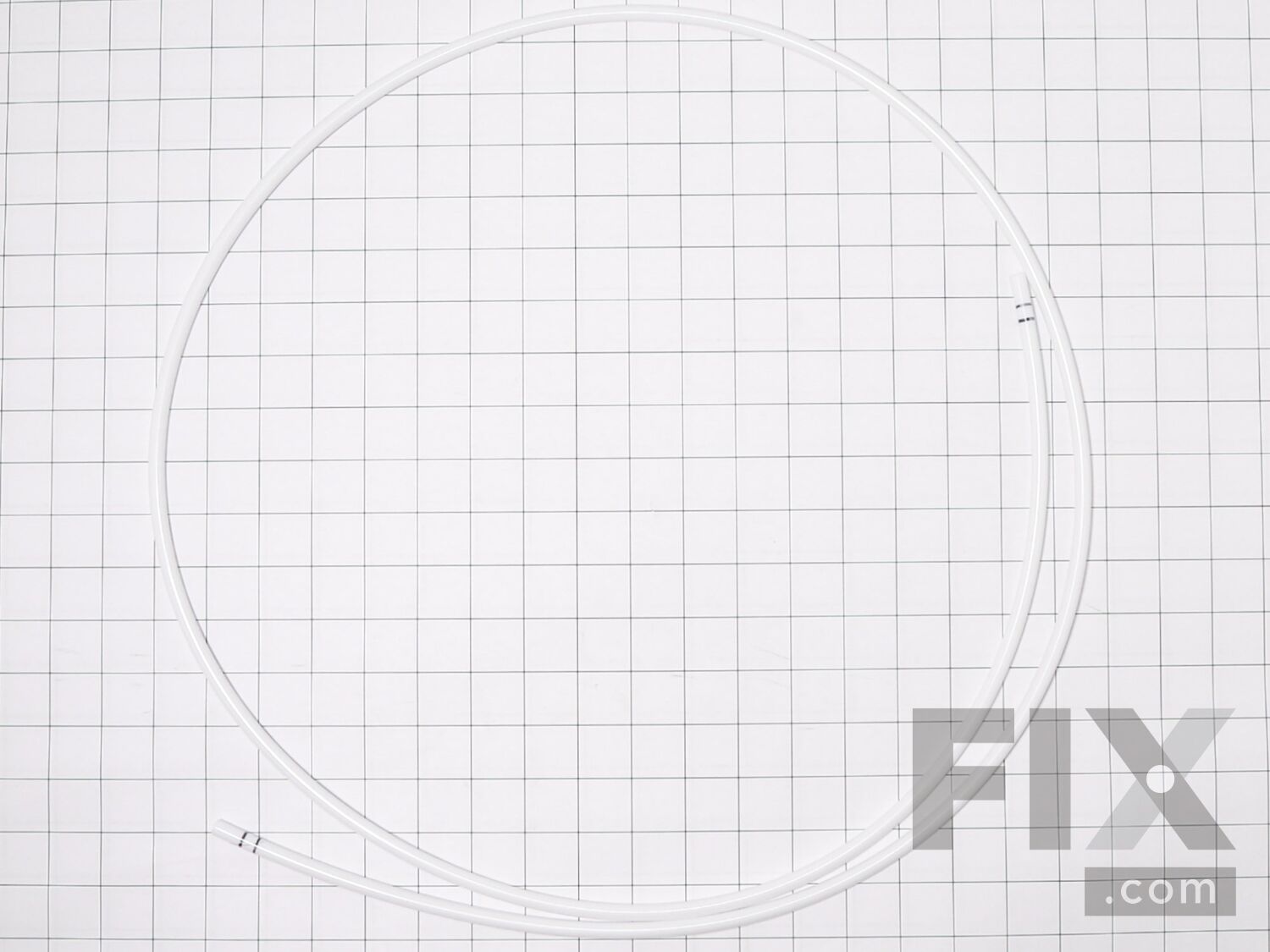

3536013-1-S-LG-MJU62070602-Plastic Tube - 5/16 Inch 360 view
( Grid squares measure 1x1 inch )

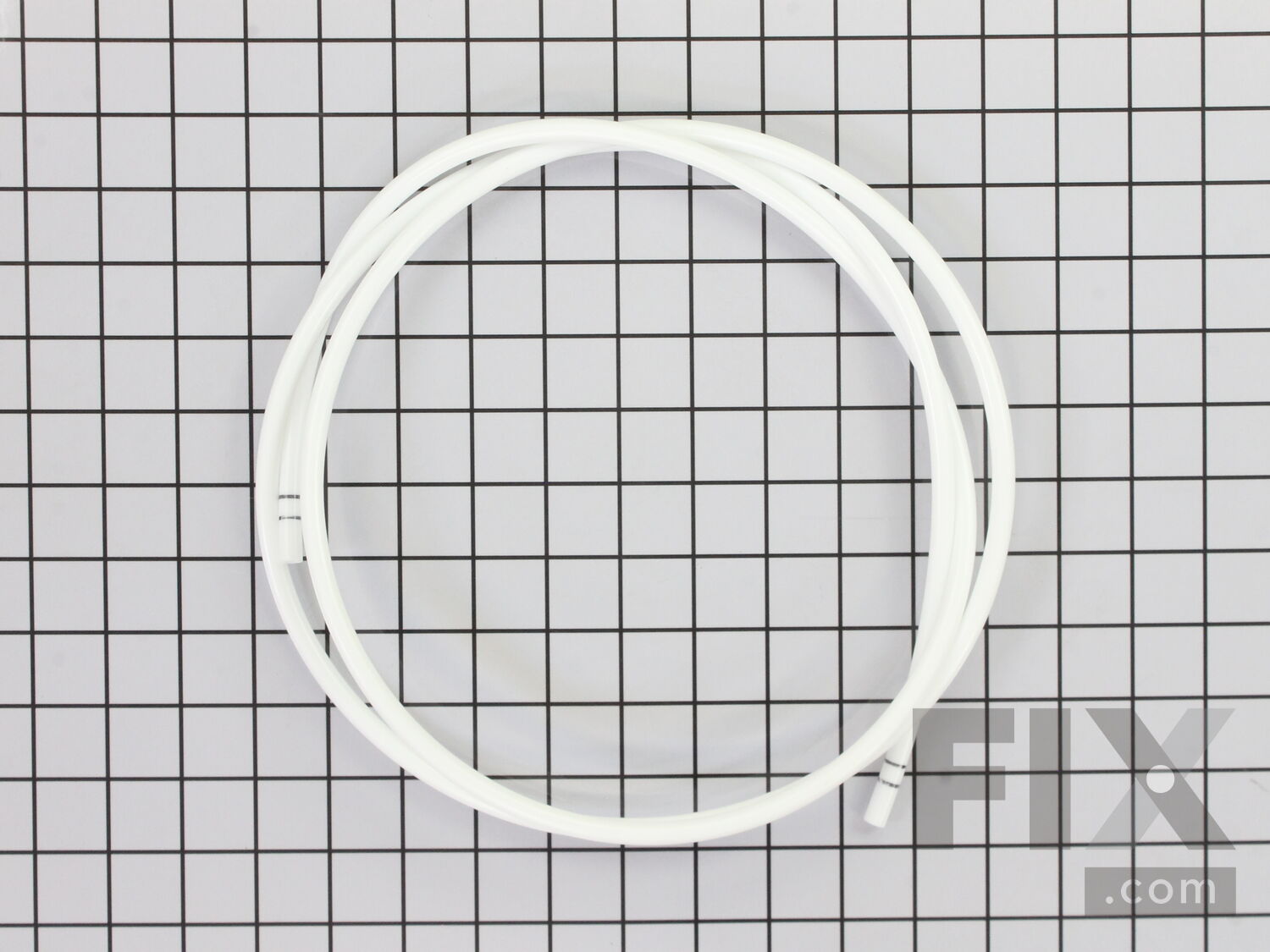

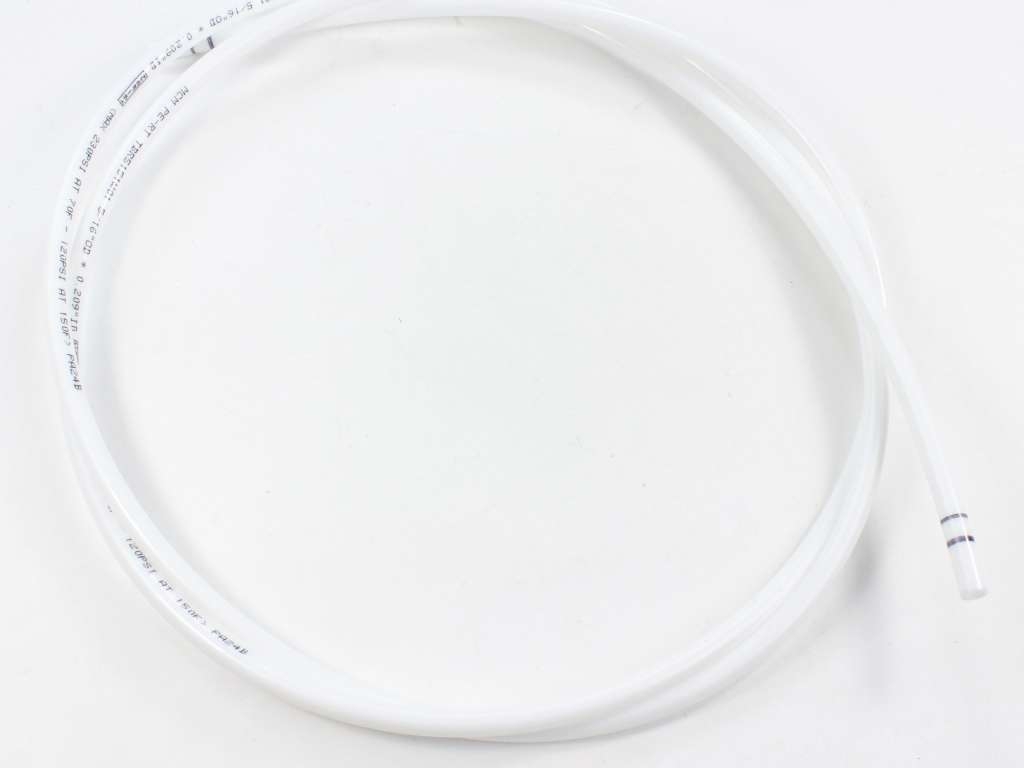

3536013-1-S-LG-MJU62070602-Plastic Tube - 5/16 Inch 3536013-2-S-LG-MJU62070602-Plastic Tube - 5/16 Inch 3536013-3-S-LG-MJU62070602-Plastic Tube - 5/16 Inch 3536013-1-S-LG-MJU62070602-Plastic Tube - 5/16 Inch 360 view
Part Location Diagram of MJU62070602 LG Plastic Tube - 5/16 Inch

Plastic Tube - 5/16 Inch MJU62070602

★★★★★
★★★★★
2 Reviews

Rated by 2 customers

?

Very Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$16.90
In Stock
Fix Number:
FIX3536013
Manufacturer #:
MJU62070602
Manufactured by:
LG

Jump to:

Product Description

  • Works with the following brands:
    LG, Kenmore
  • Works with the following products:
    Refrigerator, Freezer
  • Fixes the following symptoms:
    Leaking, Not dispensing water
  • Part# MJU62070602 replaces these:
    AP4681126, 5210JA3004A, 5210JA3004B, 5210JA3004L, 5210JA3004M, 5210JA3004R , 5210JA3004S, 5210JA3004U, 5210JA3029U, MJU62070601, MJU62070606, MJU62070611, MJU62070615, MJU63336703 Show less
Works with the following brands:
LG, Kenmore
Works with the following products
Refrigerator, Freezer
Fixes the following symptoms
Leaking, Not dispensing water
Part Number Cross Reference
Part# MJU62070602 replaces these:
AP4681126, 5210JA3004A, 5210JA3004B, 5210JA3004L, 5210JA3004M, 5210JA3004R, 5210JA3004S, 5210JA3004U, 5210JA3029U, MJU62070601, MJU62070606, MJU62070611, MJU62070615, MJU63336703

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Mike
November 8, 2021
Will this fit the Kenmore Elite
For model number 795.75196400
Fix.com logo
Hello Mike, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Fix Number: FIX3536013. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Plastic Tube
$19.21
In Stock
Part Number: FIX3526625
This part is the replacement water line or tube for your refrigerator. It is made of white plastic and is sold individually. This tube supplies water to the ice maker and water dispenser If your refrigerator is leaking, ...
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Part Number: FIX1960673
This front load washer cleaner removes odor-causing residue. Use it once a month and it will keep your machine fresh and clean. Package comes with 3 tablets.
Produce Preserver Filter
$21.50
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Cooktop Cleaning Cream
$15.57
In Stock
Part Number: FIX12717774
Make your cooktop shine with Frigidaire ReadyClean Glass and Ceramic Cleaner. Our scratch-free, streak-free formula removes smudges, grease, burnt-on food, dirt and oil, while protecting and polishing to repel dust and d...
Cooktop Cleaner
$17.74
In Stock
Part Number: FIX3492527
Sold individually.
Affresh Cleaner
$19.09
In Stock
Part Number: FIX2367638
There are 6 tablets in each package and it is suggested to use every month. These keep the dishwasher fresh by dissolving and removing odor.
View More View Less
Plastic Tube
$19.21
In Stock
Part Number: FIX3526625
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Part Number: FIX1960673
Produce Preserver Filter
$21.50
In Stock
Part Number: FIX3503014
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Part Number: FIX12345667
Cooktop Cleaning Cream
$15.57
In Stock
Part Number: FIX12717774
Cooktop Cleaner
$17.74
In Stock
Part Number: FIX3492527
Affresh Cleaner
$19.09
In Stock
Part Number: FIX2367638

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.5 / 5.0, 2 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Robert from Colorado Springs, CO
Parts Used:
MJU62070602
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Tubing for incoming water for ice maker and dispenser leaking.
The original tubing from LG was cut exactly to fit. Had to remove the water filter inside the refrigerator. It was just one screw, so it came off very easily. The tubing connected to the filter at the rear with a quick disconnect. Very easy swap out. The tubing is also connected to the pump (located at the bottom of the refrigerator behin d the cover plate. Only needed to take off 6 screws and one screw that held the pump on. The tubing was also held on to the pump with a quick disconnect as well. The tubing is secured to the rear of the refrigerator by plastic clips and screws. This replacement was extremely easy to do.
Read less
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Melvin Douglas from High Point, NC
Parts Used:
MJU62070602
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
Water would spray out on the wall in the back when you pressed the water dispenser.
removed lower section at back of refrigerator for access to the solenoid valve, removed retaining clip and pressed in the retainer to release the hose, loosen hose clips on back to removed hose, removed cover at back of water filter and removed both retaining clips and pressed in retainer to removed hoses, removed filter inside of refrig erator for access of screw holding filter housing, pulled forward to removed filter housing pulling hoses through. removed hose retainer and pressed in on retainer to removed hose. fit new hose. feed both hoses through the back of refrigerator. fit filter hose ,retainer and cover on hoses, Removed spring from old hose and fit to bottom of hose and installed new hose in solenoid, fit retaining clip and then route hose through hose clips on back of refrigerator. fit cover at lower back, install new filter and bleed air out. Check for leaks.
Read less
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
★ Customer Reviews
Average Rating: (2 Reviews)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 5★
    2
  • 4★
    0
  • 3★
    0
  • 2★
    0
  • 1★
    0
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Oleksandr C - March 27, 2022
Verified Purchase
Water Tube
There was no leak compare to a 5/16" tube from Home Depot
★★★★★
★★★★★
Pat J - June 10, 2021
Verified Purchase
Cold water line for Fridge
Perfect fit as described and matched up on your parts list. I had no issues installing and the quality appears to be better than the original that failed.

Model Compatibility

This part works with the following models:
Fix Number: FIX3536013
Manufacturer Part Number: MJU62070602
Brand
Model Number
Description
LG
1867
Refrigerator
LG
48231784207
Refrigerator
LG
48231784214
Refrigerator
LG
48231784221
Refrigerator
LG
48231784412
Refrigerator
LG
71012
Refrigerator - Refrigerator
LG
71013
Refrigerator
LG
71014
Refrigerator
LG
71016
Refrigerator
LG
71019
Refrigerator
LG
71022
Refrigerator - LG Refrigerator Model 71022 Parts
LG
71023
Refrigerator - LG Refrigerator Model 71023 Parts
LG
71024
Refrigerator - LG Refrigerator Model 71024 Parts
LG
71026
Refrigerator - LG Refrigerator Model 71026 Parts
LG
71029
Refrigerator - LG Refrigerator Model 71029 Parts
LG
71032
Refrigerator
LG
71052
Refrigerator
LG
71053
Refrigerator
LG
71054
Refrigerator
LG
71056
Refrigerator
LG
71059
Refrigerator
LG
71062
Refrigerator
LG
71063
Refrigerator
LG
71069
Refrigerator - Refrigerator
LG
71072
Refrigerator
LG
71073
Refrigerator
LG
71079
Refrigerator
LG
71082
Refrigerator - LG Refrigerator Model 71082 Parts
LG
71083
Refrigerator - LG Refrigerator Model 71083 Parts
LG
71089
Refrigerator - LG Refrigerator Model 71089 Parts
Plastic Tube - 5/16 Inch
$ 16.90
  In Stock
✖
Stock Status
 In Stock

Item is in stock and will ship today if your order is placed before 4:00 PM Eastern Standard Time.

If your order is placed after 4:00 PM EST, the in stock items will ship on the next business day.

 On Order

Item is not in stock and usually ships 3-5 business days from the time you place your order.

 Special Order

Item is not in stock and usually ships 10-15 business days from the time you place your order.

 NLA - No Longer Available

This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
