Refrigerator Single Water Inlet Valve
Works With Model RT21LMXKQ03!
$71.47
In Stock
Fix Number: FIX11740365
Manufacturer #: WP2315576
Manufactured by:
Whirlpool
Works With Model RT21LMXKQ03!
-
Product Description
Also known as a Water Solenoid Valve. The water inlet valve is a solenoid-operated switch that, when activated, releases water from the supply line to the water valve and into the compact icemaker mold.
-
Works with the following brandsKenmore, Whirlpool, Maytag, KitchenAid
-
Works with the following productsRefrigerator, Ice Maker
-
Fixes the following symptomsIce maker not making ice, Leaking, Ice maker won’t dispense ice, Not dispensing water
-
Part Number Cross ReferencePart# WP2315576 replaces these:AP6007253, 12213901, 2001318, 2155063, 2171999, 2181702, 2181704, 2181915, 2181917, 2182104, 2188782, 2210436, 2210494, 2315508, 2315576, W10219716, W10498974, WP2315576VP, WPW10219716
Product Description
Also known as a Water Solenoid Valve. The water inlet valve is a solenoid-operated switch that, when activated, releases water from the supply line to the water valve and into the compact icemaker mold.
-
Works with the following brands:Kenmore, Whirlpool, Maytag, KitchenAid
-
Works with the following products:Refrigerator, Ice Maker
-
Fixes the following symptoms:Ice maker not making ice, Leaking, Ice maker won’t dispense ice, Not dispensing water
-
Part# WP2315576 replaces these:AP6007253, 12213901, 2001318, 2155063, 2171999, 2181702 ... Show more , 2181704, 2181915, 2181917, 2182104, 2188782, 2210436, 2210494, 2315508, 2315576, W10219716, W10498974, WP2315576VP, WPW10219716 Show less
Videos For installing this part.

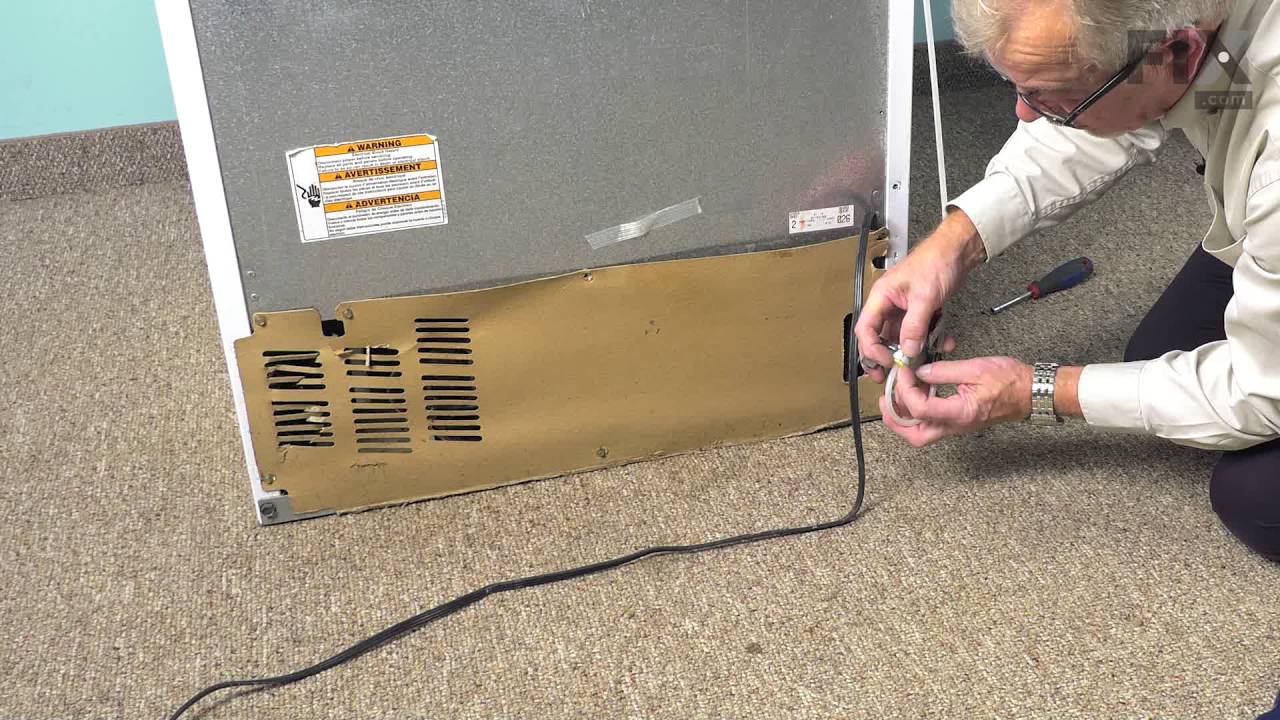

Replacing your Refrigerator Single Water Inlet Valve

Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:William from Yuma, AZ
-
Parts Used:WP2315576
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Socket set
ice water valve leaking
replaced the valve
Was this instruction helpful to you?
Thank you for voting!
-
Customer:David from Kannapolis, NC
-
Parts Used:WP2315576
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Wrench (Adjustable)
water not getting to icemaker
I replaced the water inlet valve that is located in bottom rear of refrigerator. Connected incoming water line and water line running up to icemaker and also connected the power connecter plug to new inlet valve.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:BILL from SAC, CA
-
Parts Used:WP2315576
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Nutdriver, Wrench (Adjustable)
Quit making ice. Not getting water to ice maker.
Removed old inlet valve and installed new. Very easy.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:stephen from riceville, TN
-
Parts Used:WP2315576
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Wrench (Adjustable)
ice maker quit making ice because of a defective single water inlet valve
unplug refrigerator 1.turn off water supply to ice maker 2.remove plate over water inlet valve 3.remove the two screws that hold the water inlet to the refrigerator 4.unplug electric connector from water inlet valve 5. with adjustable wrench, remove bottom water line 6. remove top water line from defective water inlet valve 7.replace bottom water line onto water inlet valve 8.if top line connects to quick connector on water inlet valve, make sure water line is cut straight across bottom, then connect water line to water inlet valve 9. connect electric plug to water inlet valve 10. reconnect water inlet valve to refrigerator with two screws 11. replace cover over water inlet valve 12turn on water supply 13.plug up refrigerator 14.within two or three hours, enjoy ice!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Thomas from Nineveh, IN
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers, Wrench (Adjustable)
Not making ice no water flow.
Just took off old parts and put on new. Didn't have to change anything else. Everything fit like it was supposed to. PS. NO INSTRUCTIONS CAME WITH IT.
Was this instruction helpful to you?
Thank you for voting!
