This part is used to detect the temperature in the air inside of your refrigerator.
Works with the following brands:
Kenmore, KitchenAid, Whirlpool, Maytag
Works with the following products:
Refrigerator
Fixes the following symptoms:
Fridge too warm, Fridge too cold, Freezer too cold
Part# WP2188819 replaces these:
AP6006067, 2188819, 2216113
Videos For installing this part.

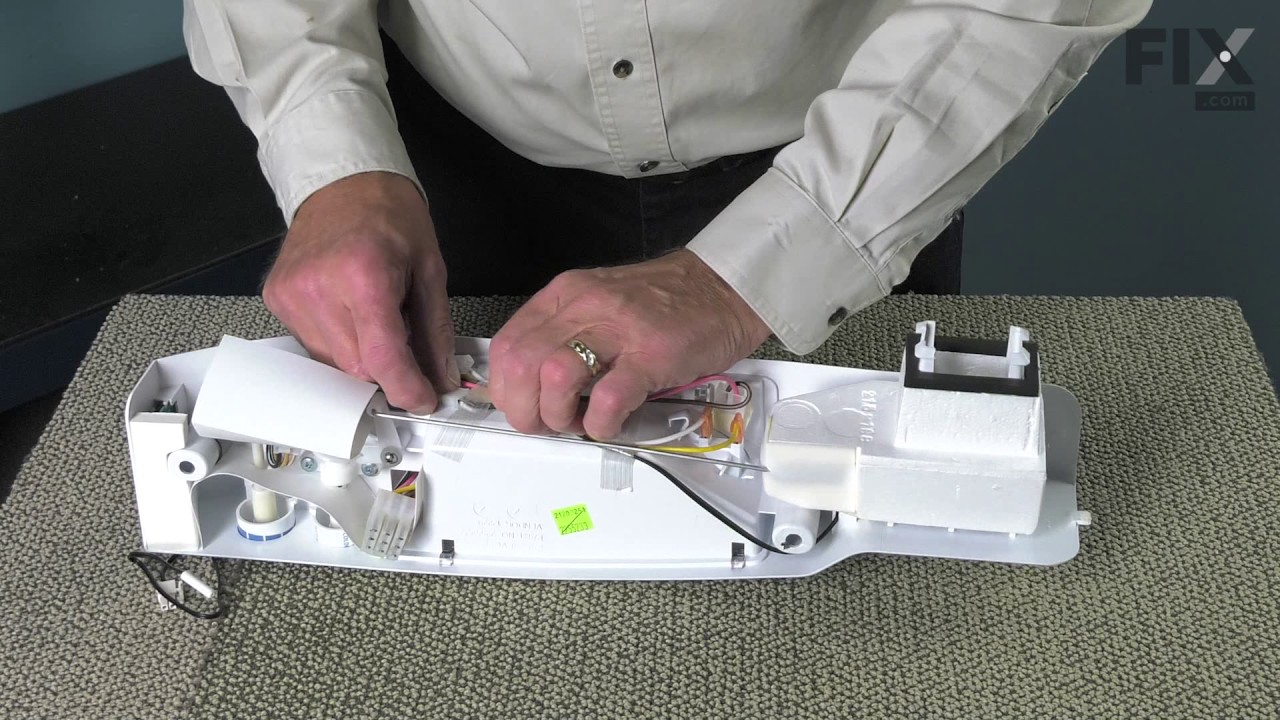

Replacing your Thermistor
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
2 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched. Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Ron
October 24, 2022
What resistance should I read At zero degrees Fahrenheit ,On the thermistor. I do get a reading and the resistance changes with temperature but is it reading accurately is the question.
For model number 106.53203202l
Hello Ron, thank you for your question. At 77 degrees the resistance reading should be around 2.7K ohms and around 42K ohms of resistance at 0 degrees. We hope this is what you were looking for.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Tom
January 31, 2023
I've been testing this thermistor and I get about 2.8K at room temperature. My freezer seems to be running full-time so it is at -6F now. When I test at all range levels on the multimeter with the thermistor in the freezer for a while it reads out of range, solid 1. Should it ever show infinite resistance?
For model number 106.53552202
Hello Tom, Thank you for the question. If it is reading out of range it would be considered defective. At 77 degrees the resistance reading should be around 2.7K ohms and around 42K ohms of resistance at 0 degrees. We hope this information helps!
Was this helpful?
Thank you for voting!
Related Parts Additional or alternate parts to consider.
The bi-metal defrost thermostat is attached to the evaporator, and its purpose is to protect the evaporator from overheating when the defrost cycle is running. If there is frost building up in your freezer, or it gets to...
Model Compatibility
This part works with the following models:
Fix Number: FIX11739131
Manufacturer Part Number: WP2188819
