Part Location Diagram of WR60X10220 GE Condenser Fan Motor
See part 650 in the diagram
Replacing your General Electric Refrigerator Condenser Fan Motor
( Grid squares measure 1x1 inch )

Condenser Fan Motor WR60X10220

Works With Model HTS22GBPBRWW!
★★★★★
★★★★★
1 Review

Rated by 13 customers

?

Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$51.98
In Stock
Fix Number:
FIX1766247
Manufacturer #:
WR60X10220
Manufactured by:
GE
Works With Model HTS22GBPBRWW!

Product Description

This fan motor is most times used with frost-free refrigerators with a condenser coil. When the compressor runs, so does this fan, circulating air through the refrigerator grille, cooling the compressor and condenser coils. This fan motor also helps to evaporate excess water in the drain pan.

Videos For installing this part.

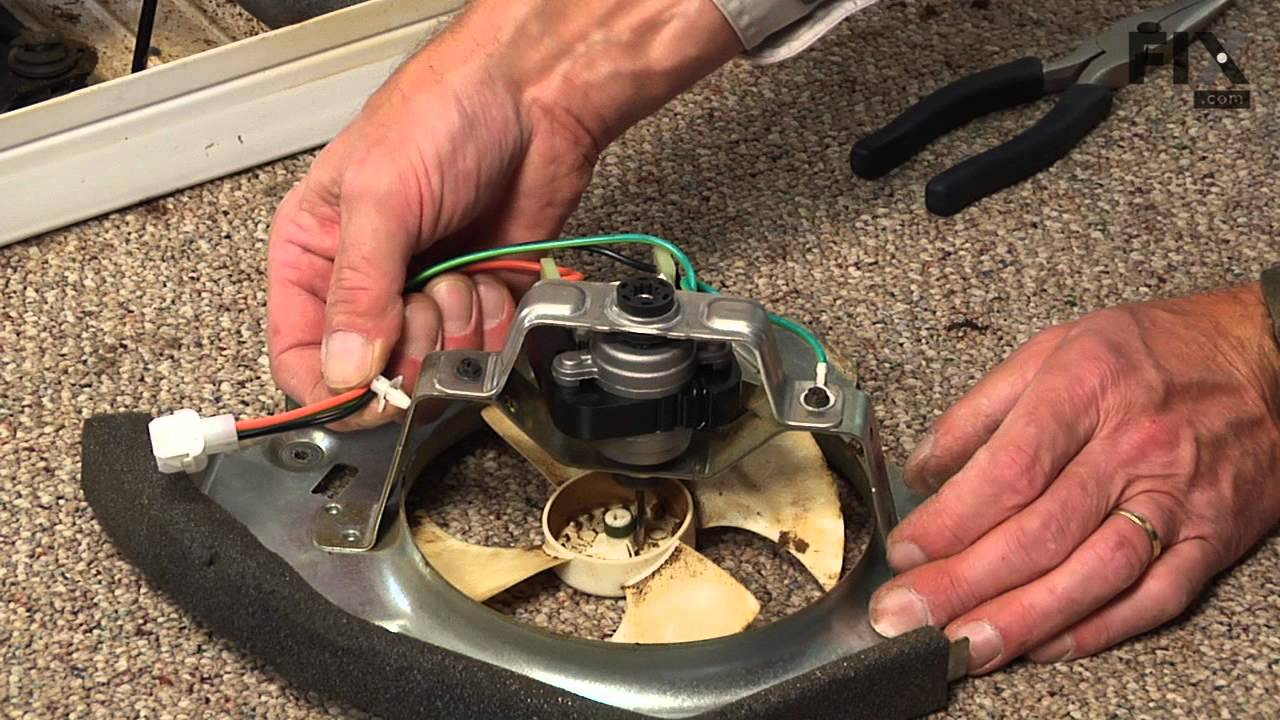

Replacing your Condenser Fan Motor

Replacing your Condenser Fan Motor

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

View More View Less
Evaporator/Condensor Fan Grommet
$11.58
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.8 / 5.0, 13 reviews.
  • 1
  • 2
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Ronnie from Brunswick, GA
Parts Used:
WR60X10220
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Squealing sound coming from behind the refrigerator
I removed the back cover so that I could see the condenser fan. I disconnected the motor (just a quick-connect type connector). There were two 1/4" screws holding the motor bracket. I had to use a small wrench since there was not room to use a nut driver. Once I removed the two screws, I was easily able to replace the motor. The old fa n just slides off the old motor shaft and onto the new one.
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
mahendra from loganville, GA
Parts Used:
WR60X10220, WR55X10025
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers, Socket set
refrigerator not cool
Simple as 123 the video make it really easy thanks
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Scott from Nampa, ID
Parts Used:
WR60X10220, WR02X10098
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Fan was rubbing against fan shroud and running slow. Rubber gromets were worn and allowing fan motor to sag.
Unplugged the refrigerator. Pulled rear access plate off (removed 7 screws). Disconnected fan motor. Fan motor was running slow even if the fan propeller was clear of fan shroud. Removed two screws to remove the fan motor from mounting bracket. With fan motor loose, I removed the fan propeller from motor by pulling it off the shaft. I then slid the motor shaft out from the mounting bracket to remove fan motor. I then vacuumed out the condenser coil area to remove dust. I cleaned the fan propeller. Removed rubber grommets from motor mounting brackets and replaced them with new ones. Slid new fan motor shaft through mounting bracket and maneuvered motor so as to attach the fan propeller. Reattached fan propeller by pushing it back onto the motor shaft. Fitted motor into the mounting bracket and secured to coil housing with the two screws I removed earlier. Make certain that the grounding wire is secured under one of the mounting bracket screws. Plugged the refrigerator back in. Observed that the fan was rotating free and clear of fan shroud. Reattached the rear access plate.
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
John from Tabernash, CO
Parts Used:
WR60X10220
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers
loud squealing noise when motor was running
Took old motor out, put new motor in. Cleaning all the dust out took the longest.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Ronald from Virginia Beach, VA
Parts Used:
WR60X10220
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
Over heating around freezer door frame
Just follow the how to video and its that easy!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Nathan from St. Louis, MI
Parts Used:
WR60X10220, WR60X10207
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Socket set
FRIDGE STARTED MAKING NOISE AND A MONTH LATER QUIT COOLING
Removed the back lower panel 1/4" screws and found fan motor and pump very warm to the touch. Fan motor was not operating. Installed household fan behind fridge and after an hour or two it began to cool again. Ordered new motor and fan blade. Left household fan in place until part arrived.... Unplugged fridge installed new motor and blade by first prying the fan off the motor with a pair of pliers and then removing the electrical connector and two bolts holding motor in place. Replacement of the blade was not necessary but because of how the blade is pressed on would recommend replacing just because...Reconnected new motor and fan and fridge is working just like it should..
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Larrie from Tucson, AZ
Parts Used:
WR60X10220
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Socket set
Noisey compressor fan!
Took back off rear and vacuumed out. Unplugged fan, removed 2 screws, hard to get to 1. Fan blade pulls off. Reverse order for new fan, make sure you reconnect ground wire and rubber grommets! Tight space consumed my time, otherwise an easy fix. This site is the best for repairs to save money and to tell you how to replace! LKM
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Dean from Fort Worth, TX
Parts Used:
WR60X10220
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Wrench (Adjustable)
Found it more difficult if you remove the whole housing instead of the two screws that hold motor to housing
I removed the whole mounting frame and had trouble lining everything back up. once I realized the coil frame pulls forward just enough to line up screw, things went well
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Daniel from Spring Creek, NV
Parts Used:
WR60X10220
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Pliers
Separator wall was getting hot, freezer would almost thaw then hard freeze. Fan for the compressor was not working.
Replaced fan motor by copying video method. Shipment for motor was fast. Video was precise and detailed. Saved me money!!!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Rob from Buckeye, AZ
Parts Used:
WR60X10220
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers
Condenser Fan was squeeking
Removed back cover removed fan and replaced. Looked up how to video on web. Did not go as they instructed. Had to remove fan from bracket with bracket loose from condenser. whole unit can not be pulled as a unit as they instructed.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
  • 2
Customer Reviews
Average Rating: (1 Review)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 5
    1
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Model Compatibility

This part works with the following models:
Fix Number: FIX1766247
Manufacturer Part Number: WR60X10220
Brand
Model Number
Description
General Electric
A4425GDTABB
Refrigerator
General Electric
A4425GDTAWW
Refrigerator
General Electric
A4425GDTBBB
Refrigerator
General Electric
A4425GDTBWW
Refrigerator
General Electric
A4425GDTW
Refrigerator - GE Refrigerator Model A4425GDTW Parts
General Electric
BSS25GFPCCC
Refrigerator
General Electric
BSS25GFPCWW
Refrigerator
General Electric
BSS25GFPDCC
Refrigerator
General Electric
BSS25GFPDWW
Refrigerator
General Electric
BSS25GFPECC
Refrigerator
General Electric
BSS25GFPEWW
Refrigerator
General Electric
BSS25GFPHCC
Refrigerator
General Electric
BSS25GFPHWW
Refrigerator
General Electric
BSS25JFRFWW
Refrigerator
General Electric
BSS25JFRJWW
Refrigerator
General Electric
BSS25JFTAWW
Refrigerator
General Electric
BSS25JFTBWW
Refrigerator - T Series
General Electric
BSS25JFTCWW
Refrigerator - T Series
General Electric
BSS25JFTDWW
Refrigerator
General Electric
BSS25JFTEWW
Refrigerator - T Series
General Electric
BSS25JFTGWW
Refrigerator
General Electric
BSS25JFTHWW
Refrigerator
General Electric
BSS25JFTIWW
Refrigerator
General Electric
BSS25JFTJWW
Refrigerator
General Electric
BSS25JFTNWW
Refrigerator
General Electric
BSS25JFTPWW
Refrigerator
General Electric
BSS25JSRFSS
Refrigerator
General Electric
BSS25JSRJSS
Refrigerator
General Electric
BSS25JSTASS
Refrigerator
General Electric
BSS25JSTBSS
Refrigerator - T Series
