469510-1-M-Frigidaire-5303918202 -Defrost Thermostat

( Grid squares measure 1x1 inch )

469510-1-S-Frigidaire-5303918202 -Defrost Thermostat

469510-1-S-Frigidaire-5303918202 -Defrost Thermostat 360 view

Part Location Diagram of 5303918202 Frigidaire Defrost Thermostat

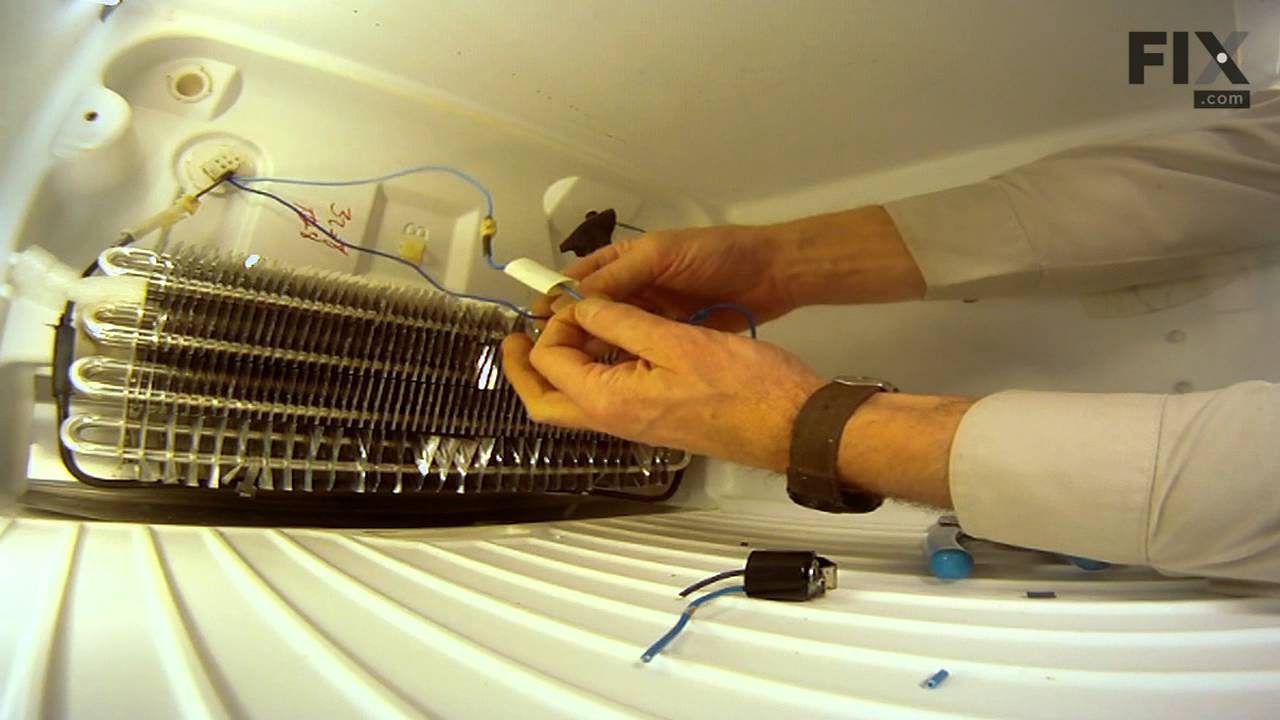

Replacing your Frigidaire Refrigerator Defrost Thermostat

Defrost Thermostat 5303918202

Rated by 11 customers

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

$32.86

Fix Number:: FIX469510
Manufacturer #:: 5303918202
Manufactured by:: Frigidaire

Product Description: The thermostat senses that the heat near the cooling coils has reached the desired temperature.
Works with the following brands:: Frigidaire, Kenmore, Crosley, Westinghouse
Works with the following products: Refrigerator
Fixes the following symptoms: Fridge too warm, Freezer not defrosting, Freezer section too warm, Frost buildup
Part# 5303918202 replaces these:: AP2150133, 833603, 241619705, 5303918202

1 Installation Video 7 Related Parts 1 Question and Answer 11 Installation Instructions Model Compatibility

Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

The thermostat senses that the heat near the cooling coils has reached the desired temperature.

Works with the following brands:

Frigidaire, Kenmore, Crosley, Westinghouse
Works with the following products:
Refrigerator
Fixes the following symptoms:

Fridge too warm, Freezer not defrosting, Freezer section too warm, Frost buildup
Part# 5303918202 replaces these:

AP2150133, 833603, 241619705, 5303918202

Videos For installing this part.

Replacing your Defrost Thermostat

Replacing your Defrost Thermostat

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.

< Prev
1
Next >

Sort by:

John

August 18, 2022

Is this defrost Thermostat compatible with other frigidaire models? Such As FFTR1814TWJ.

For model number FFTR1814TWJ

Hello John, thank you for contacting us. The part you have mentioned is not compatible, based on our research the compatible defrost thermostat for your model is part number FIX6448122. Please feel free to contact us if you need any help placing an order. We hope this helps.

1 person found this helpful.

Was this helpful?

Related Parts:

Defrost Thermostat

$23.80

Related Parts Additional or alternate parts to consider.

View More

Defrost Timer - 60Hz 120V

$38.60

Affresh Washing Machine Cleaner - 3 pack

$12.58

Produce Preserver Filter

$21.50

Affresh Dishwasher Cleaner Tablets - 6

$19.09

Cooktop Cleaning Cream

$15.57

Cooktop Cleaner

$17.74

Affresh Cleaner

$19.09

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.1 / 5.0, 11 reviews.

< Prev
1
2
Next >

Sort by:

Customer:: william from harrisville, OH
Parts Used:: 5304464438, 5303918202, 215846604
Difficulty Level:: Very Easy
Total Repair Time:: 15 - 30 mins
Tools:: Nutdriver, Pliers, Screw drivers

POWER BUT WOULDN'T RUN

SIMPLY WATCHED THE PARTS SELECT VIDEO AND READ THEIR INSTRUCTIONS. SO EASY MOST PEOPLE CAN DO. REPLACED ALL 3 PARTS FOR ALOT LESS THAN A SERVICE CALL AND LABOR.

4 of 5 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: Charles from BUSHNELL, FL
Parts Used:: 5303918208, 5303918202
Difficulty Level:: Really Easy
Total Repair Time:: 30 - 60 mins
Tools:: Pliers, Screw drivers

Defrost not working and the refrigerator section too warm.

I bought both the Defrost Heater Kit and Defrost Thermostat because the parts weren't that expensive and I had the same problem 8 years ago and needed both and had to do the fix twice because I only bought one part at that time.
Remove the top shelf of the frig section and place a pan toward the back center on the shelf that is stil ... Read more l there. take a couple bottles of hot tap water to have ready.
Mine had the Ice Maker so I used a 1/4 or 5/16 Nut driver on an extension and just loosened the two screws on the side. Unplug Fridge first! Gently push the ice maker up and pull away from the side and the disconnect the Plug with tabs.
If the back panel is frosted up pour the hot water along the area that the center drain and panel is. Remove the two screws and gently work the panel loose. If frost is not releasing panel use more hot water. You can also use low heat on heat gun moving back and forth. There is a plastic fan blade you do not want to warp with the heat. When you get it free and tip the top of the panel toward you you will have to remove another tabbed connector upper left.
Set the panel with fan assembly and aside so it dries.

The coils will need some more hot water, I used about four 16 oz bottles and poured them across the top of the iced up mess to get the main part of it melted so everything became visible. All of the frost has to be gone to access parts being removed. Once that most of the frost was gone I used the heat gun to get the rest so it would fall loose. Do not melt the plastic panel of the back of the compartment, use caution and something to shield from heat gun. When frost starts falling loose you can use a popsicle stick to break it up gently and push it to the left back corner and pull it out and slide into a pan that you can hold under front edge. Wipe up excess water.
The Defrost Heater has two sharp aluminum zip ties with a slot that you have to very carefully loosen and pull the ends out so as to reuse. You can leave them in place and just re-secure them to the new heater. Note that the heater is marked with red on one end. Unplug both ends and gently pull it free. The new part has a red marking and should plug to the same side as the old which on this Model on mine is plugged to right side plug. Place the new heater back where the old one was and secure it gently and don't get cut.

Next you can use a Multimeter and check across both ends of the old one for Resistance. if it is open throw it away, mine had about 41 ohms so I kept it as a spare

It is time to remove the Defrost thermostat. Clip the wires close to the part and carefully remove the snap on clip from the pipe and note the position so that you can put the new one in the same place. Strip about 1/4" from each wire going into the barrel connector. Slide shrink tubing over each wire before assembly. The Dark blue wire are butted together at right side. The light blue wire is butted with the loose wire from the white plug. Crip firmly all butt splices then Heat shrink carefully. Now position the clip with the new part back on the pipe in the same position. Tuck and Zip tie if the wires dangle down to keep them up out of the coils. Do any necessary cleanup. Gently take the back panel and insert bottom first plug white plug in firmly. The Ice Maker Fill tube if you have one will need to be lifted and guided thru the hole as you push the panel in place. Insert the two panel screws. Ice Maker can then be put back on its screw heads and the Plug for it inserted. Tighten screws .
Time to turn on the fridge again and listen for fan noise because the panel may have bent while you disassembled it from frost that was clinging to it, don't ask how I know LOL!

If all goes well the refrigerator should cool down gradually over the next 8 - 12 hours, some say 24 but mine didn't take that long. I hope this helps somebody!

Better than buying another Refrigerator!

Read less

3 of 3 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: Stephen from Hot Springs, AR
Parts Used:: 5303918202
Difficulty Level:: Really Easy
Total Repair Time:: Less than 15 mins
Tools:: Nutdriver

Refrigerator not cooling

Removed back panel in freezer. Cut the 2 wires on old defrost thermostat. Used wire nuts to connect new thermostat. Connector sent with new thermostat wouldn't hold. Used supplied shrink tubing on wire nuts to keep connection water tight.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: Ron from Gilmer, TX
Parts Used:: 5303918202
Difficulty Level:: Really Easy
Total Repair Time:: 15 - 30 mins
Tools:: Nutdriver, Screw drivers

freezer working, refrigerator not cooling

removed bake plate in freezer and let it defrost for 24 hours. Located thermostat, removed and cut both wires. Stripped wires and crimped new thermo with sta-kon butt splices and shrink tubed the splices. Put everything back together in reverse order, plugged the refrig in and let it eat for 24 hours. Excellent job if I do say so myse ... Read more

Read less

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: STEVEN from WILTON, NH
Parts Used:: 5303918202, 215846604
Difficulty Level:: Really Easy
Total Repair Time:: Less than 15 mins
Tools:: Nutdriver, Screw drivers

Defrost not working

"GREAT" I watched a u tube by Bill Newberry,he explained the whole process and showed you what all the parts looked like. THIS SITE DID THE BEST JOB ON DELIVERING THE "RIGHT PARTS QUICKLY"!!

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: Edward from Oklahoma City, OK
Parts Used:: 5303918202
Difficulty Level:: Easy
Total Repair Time:: 30 - 60 mins
Tools:: Nutdriver

evaporater coil frosting up causing frig section to warm

I watched the video supplied by this site . An easy part replacement. The hardest part was removing the food and shelving, and that wasn't really hard, just time consuming.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: Lawrence from MOUNT LAUREL, NJ
Parts Used:: 5303918202
Difficulty Level:: Really Easy
Total Repair Time:: 30 - 60 mins
Tools:: Nutdriver, Screw drivers

after defrosting freezer would not come back on.

I followed the instructions in the video.They were very easy to follow .The only problem I had was with the parts I orderd. The thermal shrink material was to short.When it was heated it shrank so much that it only covered the connector.I believe the purpose of the shrink material is to help seal moisture out of the connection.I have to ... Read more

Read less

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: lou from SEYMOUR, TN
Parts Used:: 5303918202, 215846602
Difficulty Level:: Really Easy
Total Repair Time:: 15 - 30 mins
Tools:: Nutdriver, Pliers, Screw drivers

water dripping down the back of the refrigerator area and settleing in the base of the refrigerator

I followed the install instructions video

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: Pat from Winchester, TN
Parts Used:: 5303918202, 215846602
Difficulty Level:: Easy
Total Repair Time:: 30 - 60 mins
Tools:: Nutdriver, Pliers, Screw drivers

Refrigerator would no longer cool and freezer was collecting frost.

I followed the video instructions and defrosted the coils. I first installed the defrost timer and then put the appliance back in operation. After about a week I could see frost buildup on the rear freezer panel. I then repeated the defrosting process and installed the defrost thermostat. The fridge was plugged into a GFI outlet which ... Read more

Read less

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:: Marcos from Copperas Cove, TX
Parts Used:: 5303918202
Difficulty Level:: Really Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers

Freezer too cold

Removed freezer back cover, unplugged electricity, cut the two wires from old thermostat, installed new thermostat, plugged electricity back in, replaced back cover and started the refrigerator.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

< Prev
1
2
Next >

Model Compatibility

This part works with the following models:

Fix Number: FIX469510
Manufacturer Part Number: 5303918202

Kenmore

25331113300

Refrigerator

Kenmore

25331113302

Refrigerator

Kenmore

25331113304

Refrigerator

Kenmore

25331113308

Refrigerator

Kenmore

2533111330A

Refrigerator

Kenmore

2533111330B

Refrigerator

Kenmore

2533111330C

Refrigerator

Kenmore

2533111330D

Refrigerator

Kenmore

2533111330E

Refrigerator

Kenmore

2533111330F

Refrigerator

Kenmore

2533111330G

Refrigerator

Kenmore

2533111330H

Refrigerator

Kenmore

2533111330J

Refrigerator

Kenmore

2533111330K

Refrigerator

Kenmore

2533111330L

Refrigerator

Kenmore

25331115300

Refrigerator

Kenmore

25331115302

Refrigerator

Kenmore

25331115304

Refrigerator

Kenmore

25331115308

Refrigerator

Kenmore

2533111530A

Refrigerator

Kenmore

2533111530B

Refrigerator

Kenmore

2533111530C

Refrigerator

Kenmore

2533111530D

Refrigerator

Kenmore

2533111530E

Refrigerator

Kenmore

2533111530F

Refrigerator

Kenmore

2533111530G

Refrigerator

Kenmore

2533111530H

Refrigerator

Kenmore

2533111530J

Refrigerator

Kenmore

2533111530K

Refrigerator

Kenmore

2533111530L

Refrigerator
