Compressor Start Device and Capacitor

Works With Model AFD2535DEW!

Rated by 6 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$74.09
In Stock
Fix Number: FIX8746522
Manufacturer #: W10613606
Manufactured by: Whirlpool
Works With Model AFD2535DEW!
  • Product Description

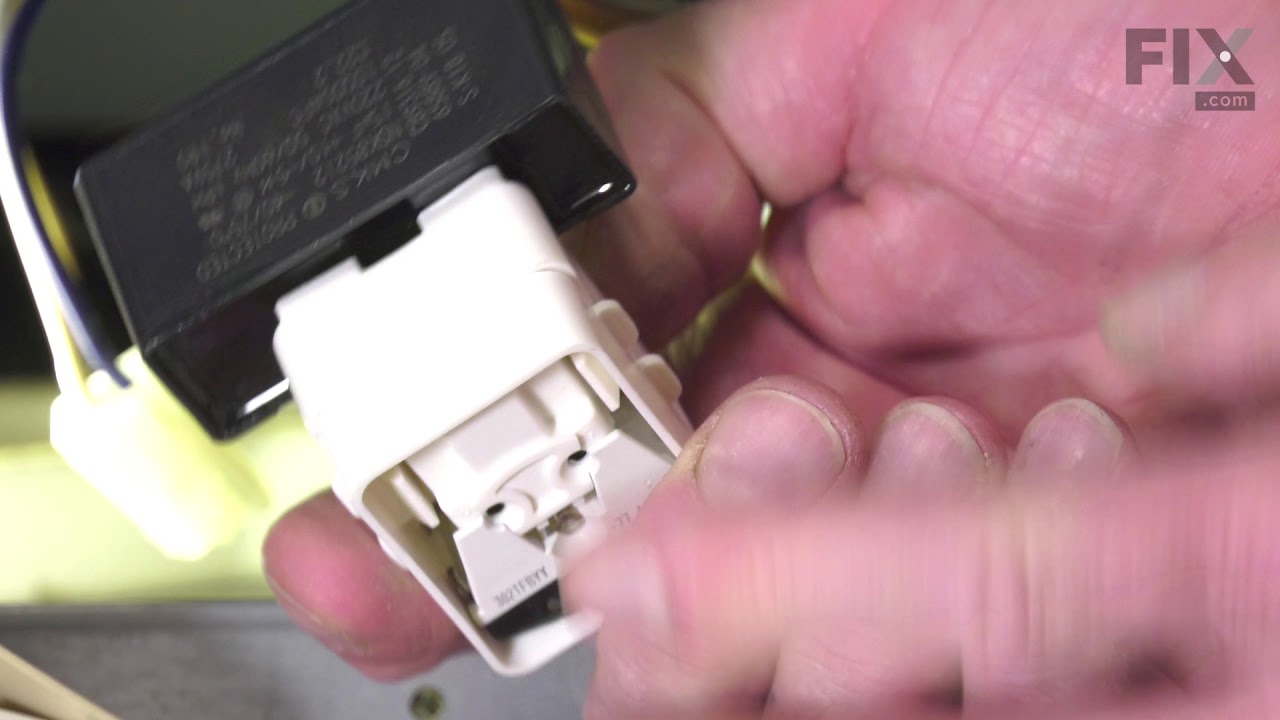

    This includes both the run capacitor and the start relay. The capacitor helps the compressor kick on and off while maintaining a constant temperature to keep things frozen in your freezer. The start relay boosts the compressor, and then shuts off as soon as the motor gets up to speed and the overload provides extra protection against excessive temperatures.

  • Works with the following brands
    Amana, Maytag, Kenmore, Whirlpool
  • Works with the following products
    Refrigerator, Freezer
  • Fixes the following symptoms
    Will Not Start, Fridge too warm, Fridge and Freezer are too warm, Freezer section too warm
  • Part Number Cross Reference
    Part# W10613606 replaces these:
    AP5787784, 14217273, 67003186, 67003764, 67005560, 67005561, 67005562, 8171210, 8208290, 8208368, C8931605, W10416065, W10613606VP
1 Installation Video
1 Related Part Questions and Answers
6 Installation Instructions Model Compatibility
Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

This includes both the run capacitor and the start relay. The capacitor helps the compressor kick on and off while maintaining a constant temperature to keep things frozen in your freezer. The start relay boosts the compressor, and then shuts off as soon as the motor gets up to speed and the overload provides extra protection against excessive temperatures.

  • Works with the following brands:
    Amana, Maytag, Kenmore, Whirlpool
  • Works with the following products:
    Refrigerator, Freezer
  • Fixes the following symptoms:
    Will Not Start, Fridge too warm, Fridge and Freezer are too warm, Freezer section too warm
  • Part# W10613606 replaces these:
    AP5787784, 14217273, 67003186, 67003764, 67005560, 67005561 ... Show more , 67005562, 8171210, 8208290, 8208368, C8931605, W10416065, W10613606VP Show less

Videos For installing this part.

Replacing your Compressor Start Device and Capacitor

Replacing your Compressor Start Device and Capacitor

Questions and Answers

Be the first to ask our experts a question about this part!

Run Capacitor
$65.09
Part Number: FIX11743364
This part helps the compressor kick on and off while maintaining a constant temperature to keep things frozen in your freezer.
$65.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.0 / 5.0, 6 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    Lenair from Stokesdale, NC
  • Parts Used:
    W10613606
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Pliers
was not cooling
Took back panel off and replaced part and it works really good
5 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Joseph from TRESCKOW, PA
  • Parts Used:
    W10613606
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver
Freezer initially stopped working. Then after trying to test and repair problem entire unit stopped cooling.
Went on line and found instructions how to test several parts of my Amana fridge and bring an electrician and mechanic in an industrial facility I know my way around machinery and tools. I tested the condenser and with my multi electrical tester it showed to be ok. So I took a chance and ordered the capacitor/ starter combo for my unit. It seemed better construction than the original and I installed it and the appliance has been running perfectly since. Thank You, I saved my self possibly over $1000 fixing it myself and not buying a new fridge.
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Jeffrey from Tacoma, WA
  • Parts Used:
    W10613606
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Pliers
Upper and lower stopped cooling
Checked out the different causes thru the site and determined what I had to order. The combo pack compressor start device/capacitor arrived about three days later. I had watched the video so it all looked pretty straight forward and fairly easy to replace the parts. Was a little different configuration between my old parts and the new ones but quickly figured it out. Simply unplugged the fridge, removed the back panel with the nut driver. Unplugged the lead-in wires and pulled out the old start device/capacitor with some long pliers..and simply reversed the process..easy as pie. Vacummed out all of the dust balls in back and the front bottom around the coils. Now it is cold and sometimes I can't tell even it is on, it's be so quiet now. My wife thinks I am the man plus saved $$$$ on a service house call.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Matthew from Hanahan, SC
  • Parts Used:
    W10613606
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Pliers
Clicking from freezer cabinet. Went into long defrost cycles, thawing ice and ice cream, then refreezing.
Took back panel off. Disconnected start device from compressor. Switched out new part. Reconnected, replaced panel, plugged fridge back in. No issues since.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    giacomo from colonia, NJ
  • Parts Used:
    W10613606
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Pliers
no ice no cold air
I removed the cover from the fridge with a nut driver,snapped out old capacitor put in new one plugged in and it started to run.Easy as that. The techician who came out to fix it said it would run me around $600 to repair it,and wanted $150 just to luck at it. With $70 I fixed myself.my wife could not be happier.. Thank you .
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    William from Sarasota, FL
  • Parts Used:
    W10613606
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Pliers, Screw drivers
clicking - Sears repair service man did not fix the problem
The replacement part was not exactly like the on in the unit. Therefore I used a vom meter to determine which leads to connect. Very pleased with the replacement part and the shipping speed.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
