Freezer Evaporator Fan Motor 115v 60hz WP10513803

Rated by 1 customers

?

A Bit Difficult

1- 2 hours

Ratings submitted by customers like you who bought this part.

?
$102.70
In Stock
Fix Number:
FIX11738242
Manufacturer #:
WP10513803
Manufactured by:
Whirlpool

Jump to:

Product Description

This evaporator fan motor is located in the back of the freezer, and circulates air over the refrigerator coils. These coils will convert the heat into cool air, which is then circulated.

  • Works with the following brands:
    Amana, Kenmore, Whirlpool, KitchenAid
  • Works with the following products:
    Refrigerator
  • Fixes the following symptoms:
    Fridge too warm, Noisy, Freezer section too warm
  • Part# WP10513803 replaces these:
    AP6005225, 10513801, 10513802, 10513803, 4343793, 4344304 , 4344567, 4344567@ Show less
Works with the following brands:
Amana, Kenmore, Whirlpool, KitchenAid
Works with the following products
Refrigerator
Fixes the following symptoms
Fridge too warm, Noisy, Freezer section too warm
Part Number Cross Reference
Part# WP10513803 replaces these:
AP6005225, 10513801, 10513802, 10513803, 4343793, 4344304, 4344567, 4344567@

Videos For installing this part.

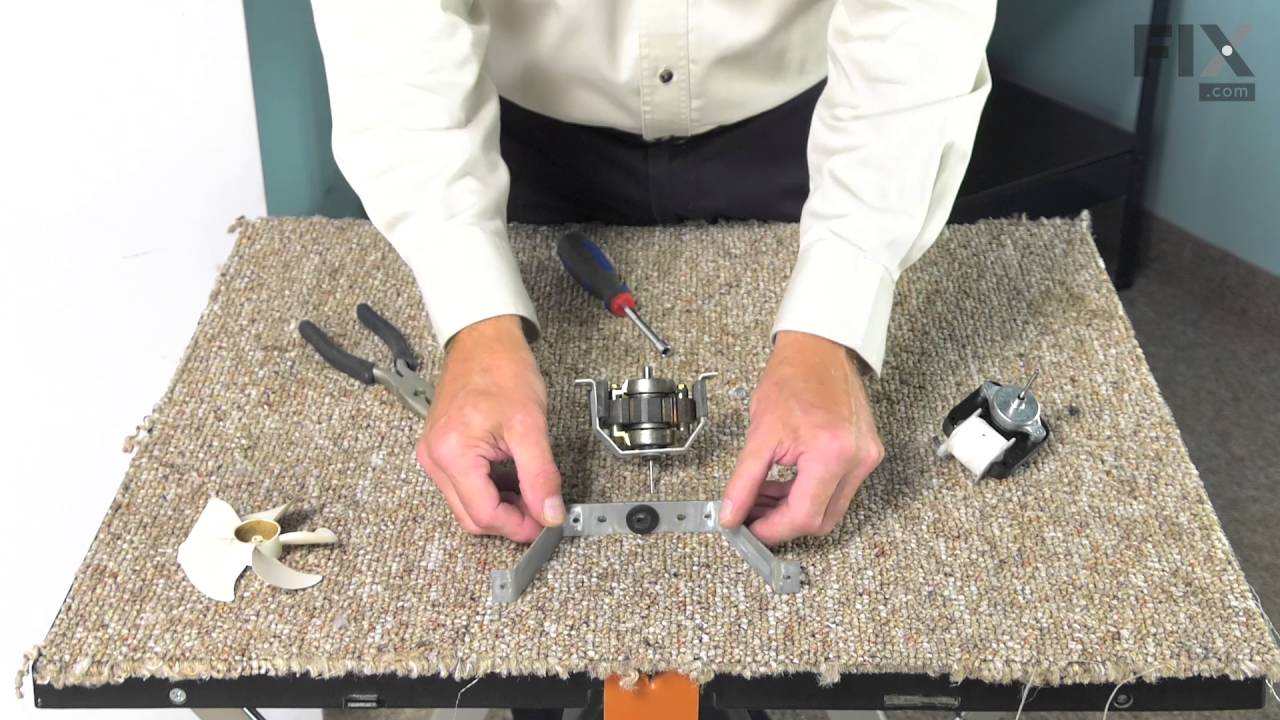

Replacing your Freezer Evaporator Fan Motor 115v 60hz

Replacing your Freezer Evaporator Fan Motor 115v 60hz

Questions and Answers

Be the first to ask our experts a question about this part!
