Part Location Diagram of WP10442411 Whirlpool Bimetal Defrost Thermostat
See part 12 in the diagram
Replacing your Amana Refrigerator Bimetal Defrost Thermostat
( Grid squares measure 1x1 inch )

Bimetal Defrost Thermostat WP10442411

Rated by 7 customers

?

Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$41.91
In Stock
Fix Number:
FIX11738231
Manufacturer #:
WP10442411
Manufactured by:
Whirlpool

Product Description

This refrigerator defrost thermostat will cut out at 55 degrees Fahrenheit and kick back in when the temperature drops to 20 degrees Fahrenheit. The thermostat itself is a little over an inch long while its extending wires are almost seven inches long.

Videos For installing this part.

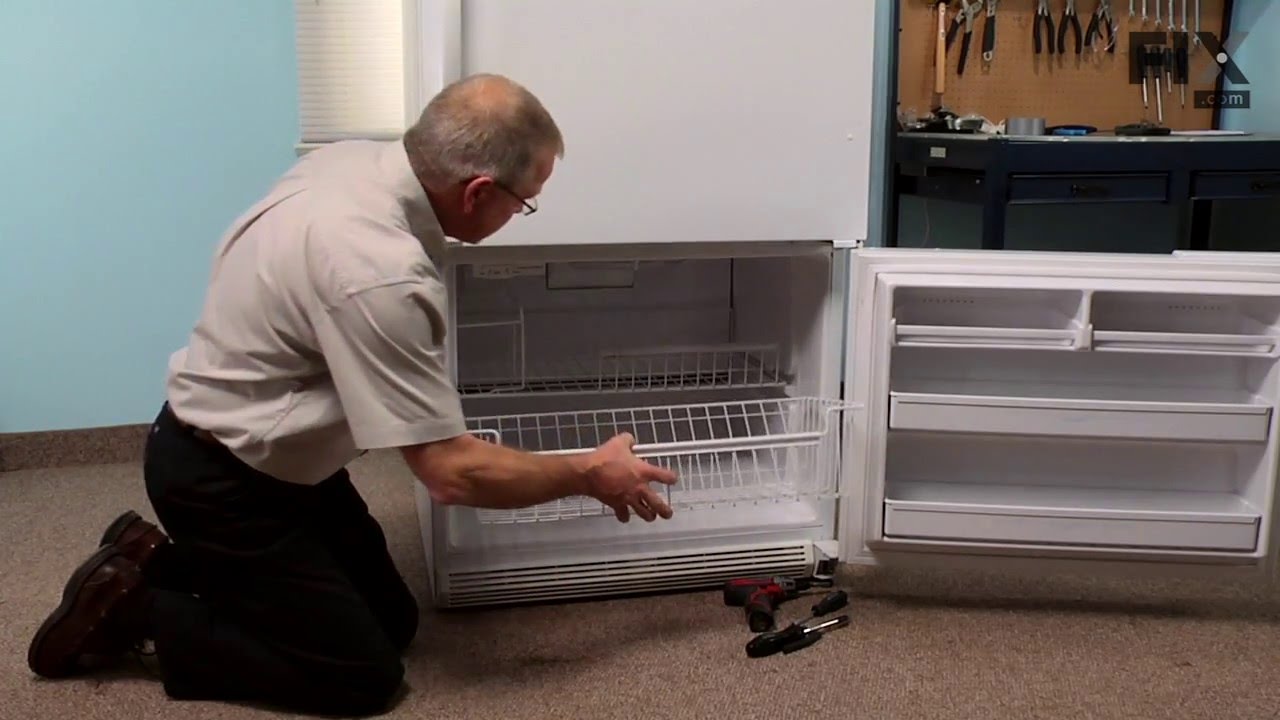

Replacing your Bimetal Defrost Thermostat

Replacing your Bimetal Defrost Thermostat

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

View More View Less
Defrost Timer Kit - 120V 60Hz
$50.90
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.9 / 5.0, 7 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
james from Minden, NV
Parts Used:
R0131577, WP10442411
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
WOULD NOT QUIT RUNNING
BIMETAL DEFROST THERMOSTATE- REMOVED 3 SCREWS HOLDING ICE MAKER AND UNPLUGED TO REMOVE IT. REMOVED BACK PANNEL TO REACH THERMOSTATE LOCATED IN UPPER RIGHT CORNER. HAD TO SPLICE ONE OF THE TWO WIRES. REPLACED DEFROST TIMER BUT BELIEVE IT WAS OK
2 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Mary E from Bala Cynwyd, PA
Parts Used:
WP10442411
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Socket set
both fridge and freezer were not staying cool/cold enough Frost appeared on the back wall of freezer
Most time consuming portion of this repair was actually defrosting the freezer. Since the thermostat had stopped working, the freezer had stopped defrosting. This is why fridge and freezer were no longer cooling well. We had paid someone to replace this part maybe 7 years ago and I think it cost well over $200! I remember supplying the repair guy with my hair dryer and my towels to do this work and the majority of the time I spent on his was probably for the defrosting! The part replacement itself takes literally 5 minutes. If you are even the slightest bit handy with a tool and own a blow dryer and some old towels, you're all set! The great videos on this site and a big help too! Thanks to this site t and everyone before me who posted tips! My fridge is cooling and freezing like new and it only cost me a total of $25.46!!!
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Wendell from Decatur, GA
Parts Used:
WP10442411
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
Refrigerator not cooling
Took panel off in freezer. Disconnected the old part and installed the new part. Put panel back on. That was it.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Steve from Pflugerville, TX
Parts Used:
WP10442411
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
Freezer was frosted - ice melted and dripped down
My freezer was frosted and temperature wasn't cold enough which caused the ice to melt and dripped down, then the door pushed out and ajar. I have to defrost it every 2 days for it to work again. I read some of the comments here and watched the repaired videos. I decided to change both the defrost thermostat (which turned out is the cu lprit to the problem) and the timer. And the refrigerator is working like new now. Thank a lot. The order experience with this site is amazing. From start to finish, easy and comprehensive search engine, shipping was fast and video installation instruction was to the point. 5 stars!!!
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Kevin from Northville, MI
Parts Used:
WP10442411, WP10428409, WR50X10010
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
Cold freezer - warm fridge
I actually used NO parts! When I removed the coil cover the evap coils had ice ( fridge was off two hours before I arrived) i cut a tywrap holding the wires and saw it! The defrost thermostat that is in series circuit to the defrost heater had come UN Plugged. Plugged it back in and Voila heater worked finished melting ice, all good. P arts I bought are now collecting dust on top of the fridge. Since Defrost was iffy-sometimes yes sometimes no, I just bought the parts. Lesson , before buying parts might be worth having a look see for say, unplugged defrost heater thermostat.. :-/
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
albert from sayreville, NJ
Parts Used:
WP10442411
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set
ice build up in freezer/ not freezing
removed screws holding back panel. used hair dryer to remove all ice. new thermostat had different connectors. cut off connectors from old one and connected them to the one. snapped back on to tube. works as good as new. this was the second time I replaced this part in about 5 years
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Thomas from Genoa, IL
Parts Used:
WP10442411
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
Not cooling but freeze
Defrost vaporizer system,checked vaporizer fan,checked evap heater continuity ,finally discovery that bimetal defrost thermostat failed test . Replaced and refrgertor is back to normal operation.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
