389217-1-M-Whirlpool-814399 -Receptacle Kit

( Grid squares measure 1x1 inch )

389217-1-S-Whirlpool-814399 -Receptacle Kit

389217-2-S-Whirlpool-814399 -Receptacle Kit

389217-1-S-Whirlpool-814399 -Receptacle Kit 360 view

Receptacle Kit

Rated by 2 customers

Very Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

$38.11

Fix Number: FIX389217

Manufacturer #: 814399

Manufactured by: Whirlpool

Product Description

This surface burner receptacle assembly comes with the receptacle, two wires, two wire nuts, and two pieces of heat-shrink tubing.
Works with the following brands

Whirlpool, Roper, Estate, Amana
Works with the following products
Range, Cooktop
Fixes the following symptoms

Element will not heat
Part Number Cross Reference

Part# 814399 replaces these:

AP3030713, 725224, 814399, 14210242, 814399, 814399VP

1 Installation Video

1 Related Part Questions and Answers

2 Installation Instructions Model Compatibility

Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

This surface burner receptacle assembly comes with the receptacle, two wires, two wire nuts, and two pieces of heat-shrink tubing.

Works with the following brands:

Whirlpool, Roper, Estate, Amana
Works with the following products:
Range, Cooktop
Fixes the following symptoms:

Element will not heat
Part# 814399 replaces these:

AP3030713, 725224, 814399, 14210242, 814399, 814399VP

Videos For installing this part.

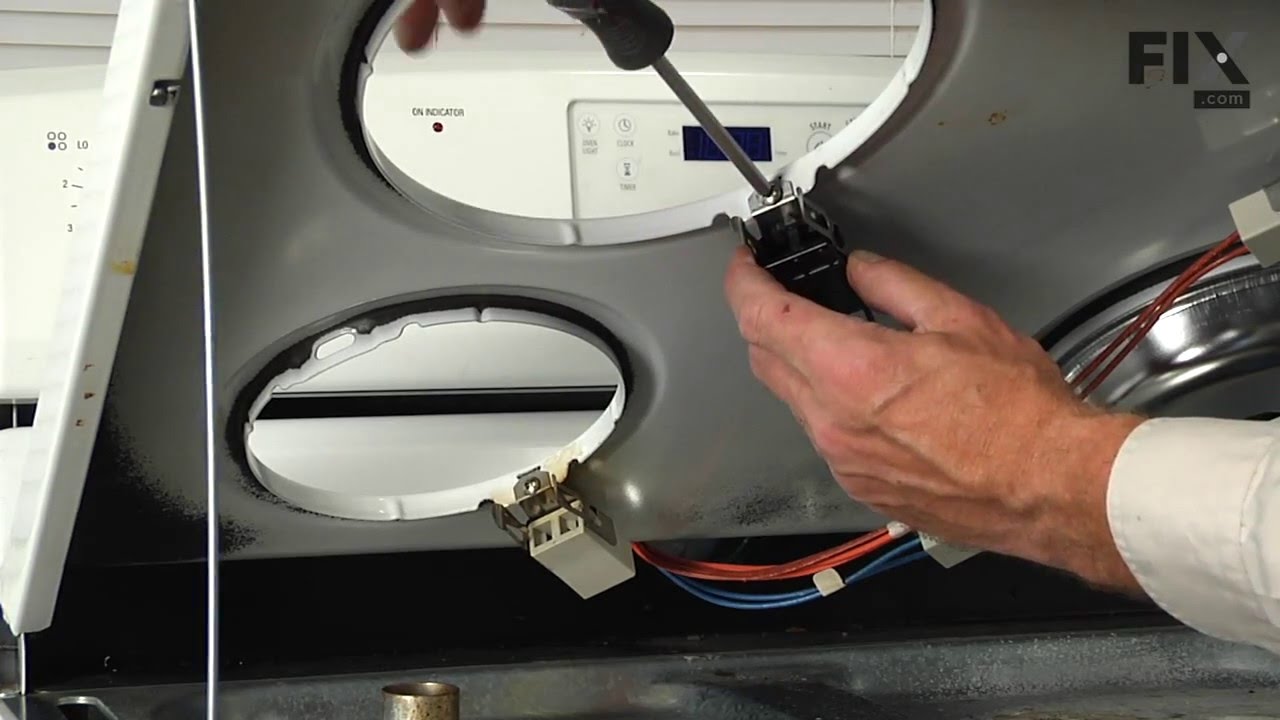

Replacing your Receptacle Kit

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Related PartsAdditional or alternate parts to consider.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 5.0 / 5.0, 2 reviews.

< Prev
1
Next >

Sort by:

Customer:

James from hemlock, MI
Parts Used:
814399
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers

electric burners wood not work all the time

Unplug the range.raise the top of the range.take out the screws holding the receptacle.cut the 2 wires for each receptacle.s;ipped the shrink tubing over the wires. spliced in the new wires one with the wire nuts that came with it.Heated the shrink tubing with a lighter.but don't get them to hot as they will burn,just hot enough to shrink it.screw the receptacles back on the range top,close the range,plug the range back in,turn the burner on to make sure it is working.Done. They work as good as new.

2 of 2 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Gilles from Holiday, FL
Parts Used:
814399, WP3148953
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers

The stove element was not eating

Replace parts

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

< Prev
1
Next >

Model Compatibility

This part works with the following models:

Fix Number: FIX389217
Manufacturer Part Number: 814399

Whirlpool

4RF302BXEQ1
