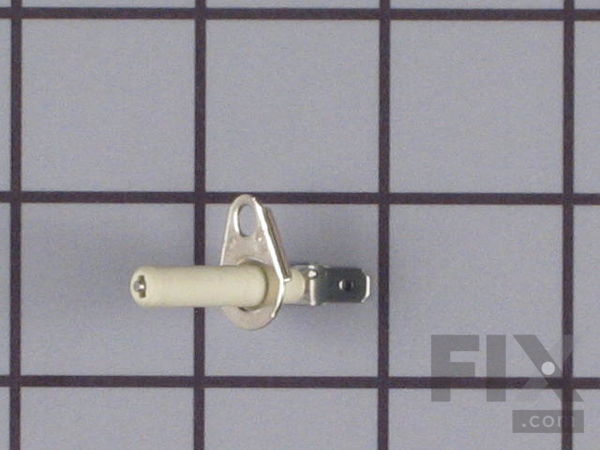

Part Location Diagram of WP8523793 Whirlpool Surface Burner Spark Igniter
See part 16 in the diagram
( Grid squares measure 1x1 inch )

Surface Burner Spark Igniter

Rated by 1 customers

?

A Bit Difficult

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$50.08
In Stock
Fix Number:
FIX11746068
Manufacturer #:
WP8523793
Manufactured by:
Whirlpool

Product Description

This part helps your burner ignite and produce flame.

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.8 / 5.0, 1 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Jim from SAN CLEMENTE, CA
Parts Used:
WP8523793
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Wrench set
The spark ignitor was not firing correctly.
1. Turn off gas, unplug electrical.
2. Remove grills, burner tops, and 2 screws each burner.
Note: screws will break. Ensure you have new office holders, 3 different types/sizes, and new screws #8--3/4".
3. Remove office holders from gas lines and discard after you verify new parts.
4. Install office holders onto gas lines.
5. Install range top.
6. Install burner bases with 2 screws each.
7. Install burner caps, grills.
8. Turn on gas, connect electrical.
6 of 8 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
