Dual Surface Element - 2500w/1200w

Works With Model YKESS907SS03!

Rated by 5 customers

A Bit Difficult

30 - 60 mins

Ratings submitted by customers like you who bought this part.

$210.57

Fix Number: FIX11764902

Manufacturer #: W10823692

Manufactured by: Whirlpool

Works With Model YKESS907SS03!

Product Description

This is the replacement large surface element for your cooktop or range. It is approximately 10-inches in diameter and is 1200/2500 watts. The large surface element is installed under the cooktop and heats up the area directly above it. You will need to replace the element if it does not heat up properly. As you will be working around electricity, be sure that your range is disconnected from power before you begin this repair. This is an OEM part sourced directly from the manufacturer.
Works with the following brands

KitchenAid, Whirlpool, Maytag, Jenn-Air
Works with the following products
Range, Cooktop
Fixes the following symptoms

Element will not heat, Will Not Start
Part Number Cross Reference

Part# W10823692 replaces these:

AP6030922, 3191723, 4453909, 74008897, 74011551, 7406P403-60, 7406P431-60, 8272563, 8523693, 9756697, 9759351, WP4453909, WP74011551

1 Installation Video Questions and Answers

5 Installation Instructions Model Compatibility

Product Description Part Videos Questions and Answers Installation Instructions Model Compatibility

Product Description

This is the replacement large surface element for your cooktop or range. It is approximately 10-inches in diameter and is 1200/2500 watts. The large surface element is installed under the cooktop and heats up the area directly above it. You will need to replace the element if it does not heat up properly. As you will be working around electricity, be sure that your range is disconnected from power before you begin this repair. This is an OEM part sourced directly from the manufacturer.

Works with the following brands:

KitchenAid, Whirlpool, Maytag, Jenn-Air
Works with the following products:
Range, Cooktop
Fixes the following symptoms:

Element will not heat, Will Not Start
Part# W10823692 replaces these:

AP6030922, 3191723, 4453909, 74008897, 74011551, 7406P403-60 ... Show more , 7406P431-60, 8272563, 8523693, 9756697, 9759351, WP4453909, WP74011551 Show less

Videos For installing this part.

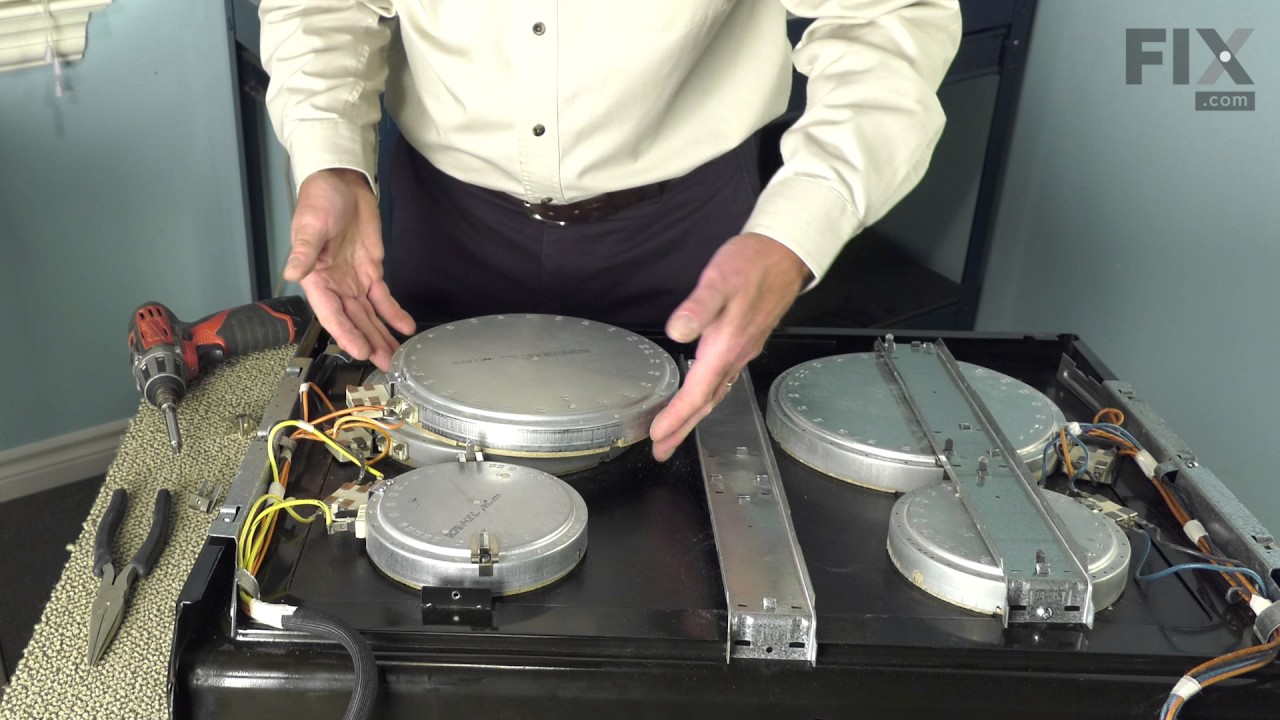

Replacing your Dual Surface Element - 2500w/1200w

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.7 / 5.0, 5 reviews.

< Prev
1
Next >

Sort by:

Customer:

David from Chandler, AZ
Parts Used:
W10823692
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers

small burner element was not working on our front dual burner

we youtubed it. ordered the part. we unscrewed the glass cooktop. un pluged all the electrical wiring from the stove. put the top upside down on a pad on the table. Took a picture of how all the wiring, screws and parts were set before we started to unscrew and unplug. removed the braces holding the elements in place, un hooked the bad element. hooked up the new one. we did this one wire at a time as to not mix them up. realigned the braces (the photos came in real handy here) screwed them back in place, put the cooktop back on the stove , reattached all the wiring, gave it a quick heat up test to make sure it worked and screwed it back in place. :)

9 of 9 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Mark from Corsicana, TX
Parts Used:
W10823692
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver

Dual Element Burner was losing Heat / Weekened over time

This a Countertop Range from Magtag (almost 10 years old). Turned off circuit breaker. Pulled off knobs. Pushed Range top up from the bottom to lift out of counter (note: there was no anchors (screws) to counter) . Placed range on top of boards/slates over the cut out hole. Used Nut Driver to remove 12 screws (3 on each side) that attach Glass top to the bottom base box unit. Note: the Glass top fits down on the inside of the base box and In my case really tightly (had to cut free some insulation tape with knife/razor blade to free the glass top from base box), Took two people to separate glass top unit from base unit. When lifting glass top unit out of the base box - realized needed to remove two more screws in the back left side that holds/position the electrical cable in place. Also had to remove 2 more screws in the front of the base box to allow the glass top to be lifted high enough to get to the burner elements. Finally could now changed out burner element - re-taped with new insulation tape and put everything back together. It all worked but it was more difficult than I thought.

1 of 2 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

James F from Cotuit, MA
Parts Used:
W10823719, W10823692
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers

middle radiant element of in both elements quit working

The replacement was really easy once you are able to get the top off the range. Unplug the power source after pulling the unit from the counter space. there are 3 screws on each side holding the top in place. remove the screws and lift the top so you can unplug the elements from their harness. this was a bit difficult as the top is heavy and awkward. used the bock of wood to hold the top high enough to unplug the elements. I then turned the top upside down on the counter. before removing the old element I unplugged each wire on the unit and plugged each one onto the new element to be sure they were in the right position. Then remove the screws and brackets holding the old element in place. Secured the new elements turned the top back up plugged the elements in aligned the top in place secured with screws plugged in the power cord and put unit back in place on counter. the only difficult part I found was trying to hold the top up to unplug the elements and plug them back in that is wre the block of wood came in handy, it supported the weight of the top while connecting the elements.

1 of 2 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Lucy from Destrehan, LA
Parts Used:
W10823692
Difficulty Level:
Very Difficult
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers

Dual burner did not work.

Could not repair because the new part did not have the correct connections. Also, the new part was not a dual burner it was a large burner.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Howard from Centreville, VA
Parts Used:
W10823692
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers

Inside element failed

remove old replace with new...

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

< Prev
1
Next >

Model Compatibility

This part works with the following models:

Fix Number: FIX11764902
Manufacturer Part Number: W10823692
