$175.81
In Stock
Fix Number: FIX11747304
Manufacturer #: WP9760774
Manufactured by: Whirlpool
Works With Model KESS907SSS06!
Product Description
This broil element is found on the roof of the oven. The broil element is at the top of the oven and supplies the heat to broiling. 14" x 15" with 1-3/8" inserts.
This part works with the following brands: Whirlpool, Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric.
Works with the following brands
KitchenAid, Crosley, General Electric, Maytag
Works with the following products
Range, Wall Oven, Microwave Oven Combo
Fixes the following symptoms
Element will not heat, Little to no heat when broiling, Little to no heat when baking, Oven not heating evenly
This broil element is found on the roof of the oven. The broil element is at the top of the oven and supplies the heat to broiling. 14" x 15" with 1-3/8" inserts.
This part works with the following brands: Whirlpool, Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric.
Works with the following brands:
KitchenAid, Crosley, General Electric, Maytag
Works with the following products:
Range, Wall Oven, Microwave Oven Combo
Fixes the following symptoms:
Element will not heat, Little to no heat when broiling, Little to no heat when baking, Oven not heating evenly
Part# WP9760774 replaces these:
AP6014070, 8301514, 9760774
Videos For installing this part.

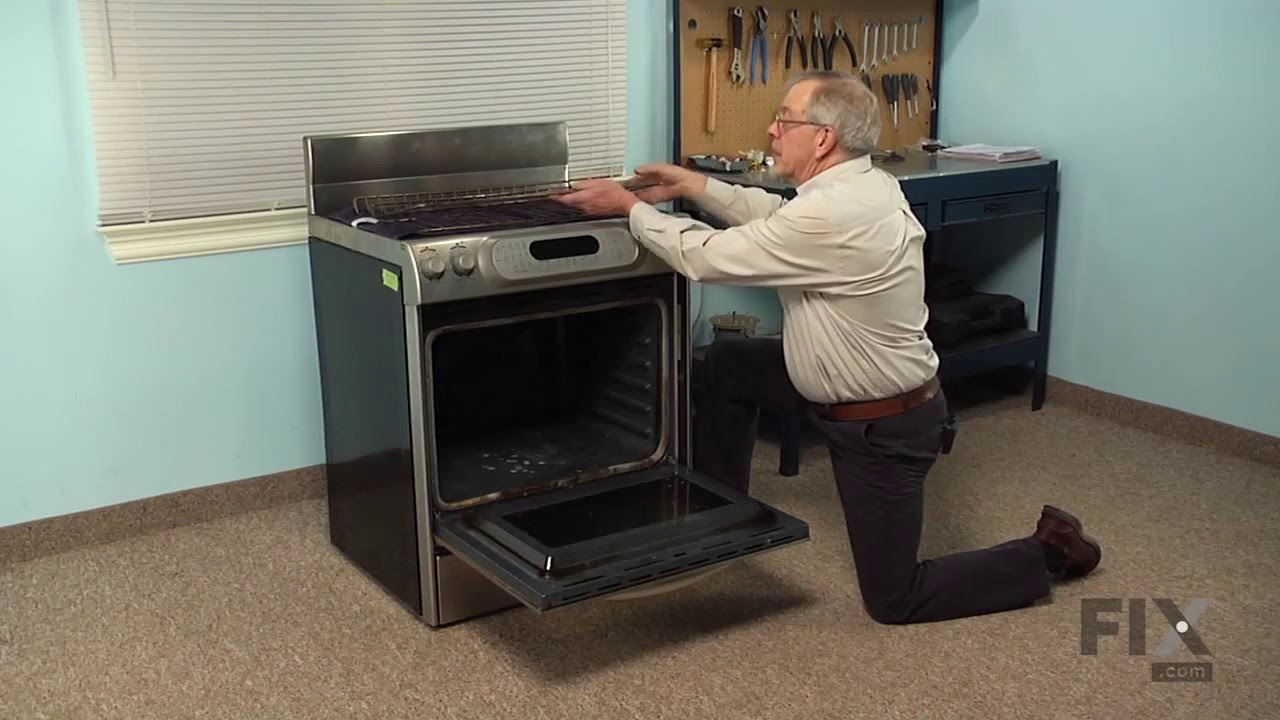

Replacing your Element, Broil
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
1 question answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched. Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Ellis
June 10, 2022
Top broler element front loop section is saging maybe 1 1/2 in.. element works fine but burn hazard to hand.. was thinking a additional support is needed to hold up element when red hot.. pretty long span.. thanks Ellis
For model number Kems378sbl04
Hello Ellis, Thank you for your inquiry. We have researched the model number you have provided and the support is only available as part of the element itself, part# FIX11747304, and is held to the top of the oven by a screw, part# FIX11742539. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Instead of removing the whole oven unit from the cabinet, I was able to replace the element from inside the oven. From video instructions, I removed the old element as directed, but detached the electric connections to the old element from inside the oven and taped the wires to the inside of the oven so the wire connections would not slip back behind the back wall of the oven. I think this saved a lot of time. Connecting the new element to the wire connections was a little tricky, but I was able to do it and fasten in the new element as shown in the video.
Turn off circuit breaker; remove oven door; remove racks; 4 Phillips screws (2 at oven top, 2 oven back wall). Remove top 2 first to free element brackets and top reflector pan then reinsert screws to hold top reflector pan in place; Remove 2 back wall screws and wriggle element to expose wiring (2 pairs wiring tabs red and blue wires per pair); fasten wires w/tape to prevent their retracting into rear oven; remove wiring tabs from old element; taking care to have new element in correct orientation fasten wiring tabs; remove tape and wriggle new element in place; align element and top reflector pan and reinsert tighten back wall screws; Remove top screws, align element and reflector and reinsert screws and tighten; replace racks; mount oven door; power on; check new element.
