Part Location Diagram of 316436001 Frigidaire Infinite Burner Switch
See part 54A in the diagram
Replacing your Frigidaire Range Infinite Burner Switch
( Grid squares measure 1x1 inch )

Infinite Burner Switch 316436001

Works With Model 00462048A!
★★★★★
★★★★★
2 Reviews

Rated by 19 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$30.89
In Stock
Fix Number:
FIX1145040
Manufacturer #:
316436001
Manufactured by:
Frigidaire
Works With Model 00462048A!

Product Description

The infinite burner switch is used to control the temperature of the burner element on your stove top. This model is for the larger, eight-inch element. If your burner is not heating up or has uneven temperatures, you should first check with a multimeter to see if the issue is with the element or with the infinite burner switch. If you need to replace the switch, first disconnect the power supply to your range. To change this part, you will need access to the back panel, so you will need to pull the appliance out from the wall. To complete the repair, you will need a pair of needle nose pliers, a number one square head screwdriver, and a Philips screwdriver. The specifications for this genuine OEM part are that the switch is 240-volt, 2100-2600 watt, and 8.8-10.8 amp.

Videos For installing this part.

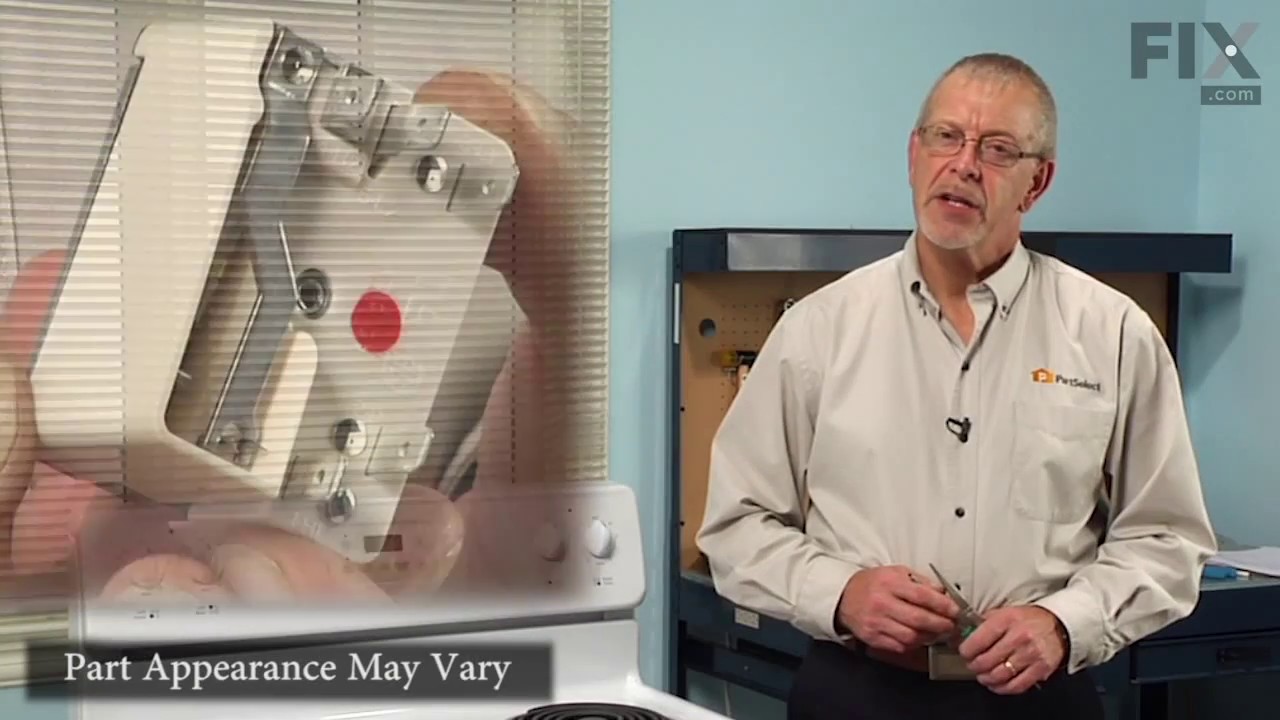

Replacing your Infinite Burner Switch

Replacing your Infinite Burner Switch

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

2 questions answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
John
April 7, 2022
How to replace top 8in. element
For model number CRE3860GWWB
Fix.com logo
Hello John, Thank you for the question. We suggest watching the How to Video for the element. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
Diane
September 18, 2023
Oven is giving error code F10
For model number Model No. FFEF3018LWF
Fix.com logo
Hi Diane, thank you for contacting us. The F10 error on your range is an overheating fault. It means the oven is going above the set temperature and is not cycling properly. This error is most likely caused by a failed temperature sensor, part number PS1528542, which may need to be replaced. We hope this solves your problem!

Was this helpful?
Thank you for voting!
Related Parts:
View More View Less
Infinite Burner Switch - Small Element - 240V
$60.95
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.3 / 5.0, 19 reviews.
  • 1
  • 2
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Dan from RICEBORO, GA
Parts Used:
316436001
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
8" burner on stove would go to high heat even if set on low.
Pulled stove out.
Disconnected plug.
Removed back upper cover (6 screws).
Removed upper and lower wiring harness (quite easy).
Removed burner knob (on front of stove), removed two screws holding infinite switch.
Removed old switch, replaced with new.
Replaced screws at front.
Replaced burner knob. ... Read more />Reinstalled back plate, plug in, good to go.
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Thomas from LEWISBURG, TN
Parts Used:
316436001
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Unit would automatically go to high setting no matter what setting was selected.
Unplug range
Remove knob on front of stove for which ever cap is defective
Remove top back cover
Remove screws that were under knob on front of range which secures burner switch to range.
Remove defective switch
Match new switch with defective switch to insure that they are plugged in the same.
Mount new swi tch and knob
Replace rear cover
Plug in
Try it out
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Long from Creedmoor, NC
Parts Used:
316436001
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers, Screw drivers
burner did not heat up
I troubleshot and found the burner switch output pin burned out/or broke. It took me 15 minutes to replaced the burner switch. very easy to replace. if any one has problem with his/her rang, do not throw your rang away. find out what's wrong with it and repair yourself..
3 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Larry from Norwich, OH
Parts Used:
316436001
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Large burner had no control just red hot.
It was so easy just like your video showed.Thanks for the help.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Timothy from Lehigh Acres, FL
Parts Used:
L304458797, 316442301, 316436001, 5303935058
Difficulty Level:
Really Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
Heating element was intermittently over heating and switch was sparking
Followed the repair instructions at each of the parts web pages. Also found that the instructions at this location were helpful to understand why the new switch did not look like the original switch.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
CONNIE from WYTHEVILLE, VA
Parts Used:
316075103, 316436001
Difficulty Level:
Very Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
Bottom Bake Element burned out and my 8 inch stove eye would get stuck on high heat.
I flipped the breaker to my range then unplugged it from the wall. I removed my oven door and bake racks for easy access. Bake element was as easy as removing two screws, unplugged 2 wires and removed the old element. Attached wires and screws to the new element, slid the bake racks back in and attached the oven door. Since I had to repa ir the Infinite Burner Switch I left the range unplugged until that project was finished. I removed 5 screws from the top back plate covering the Burner switches. Gently pulled the knob off the front of the range. Removed the 2 screws from the Burner switch and went to the back for the repair. I pulled out my new Burner switch to compare with the old piece and found that my new replacement part looked different from the old part. I did call for help because there was a huge difference in appearance. I was given a phone number to call because the part number was coming up to be the right product for my Model number. I called the manufacture and was told that it was the right part to which I asked if it was a replacement for the original part since mine looked different. It indeed was a replacement but they couldn't tell me how to hook it up so they gave me another number to call. This was a service center and they couldn't advise me on the proper hookup. Now mind you the old Switch has codes like H1, H2, P and so on, so I was thinking that all I had to do was look for the same codes on the replacement part and place each wire that I removed from to old to the new being mindful to attach to the same code. This is where I chickened out and let my husband do that ....just in case.....lol. After placing all wires to the new part, I attached it back to the range with the two screws and pushed the knob back on. Husband attached the back plate with the 5 screws, plugged range back up and turned the breaker back on. We are now cooking as if we had a new range! My advice is don't be afraid to TRY!!!!!! Saved my family a huge repair bill.
1 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
CHARLES from LENOIR, NC
Parts Used:
316436001
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Screw drivers
When burner turned down from high to simmer, remained at high.
Removed back panel . removed knob and switch. connected new switch. reinstalled switch, knob and back panel. Burned worked fine.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
hon from cordova, TN
Parts Used:
316436001
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Screw drivers
The new part is bigger than the old part, not exactly the same shape .
The new switch has the same terminal mark like L1,P1,L2 etc. The terminals are not at the same location of the switch as the original one. However, I just removed and reconnected the wires in accordance with the terminal marks and it worked perfectly. I saw the same manufacturer name in the old and new switch and this gave me the confide nce that it will work.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
heather from portland, OR
Parts Used:
316436001
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Pliers, Screw drivers
rear 8 inch burner wouldn't heat up
Unplugged the stove from the wall, from the back of stove removed the 3 screws holding the upper cover of stove to access the infinite burner switch. Took a pair of pliers and simply removed the five electric connectors from old switch and replaced them on the new switch. There were 5 in all. I let the part hang with all the new connector s attached. I removed the 2 screws holding the old switch to the stove. removed old switch and screwed the new switch in. replaced knob,back plate and plugged the oven back in. Easy repair would have cost bunches to hire someone else. It took 15 minutes tops! BTW I have never worked on a stove before! Yes it was a success!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Michelle from Piedmont, SC
Parts Used:
316075103, 316436001
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Cooktop Element wouldn't turn off, needed switch. Bake element dissolved when cooking, needed new
The switch was very easy. Just a few screws to take out of the rear panel, then pull the wires off the old and put n new. I did them one at I time so I wouldn't have to keep track. Recommend bright light or flashlight, the imprint for which connector it is is really hard to read. Works same as original, it's just laid out differently so you need to look at the label (P, L1, etc) before you move the wire. If it doesn't work right away, look at the other switch of the same size that works to make sure you got the right wire on the right prong (I initially used the wrong one, the letter I could read but the 1 and 2 are tiny). Works great now.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
  • 2
Customer Reviews
Average Rating: (2 Reviews)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 5
    2
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Model Compatibility

This part works with the following models:
Fix Number: FIX1145040
Manufacturer Part Number: 316436001
Brand
Model Number
Description
Frigidaire
00462048A
Range - Range
Frigidaire
00462048B
Range - Range
Frigidaire
00462048C
Range - Range
Frigidaire
00462048D
Range - Range
Frigidaire
00462048E
Range
Frigidaire
20462052A
Range - Range
Frigidaire
20462052B
Range - Range
Frigidaire
20462052C
Range - Range
Frigidaire
20462052D
Range
Frigidaire
20462052E
Range
Tappan
31-2232-00-01
Range - Free Standing, Electric
Tappan
31-2232-00-02
Range - Free Standing, Electric
Tappan
31-2232-00-03
Range - Free Standing, Electric
Tappan
31-2232-23-01
Range - Electric
Tappan
31-2232-23-02
Range - Free Standing, Electric
Tappan
31-2232-23-03
Range - Free Standing, Electric
Tappan
31-2442-00-01
Range - Electric
Tappan
31-2442-00-02
Range - Electric
Tappan
31-2442-23-01
Range - Electric
Tappan
31-2442-23-02
Range - Electric
Tappan
31-2452-00-01
Range - Electric
Tappan
31-2752-00-01
Range - Free Standing, Electric
Tappan
31-2752-00-02
Range - Free Standing, Electric
Tappan
31-2752-00-03
Range - Free Standing, Electric
Tappan
31-2752-23-01
Range - Free Standing, Electric
Tappan
31-2752-23-02
Range - Free Standing, Electric
Tappan
31-2752-23-03
Range - Free Standing, Electric
Tappan
31-2852-00-01
Range - Electric
Tappan
31-2852-00-02
Range - Electric
Tappan
31-2852-00-03
Range - Electric
