Radiant Surface Burner Element 1500W

Works With Model ART5400L!
★★★★★
★★★★★
1 Review

Rated by 1 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$97.78
In Stock
Fix Number: FIX11764909
Manufacturer #: W10823699
Manufactured by: Whirlpool
Works With Model ART5400L!
  • Product Description

    This surface element is made for under glass set-ups and supplies the heat to a cooking area on top of the range. It has an outside diameter of approximately 7 inches (1500 watts), and is a genuine OEM part sourced directly from the manufacturer. Before you replace your faulty element, make sure the element is cool, and the power is disconnected from your range.

  • Works with the following brands
    Amana, KitchenAid, Whirlpool, Kenmore
  • Works with the following products
    Range, Cooktop
  • Fixes the following symptoms
    Element will not heat
  • Part Number Cross Reference
    Part# W10823699 replaces these:
    AP6030929, 0306215, 0314911, 0316126, 31794601, 31939001, 32082901, 74008218, 8053604, 8272564, 8523697, D8598805, D8603106, WP8523697, Y0306215, Y0312919, Y0314911, Y0316126
1 Installation Video Questions and Answers
1 Installation Instruction
1 Customer Review Model Compatibility
Product Description Part Videos Questions and Answers Installation Instructions Customer Reviews Model Compatibility

Product Description

This surface element is made for under glass set-ups and supplies the heat to a cooking area on top of the range. It has an outside diameter of approximately 7 inches (1500 watts), and is a genuine OEM part sourced directly from the manufacturer. Before you replace your faulty element, make sure the element is cool, and the power is disconnected from your range.

  • Works with the following brands:
    Amana, KitchenAid, Whirlpool, Kenmore
  • Works with the following products:
    Range, Cooktop
  • Fixes the following symptoms:
    Element will not heat
  • Part# W10823699 replaces these:
    AP6030929, 0306215, 0314911, 0316126, 31794601, 31939001 ... Show more , 32082901, 74008218, 8053604, 8272564, 8523697, D8598805, D8603106, WP8523697, Y0306215, Y0312919, Y0314911, Y0316126 Show less

Videos For installing this part.

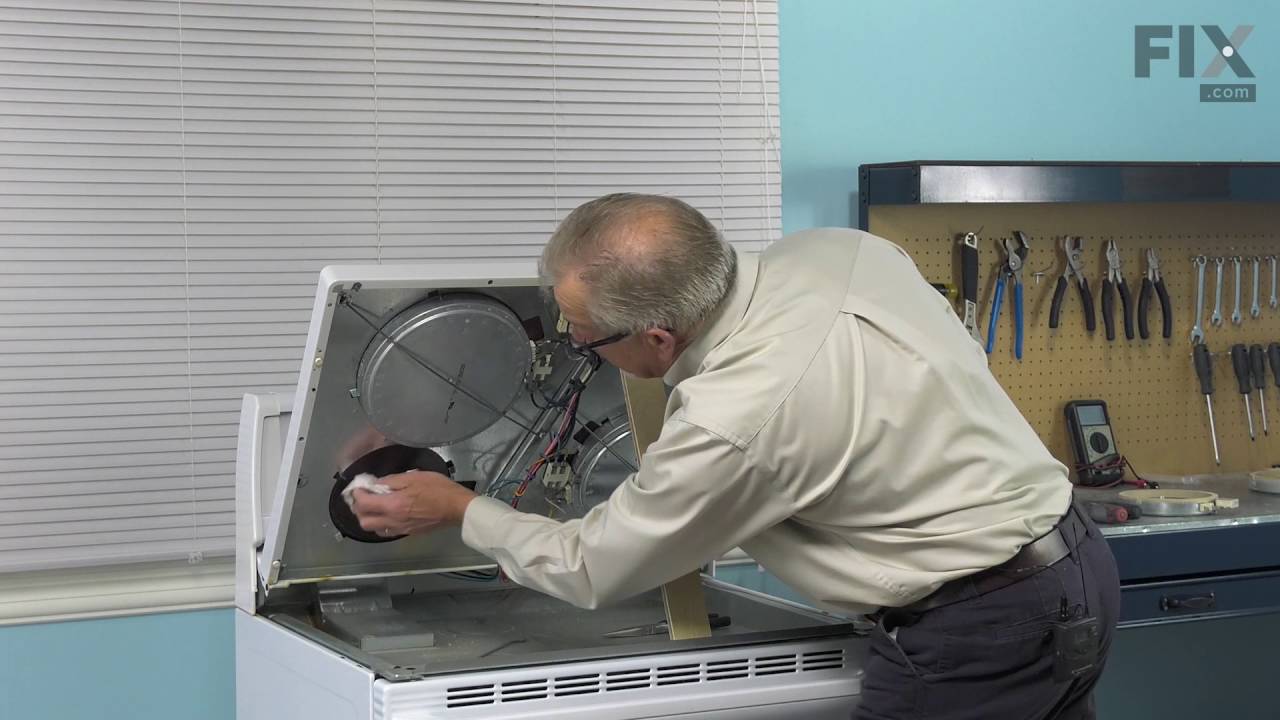

Replacing your Radiant Surface Burner Element 1500W

Replacing your Radiant Surface Burner Element 1500W

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.4 / 5.0, 1 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    William from Port St. Lucie, FL
  • Parts Used:
    W10823699
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers
Old element was burned out.
Pulled Range out, removed control panel ( 3 screws ) removed glass on top of stove, disconnected wires from old element , Replaced with new element, replaced glass on top of stove, replaced the control panel. Finished.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
