See part 39 in the diagram

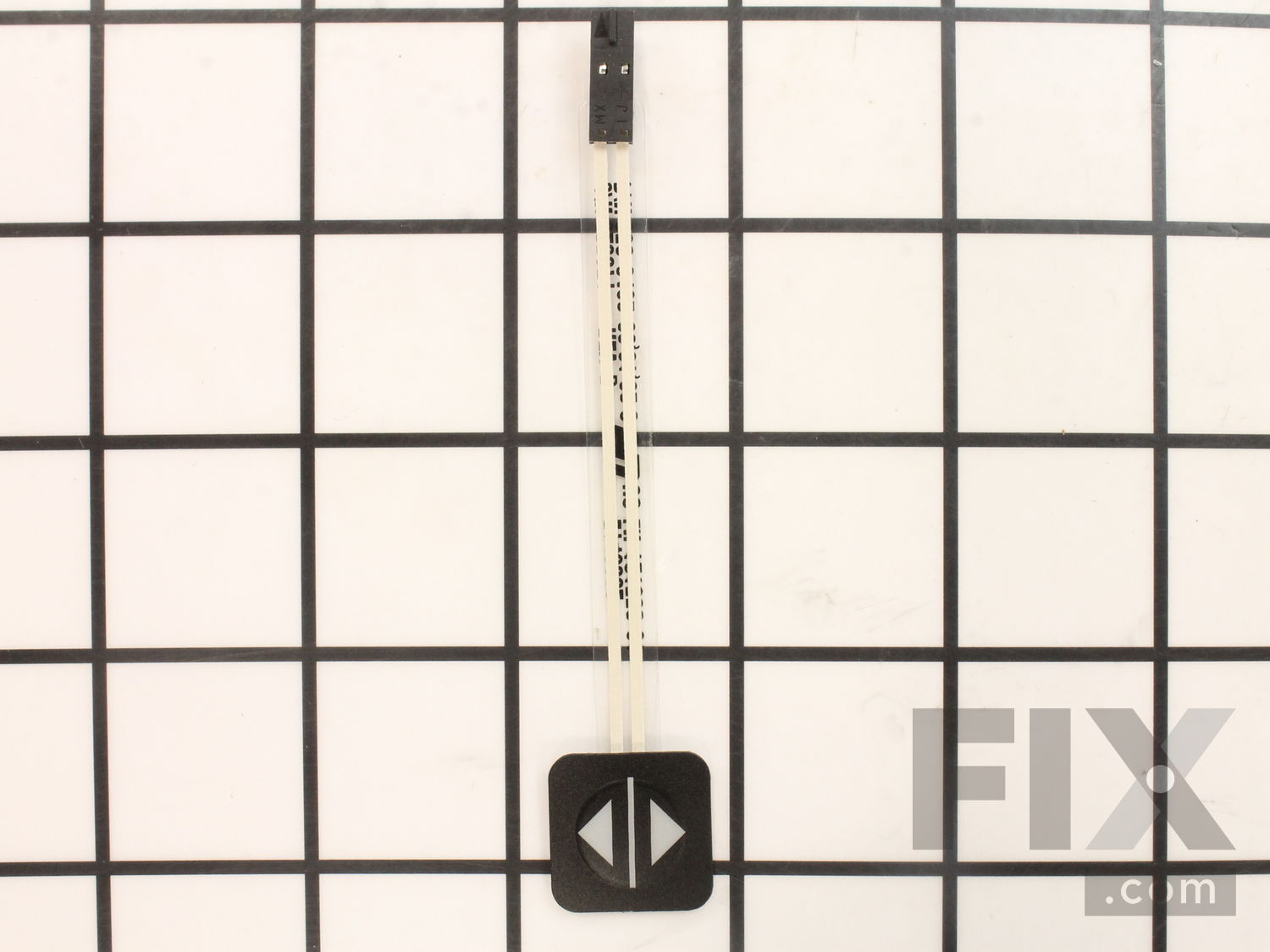

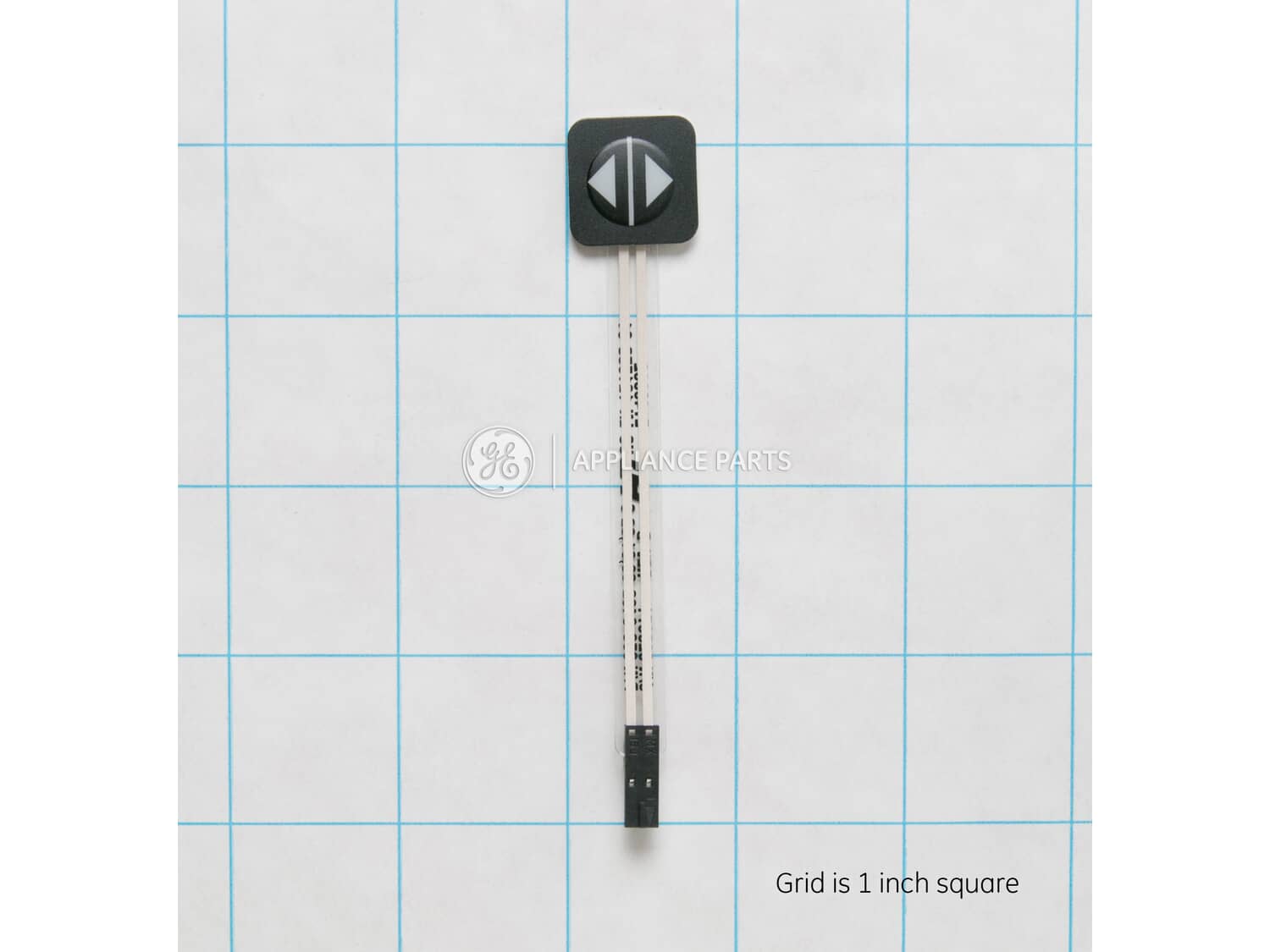

( Grid squares measure 1x1 inch )

Membrane Switch

$89.81
Fix Number: FIX953533
Manufacturer #: WB24X10115
Manufactured by: GE

Product Description

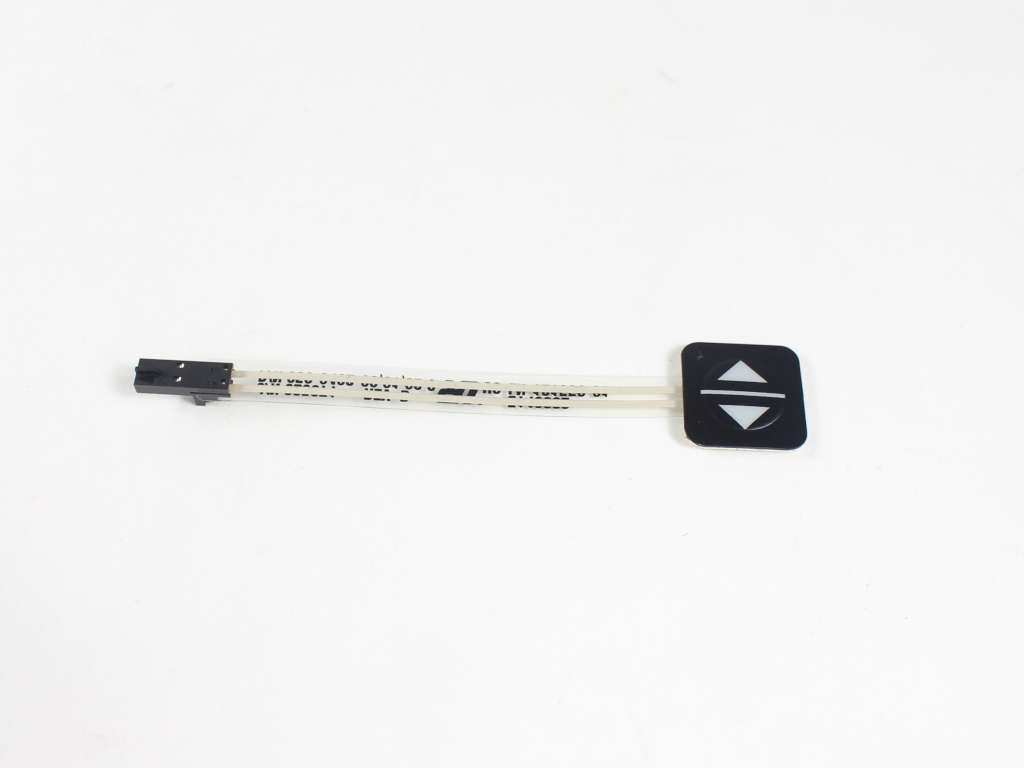

This part is the replacement membrane switch for your range hood. It is approximately 4 inches in length, and the part of the switch that you push is black in color. The membrane switch or downdraft vent position switch raises and lowers the vent when you push it. If your range hood will not start, you may need to replace the membrane switch. You will want to unplug the downdraft vent before you install the membrane switch. This part is sold individually and is an OEM part sourced directly from the manufacturer.

Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 5.0 / 5.0, 1 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      rose from fairfax, VA
    • Parts Used:
      WB24X10115, WB27X10928
    • Difficulty Level:
      Very Easy
    • Total Repair Time:
      Less than 15 mins
    • Tools:
      Pliers
    Oven completely broken: nothing worked
    Purchased fuse, replaced fuse, closed oven grill: back in full function! Your company is the BEST selling parts I need in addition to excellent, easy-to-follow install instructions. I am a single mom and I can repair anything as long as your company is around! Saved sooooo much money doing it myself.
    3 of 5 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX953533
      Manufacturer Part Number: WB24X10115
      Brand
      Model Number
      Description
      General Electric
      JVB36WBB
      Range Hood - Electric
      General Electric
      JVB37A1BB
      Range Hood - Electric
      General Electric
      JVB37A2BB
      Range Hood - Electric
      General Electric
      JVB37A3BB
      Range Hood - Electric
      General Electric
      JVB37A4BB
      Range Hood - Electric
      General Electric
      JVB37ABB
      Range Hood - Electric
      General Electric
      JVB37H1BB
      Range Hood - Electric
      General Electric
      JVB67H1BB
      Range Hood - Electric
      General Electric
      JVB94H1SS
      Range Hood - Electric
      General Electric
      JVB94SH1SS
      Range Hood
      General Electric
      JVB98H1SS
      Range Hood - Electric
      General Electric
      JVB98SH1SS
      Range Hood - RANGE HOOD
      General Electric
      ZVB30BH1BB
      Range Hood - Electric
      General Electric
      ZVB30H1BB
      Range Hood - Electric
      General Electric
      ZVB30H1SS
      Range Hood - Electric
      General Electric
      ZVB30SH1SS
      Range Hood - Electric
      General Electric
      ZVB36BH1BB
      Range Hood - Electric
      General Electric
      ZVB36H1BB
      Range Hood - Electric
      General Electric
      ZVB36H1SS
      Range Hood - Electric
      General Electric
      ZVB36SH1SS
      Range Hood - Electric
