( Grid squares measure 1x1 inch )

GREASE

$ 59.97   In Stock
Fix Number: FIX12583821
Manufacturer #: W11200218
Manufactured by: Whirlpool

Product Description

This grease is used for the KitchenAid stand mixers for the planetary gears.

Videos For installing this part.

Replacing your GREASE

Replacing your GREASE play video

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.3 / 5.0, 4 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      Melody from Silverton, CO
    • Difficulty Level:
      Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Screw drivers
    stripped the worm gear, fixed bushings

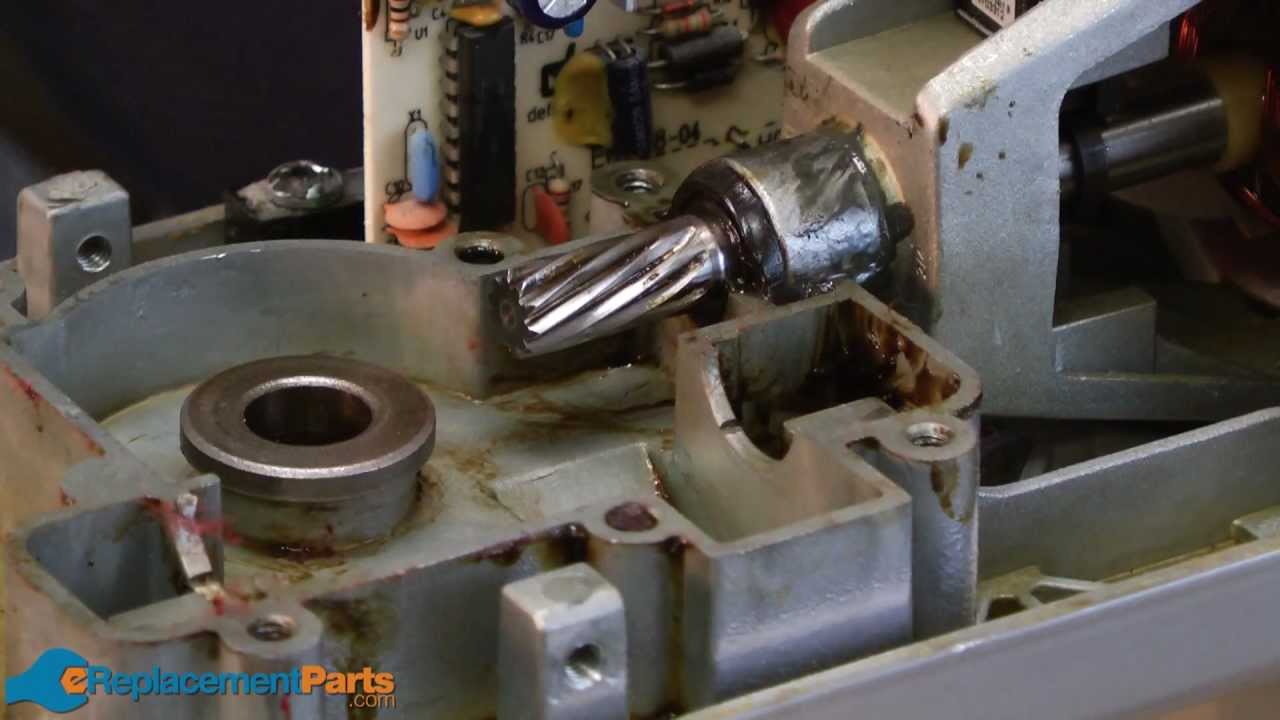

    I opened the mixer and determined that the worm gear had failed, as designed, to save the other gears. There was also oil separated from the grease and it needed replaced. The Transmission case gasket was damaged and must have been from the time it was built. I removed the grease with putty knife and kept I on a plastic plate until the parts came in (to determine the amount needed when I replaced it.) I used the punch to remove the two pins needed with light tap from hammer. I left the mixer in pieces on the counter until the parts arrived. I replaced the gear and all other parts and placed fresh grease in the mixer. I had to adjust the beater, too. I had removed one of the bushings by mistake. When mixer was back together it would not start. IT TOOK SOME TIME BUT I FOUND ANOTHER WEB SITE THAT EXPLAINED HOW TO REPLACE THE BUSHING. TAKE A FLASHLIGHT AND LOOK INTO THE SQUARE BRUSH HOLDER. THERE IS A DETANT IN THE HOLDER. THE SHAVED SIDE OF THE BRUSH NEEDS TO SLIP PAST THE DETENT TO BE ABLE TO TOUCH THE AMATURE. Once that was done, it worked great. Very smooth with new gear and grease.
    8 of 8 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    The mixer would not spin.
    Took the cover off of the transmission and replaced gears, pin and gasket and added new grease.
    6 of 6 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Dan from Forest Grove, OR
    • Parts Used:
      WP9709231, W11086780, W11200218
    • Difficulty Level:
      Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Screw drivers
    Damaged gears
    Watched the video several times. Once I received the parts, I watched it again to see specific sections. Repair was easy when I knew what to expect. It would help if the video could be in sections, so you would not have to watch the entire beginning in order to see later instructions. Also found the parts manual on line and ordering of parts was very easy and processed correctly by your company. Really appreciated your help.
    1 person found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    worm gear warn out {2}
    When installing the transmission housing I cant seem to get the two end bushing and ball bearing thrust washer all back in on the worm gear
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX12583821
      Manufacturer Part Number: W11200218
      Brand
      Model Number
      Description
      KitchenAid
      3K5SS
      Mixer
      KitchenAid
      4K5SS
      Mixer
      KitchenAid
      4K5SSOB0
      Mixer
      KitchenAid
      4K5SSWH1
      Mixer
      KitchenAid
      4KB25G1XBU3
      Mixer
      KitchenAid
      4KB25G1XBU5
      Mixer
      KitchenAid
      4KB25G1XBY5
      Mixer
      KitchenAid
      4KB25G1XCO5
      Mixer
      KitchenAid
      4KB25G1XER3
      Mixer
      KitchenAid
      4KB25G1XER5
      Mixer
      KitchenAid
      4KB25G1XGA5
      Mixer
      KitchenAid
      4KB25G1XMC5
      Mixer
      KitchenAid
      4KB25G1XMY5
      Mixer
      KitchenAid
      4KB25G1XOB3
      Mixer
      KitchenAid
      4KB25G1XOB5
      Mixer
      KitchenAid
      4KB25G1XTG3
      Mixer
      KitchenAid
      4KB25G1XTG5
      Mixer
      KitchenAid
      4KB25G1XWW3
      Mixer
      KitchenAid
      4KB25G1XWW5
      Mixer
      KitchenAid
      4KD2661XMC3
      Mixer
      KitchenAid
      4KG25G0XMC4
      Mixer
      KitchenAid
      4KG25G0XWH4
      Mixer
      KitchenAid
      4KG25G7XER4
      Mixer
      KitchenAid
      4KG25G7XOB4
      Mixer
      KitchenAid
      4KG25G7XSL4
      Mixer
      KitchenAid
      4KG25G7XWH4
      Mixer
      KitchenAid
      4KG25H3XER5
      Mixer
      KitchenAid
      4KG25H3XOB5
      Mixer
      KitchenAid
      4KG25H3XSL5
      Mixer
      KitchenAid
      4KG25H3XWH5
      Mixer
