See part 28 in the diagram

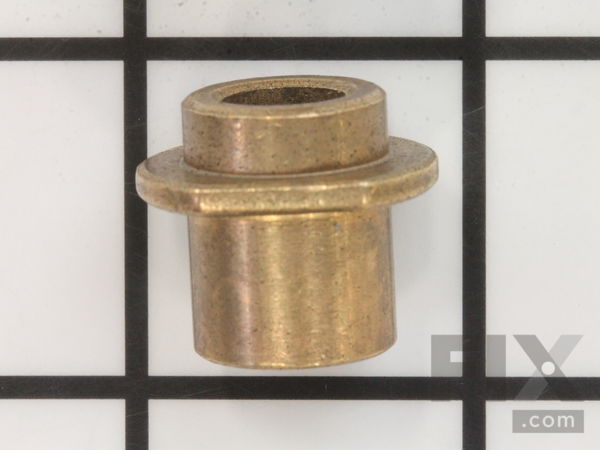

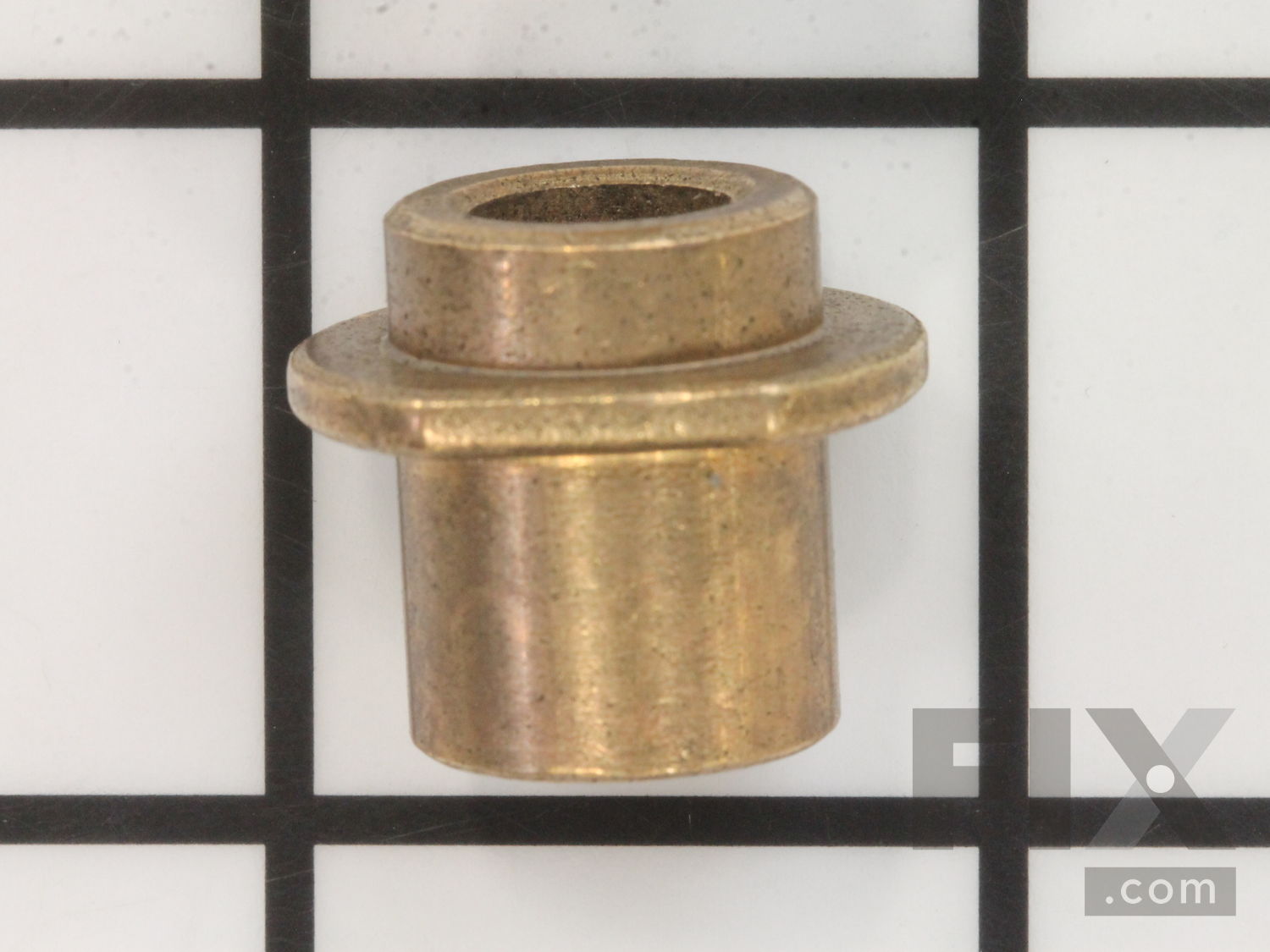

( Grid squares measure 1x1 inch )

Worm Gear Bearing

$ 5.50   In Stock
Fix Number: FIX11746908
Manufacturer #: WP9703351
Manufactured by: Whirlpool

Product Description

Used with mixers.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.8 / 5.0, 1 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    worm gear warn out {2}
    When installing the transmission housing I cant seem to get the two end bushing and ball bearing thrust washer all back in on the worm gear
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX11746908
      Manufacturer Part Number: WP9703351
      Brand
      Model Number
      Description
      KitchenAid
      KD2661
      Mixer
      KitchenAid
      KD2661KATRW
      Mixer - MIXER
      KitchenAid
      KP2671
      Mixer
      KitchenAid
      KP2671KATRW
      Mixer - MIXER
      KitchenAid
      KT2651
      Mixer
      KitchenAid
      KT2651KATRW
      Mixer - MIXER
