See part F-13 in the diagram

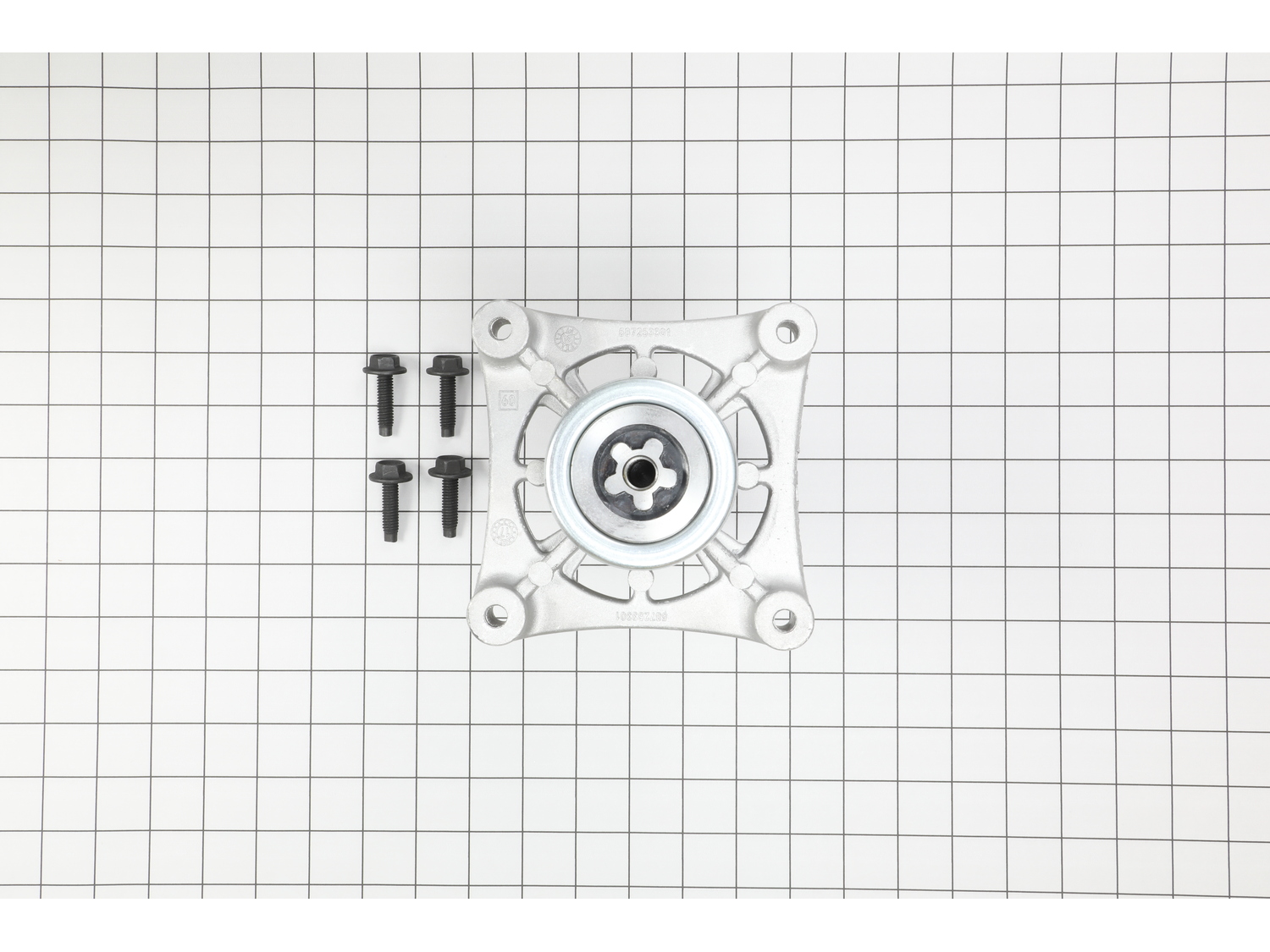

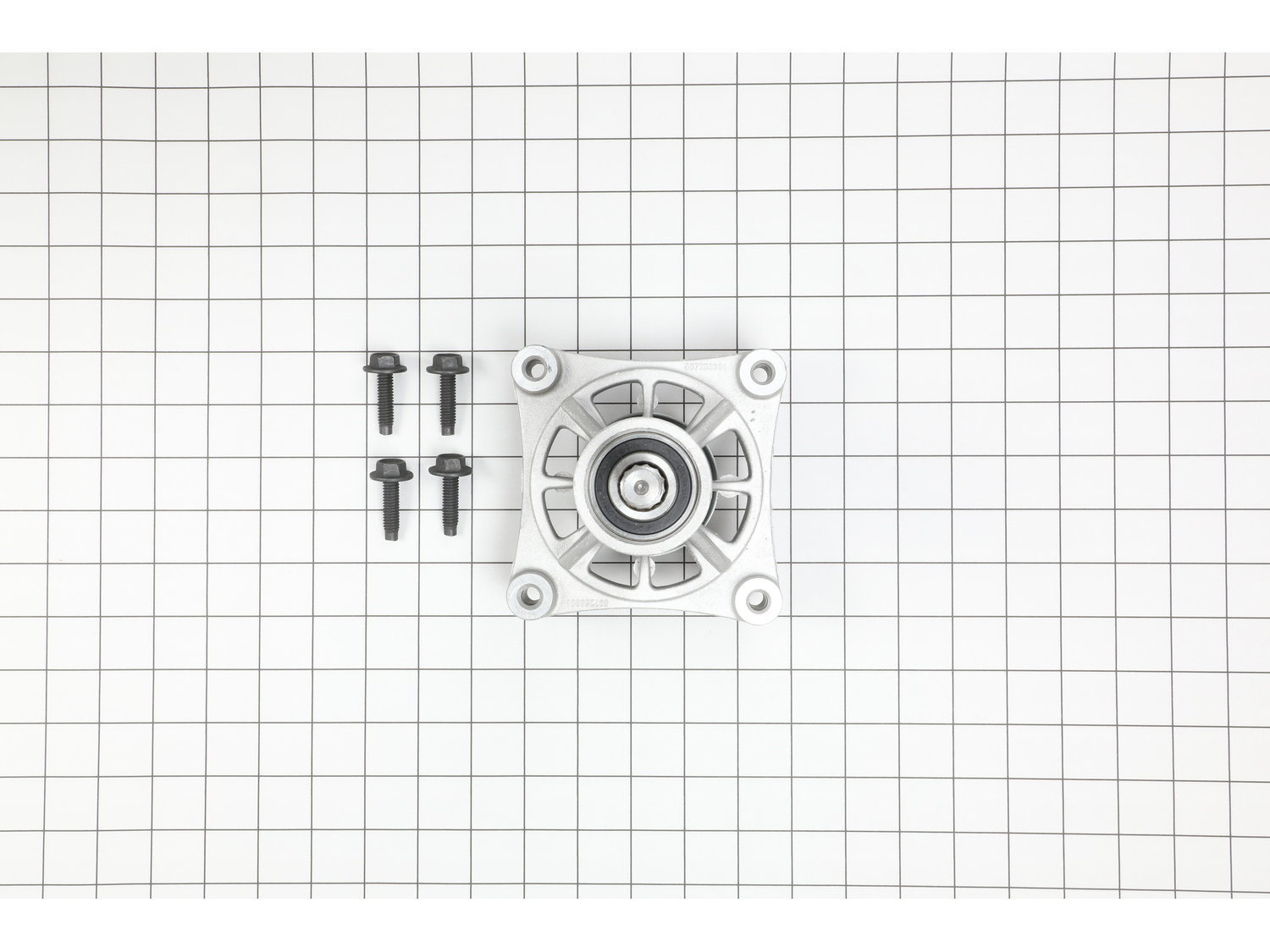

( Grid squares measure 1x1 inch )

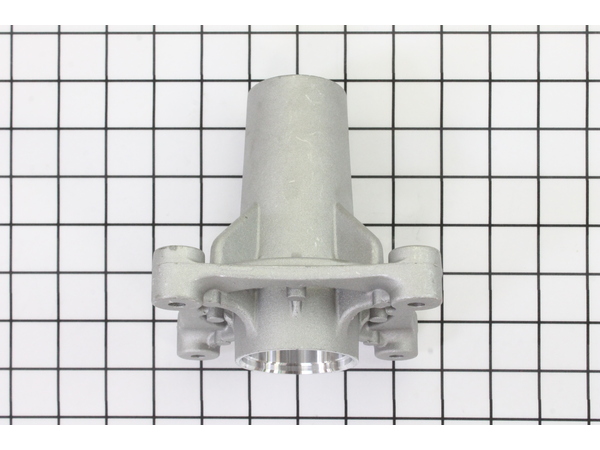

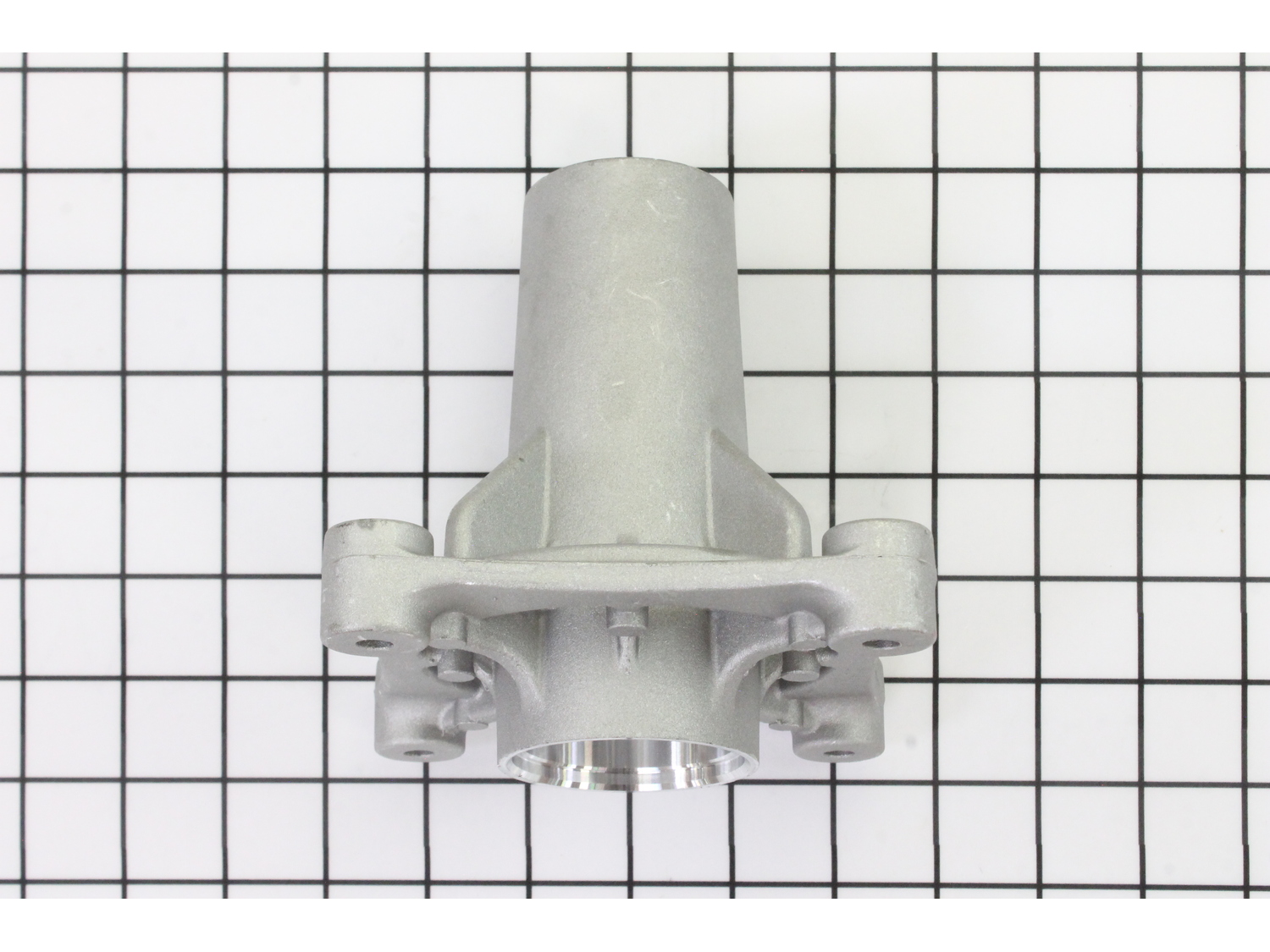

Lawn Tractor Mandrel Assembly

★★★★★
★★★★★
1 Review
$49.71
Fix Number: FIX12087499
Manufacturer #: 587819701
Manufactured by: Husqvarna

Product Description

Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.0 / 5.0, 1 reviews.
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    Terrence from LORENA, TX
  • Parts Used:
    587819701
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    More than 2 hours
  • Tools:
    Pliers, Screw drivers, Socket set
Blade mandrel replacement
1. Remove mower deck.
2. Remove mower blade from defective mandrel.
3. Clean caked up grass from underside of mower deck.
4. Remove belt pulley from top of defective mandrel.
5. Remove four bolts fastening defective mandrel to deck. Note: bolts will most likely shear - make sure you have new ones.
6. Install new mandrel to deck using four new self-tapping bolts.
7. Reinstall mower blade to new mandrel assembly.
8. Reinstall belt pulley to new mandrel assembly.
9. Reinstall mower deck to tractor.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer Reviews
Average Rating: (1 Review)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 5
    1
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Model Compatibility
This part works with the following models:
Fix Number: FIX12087499
Manufacturer Part Number: 587819701
Brand
Model Number
Description
Husqvarna
12530
Lawn Tractor - Pxt Tractor
Husqvarna
1538
Lawn Tractor - Ride Mower
Husqvarna
1542XP
Lawn Tractor - (T) (96043000602) (2006-10) Ride Mower
Husqvarna
1542XPT
Lawn Tractor - Ride Mower
Husqvarna
164T
Lawn Tractor - Cth Tractor
Husqvarna
184T
Lawn Tractor - Cth Tractor
Husqvarna
18542
Lawn Tractor - Ride Mower
Husqvarna
2042
Lawn Tractor - Ride Mower
Husqvarna
2042LS
Lawn Tractor - Ride Mower
Husqvarna
20B42T
Lawn Tractor - Ride Mower
Husqvarna
20F42T
Lawn Tractor - Ride Mower
Husqvarna
20K46
Lawn Tractor - Ride Mower
Husqvarna
2146XLS
Lawn Mower - Husqvarna Lawn Mower Model 2146XLS Parts
Husqvarna
2146XP
Lawn Tractor - Ride Mower
Husqvarna
2242T
Lawn Tractor - Ride Mower
Husqvarna
2246
Lawn Tractor - Ride Mower
Husqvarna
2246LS
Lawn Tractor - Ride Mower
Husqvarna
224T
Lawn Tractor - Yth Tractor
Husqvarna
2346XLS
Lawn Tractor - Ride Mower
Husqvarna
240460
Lawn Mower - Husqvarna Lawn Mower Model 240460 Parts
Husqvarna
240461
Lawn Mower - Husqvarna Lawn Mower Model 240461 Parts
Husqvarna
240462
Lawn Mower - Husqvarna Lawn Mower Model 240462 Parts
Husqvarna
240464
Lawn Mower - Husqvarna Lawn Mower Model 240464 Parts
Husqvarna
250170
Lawn Mower - Husqvarna Lawn Mower Model 250170 Parts
Husqvarna
250180
Lawn Mower - Husqvarna Lawn Mower Model 250180 Parts
Husqvarna
250190
Lawn Mower - Husqvarna Lawn Mower Model 250190 Parts
Jonsered
2754GTHI-96043019100
Lawn Tractor - Tractor
Jonsered
2754GTHI-96043019200
Lawn Tractor - Tractor
Husqvarna
280020
Lawn Mower - Husqvarna Lawn Mower Model 280020 Parts
Husqvarna
280022
Lawn Mower - Husqvarna Lawn Mower Model 280022 Parts
