Idler Pulley
$33.54
Special Order
Fix Number: FIX11722120
Manufacturer #: 8547174V
Manufactured by:
Whirlpool
-
Product Description
A dryer's idler pulley wheel serves to help the belt to rotate the drum. This arm is what attaches to the idler pulley wheel.
-
Works with the following brandsWhirlpool, Maytag
-
Works with the following productsDryer
-
Fixes the following symptomsNoisy
-
Part Number Cross ReferencePart# 8547174V replaces these:AP5983811, 8547174, 8547174VP
Product Description
A dryer's idler pulley wheel serves to help the belt to rotate the drum. This arm is what attaches to the idler pulley wheel.
-
Works with the following brands:Whirlpool, Maytag
-
Works with the following products:Dryer
-
Fixes the following symptoms:Noisy
-
Part# 8547174V replaces these:AP5983811, 8547174, 8547174VP
Videos For installing this part.

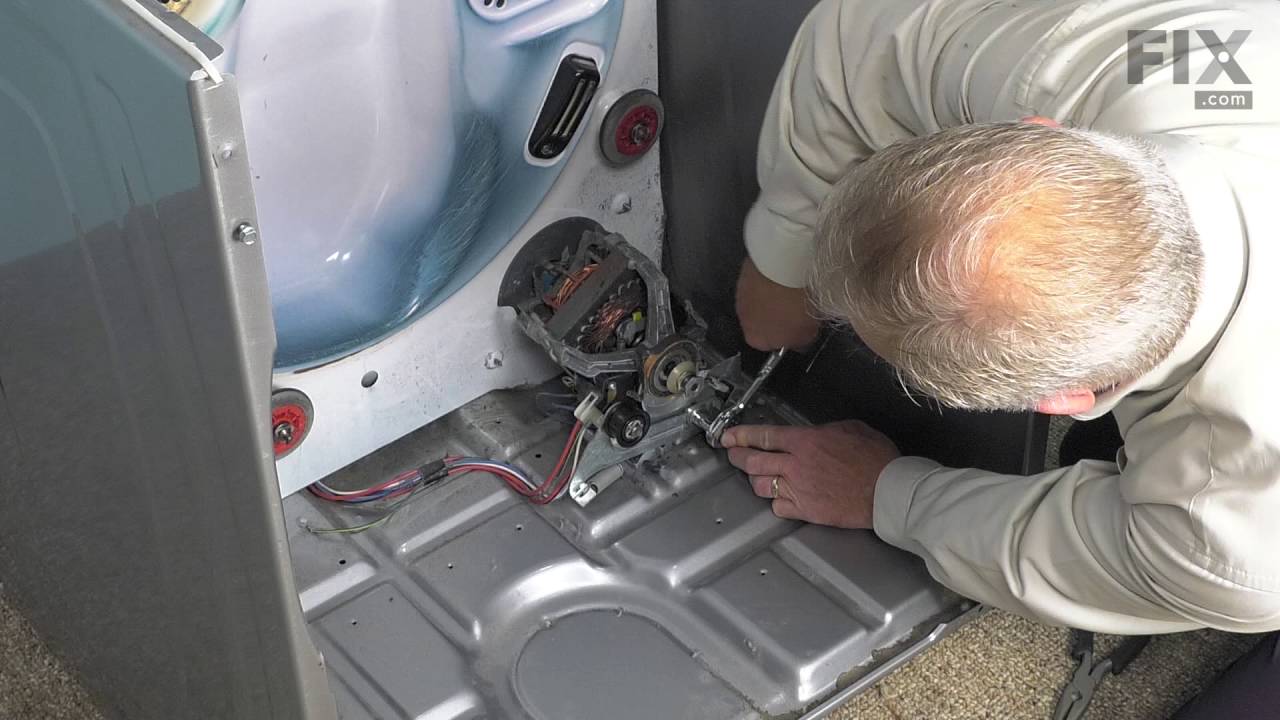

Replacing your Idler Pulley
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Related PartsAdditional or alternate parts to consider.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:michael from Tampa, FL
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers, Socket set
Dryer had a very loud squealing sound
Remove 2 screws in the lint catcher push in on the clips in the front corners with a slim screwdriver to flip the top up then remove the two 5/16th bolts on either side to release the front of the dryer lifting slightly to remove the front then tilt dryer back so your not on the floor. Then remove the tension spring remove the bolt 3/8 remove the idler pully bracket then reverse to put back together after aligning the belt
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Louise from New Providence, NJ
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers, Socket set
screaching sound when on
pryed top open, unplugged door connecter in front right area, used socket set to loosen bolts in front x4 then was able to see belt and idler pulley arm/wheel bottom right then removed dryer drum to access the belt/pulley and reverse to put back together. also forgot to say that u need to take the two screws off by lint trap
Was this instruction helpful to you?
Thank you for voting!
