Drum Bearing Slide - Green
Works With Model HTDX100ED0WW!
$14.29
In Stock
Fix Number: FIX6447706
Manufacturer #: WE1M1067
Manufactured by:
GE
Works With Model HTDX100ED0WW!
-
Product Description
This single drum bearing slide is an OEM approved replacement part for dryers. It can also be known as a bearing drum slide, pad, or glide. The slides attach to the inner most slots on the front bearing. As the dryer rotates, the drum bearing slides help to support the front of the drum. If your appliance becomes noisy, is not drying properly, or leaves marks on clothes, it may be time to replace it. If you are replacing one slide, we recommend replacing the other slide at the same time, as they deteriorate at a similar rate. You will need to order 2 of these parts as there are 2 in each dryer. It is approximately 2.6-inches deep, 0.06-inches in height, and 0.5-inches wide. This part is denoted as being green in the title, however users and technicians have noted it is actually gray in color.
-
Works with the following brandsGeneral Electric, Hotpoint, Kenmore
-
Works with the following productsDryer, Washer Dryer Combo, Washer
-
Fixes the following symptomsNoisy, Marks left on clothes
-
Part Number Cross ReferencePart# WE1M1067 replaces these:AP5668531, 2677745, WE1M1067, WE01M0316, WE1M1067-100PK, WE1M316, WE1M481, WE1M507
Product Description
This single drum bearing slide is an OEM approved replacement part for dryers. It can also be known as a bearing drum slide, pad, or glide. The slides attach to the inner most slots on the front bearing. As the dryer rotates, the drum bearing slides help to support the front of the drum. If your appliance becomes noisy, is not drying properly, or leaves marks on clothes, it may be time to replace it. If you are replacing one slide, we recommend replacing the other slide at the same time, as they deteriorate at a similar rate. You will need to order 2 of these parts as there are 2 in each dryer. It is approximately 2.6-inches deep, 0.06-inches in height, and 0.5-inches wide. This part is denoted as being green in the title, however users and technicians have noted it is actually gray in color.
-
Works with the following brands:General Electric, Hotpoint, Kenmore
-
Works with the following products:Dryer, Washer Dryer Combo, Washer
-
Fixes the following symptoms:Noisy, Marks left on clothes
-
Part# WE1M1067 replaces these:AP5668531, 2677745, WE1M1067, WE01M0316, WE1M1067-100PK, WE1M316 ... Show more , WE1M481, WE1M507 Show less
Videos For installing this part.

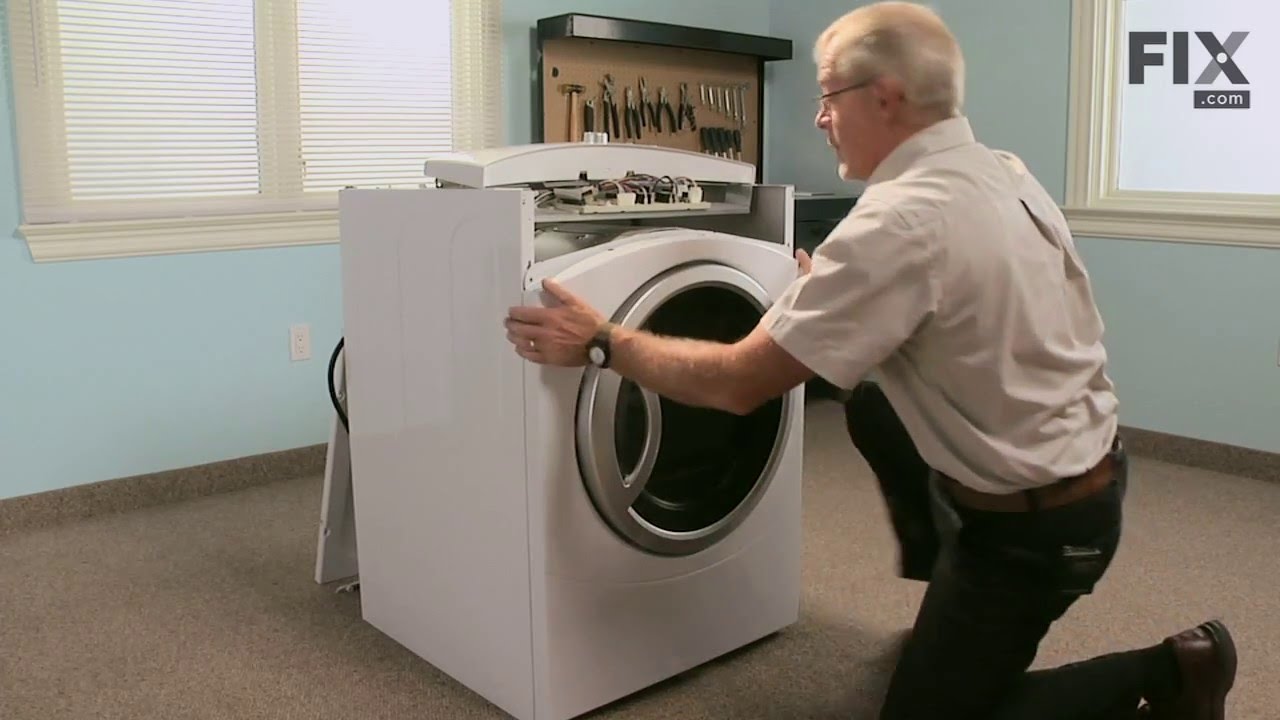

Replacing your Drum Bearing Slide - Green
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Related PartsAdditional or alternate parts to consider.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- 2
- 3
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Donald L. from Belmont, MA
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
Dark marks on clothing; clothing sticking between drum and front panel
Others with the same problem of dark marks on clothing suggested replacing the white and the grey drum slides that slip into the front drum bearing unit. When I open up the dryer, I did find that both the white and grey drum slides on one side of the front drum bearing piece had completely worn away, and some of the drum bearing piece was also worn away. I had decided in advance to order both white slides, both grey slides, a new felt seal, and the front drum bearing piece. Possibly I could have reused the old front drum bearing, but the replacement was cheap enough. Three bits of advice: 1) if you replace the felt seal, make sure you get it tucked behind the clips on the door panel; 2) if you replace the front drum bearing piece, once you have the dryer put back together, reach up and pull the plastic drum bearing toward you to be sure it is fully snapped into place; 3) after you replace the slides or felt, the drum will make mild rubbing noises as it turns, so run the dryer with no heat for about 30 minutes to seat the parts.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Gerald from Schertz, TX
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
screeching and catching on to clothes
Followed video instructions. Piece of cake. Thank you!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Vincent from Apopka, FL
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers
Takes A Long Time To Dry
Followed the video that was provided on the web site
Was this instruction helpful to you?
Thank you for voting!
-
Customer:David from South Park Township, PA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
Dryer squealing due to glides missing and part of front drum bearing worn away.
Lifted the top of dryer off, screws were already removed diagnosing the problem. Removed two screws holding front panel on. Snapped the worn front drum bearing out of its place. Transfered the glides, I ordered extra, from the old piece to the new one. Snapped the new drum bearing in place, slightly lifting the dryer drum to rest on the new front drum bearing. Then I attached the front dryer panel with the two screws. Finally put the top of the dryer back in its place with two screws to hold it in place. Finished with a test run of dryer. No squealing, so i put in a load of clothes to be dryed.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:VINCENT FLYNN from FARMINGTON, NH
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers
Squeeking
Followed the video instructions provided by this site No confusing, hard to decipher diagrams or written instructions. The whole process took 30 minutes half of which was cleaning out 5 years of accumulated lint.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Donald from Mokena, IL
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:1- 2 hours
-
Tools:Pliers, Screw drivers
Igniter failure.
First remove top, two screws just above door when opened. Remove a couple screws holding front to sides and remove front to expose drum bearing slides, mine weren't bad but since I was this far to get to the burner assy, why not replace them. Now the more difficult part - getting to the igniter. It is impossible to get to the igniter without removing the side wall but on my unit there is/was a 4" knock-out in the side wall of the dryer to access or at least see the burner assy. I put the new slides in and replaced the front and top. Then took tin snips and cut a big flap and then opened the side to access the igniter. Now I was able to reach in and easily change the igniter, I then bent the side wall I had cut back into place and with a piece of sheet metal and some mini screws. Now I still had that knock out open so I could see if the new igniter worked and within seconds I had a fire and the dryer was repaired. replace the knock out so that no debris can get into the housing near the fire box.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Jeff from GLENDALE, AZ
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
Loud squeaky noise
Philiphs screws driver and watched a how to video
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Richard from FORD, VA
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
Load squeaking, rubbing noise in the front of dryer
I looked at the video on this site for replacing that part. If you watch the video you will have no proplem. It took me 20 mins to do the repair, may have been quicker if my hands would have been smaller to connect the wires back in the front panel.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Keith from Weatherford, TX
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
The dryer was squeeling with a load of clothes in it.
I watched your video first. Pulled out two screws and removed the top, took one screw out on the left and right side so the front of the dryer could be removed. I then pulled the old Drum bearing out, installed the drum bearing slides in the new drum bearing then put it back together the way I took it apart. No problem!! Saved me a bunch of money and my dryer is repaired. Thanks!!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:David from Brevard, NC
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
The Stainless steel dryer drum was cracked at the mouth.
T he crack was noticed by the clickimng noise as it traveled over the bearings and by the pieces of felt in the lint filter.My first repair was a few weeks ago, before I noticed the drum was cracked. I replaced the front drum bearings and felt seal. The problem continued and I again removed the dryer front to try and find the source of the clicking noise. By slowly rotated the drum and used my finder tips I found the drum crack. The drum was easily replaced from the front of the drier. Nothing else to remove except the belt. Just pull the drum straight out. It was a tight fit to slide it out between the two side panels and I found that it helped to spread the side panels slightly apart while pulling the drum out. My wife helped. Slip the new one in, replace the belt, and reinstall the dryer front.
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- 2
- 3
- Next >
★
Customer Reviews
Filter By Rating:
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Gunther P - May 11, 2021
Verified Purchase
Needed part
Just the thing to get reed of the noise
Jorge A - December 9, 2020
Verified Purchase
Excellent!
Excellent, fast, reliable service.
Part arrived as advertised.
- < Prev
- 1
- Next >
