Rear Drum Bearing Kit

Followed the steps outlined in the video.

Disconnect power. Disconnected vent hose and moved dryer to area where i could easily remove drum. Opened top and front door dryer covers , cleaned dryer for lint buildup before you go any further, then i disconnected the wiring from open close switch noted where colored wires went on switch. Opened cover on back to get to drum belt on idler motor pulleys. Took belt off idler motor pulleys. Lifted drum up off drum gear houseing useing the belt to help lift the back. Once drum removed used caulking tape to hold back of gear houseing with bearing t and used adjustable wrench to disconnect gear houseing with bearing. I then went to back of drum and took off the drum gear and installed new one. Before installing new one i used screws to tap into new three holes on new drum gear because they were not threaded and working by myself made it easier to align and install. Set and aligned drum gear on back of dryer drum and used caulking tape to hold gear in place and tightened screws with screw driver. Installed gear housing with ball bearing by aligning nut bar on back of dryer and holding in place with caulking tape then went around front inside of dryer and lightly screwed gear housing in place. Went around back of dryer where i slightly pulled out bar and useing gear grease installed the ball bearing and then tightened the housing in place. Removed all caulking tape and useing dryer belt reinstalled the dryer drum and connected dryer belt back onto the idler motor pulleys.. installed front door cover and installed wiring for open clothes switch and light socket. Then i tested dryer first manually to aligned the dryer belt to old markings on the drum, i reinstalled the dryer vent hose, then i plugged the dryer into the electrical outlet and set it on 10 minutest to dry. And it worked fine. So i aligned the top cover and snapped it back in place and useing screwdriver i put idler cover on.

followed the directions , was very clear and precise , easy to follow

Ordered rear drum bearing kit and flat belt since drum had to be removed. Followed excellent video for the rear drum repair. The only hitch I encountered was removing the 3 small screws to release the shaft from the drum. One of them came out easily, but the remaining two were really difficult. Finally, I hit them with the heat from a hair dryer and they released, but in hindsight, I could have left the original shaft in place. It was in great shape and would have been fine. Here was the next problem...my husband got a little too aggressive when returning the drum to the new bearing and must have hit the heater element coil. Tumbled beautifully with no noise, but no heat. The coil was very brittle and likely broke easily so we are now replacing the coil. That can get expensive buying that entire assembly. Research the coil size (mine is 1/4") and carefully handle it and replacing the coil alone will save you $$$.

was able to release drive belt with access panel in back of dryer. removing old bearing, it was necessary to demolish bracket, due to age and brittleness of old one...replacement kit was complete and exact. rest of replacement went smoothly, except I wasn't sure I had new bearing seated properly - I didn't feel any positive 'snap' when I seated the bearing in the bracket. It must have gone in correctly, though, because everything worked perfectly

removed the drum I have been repairing electrical appliances since 1965 the only problem with this repair was the screws in the rear of the drum would not break lose had to drill them out which it took a little longer.

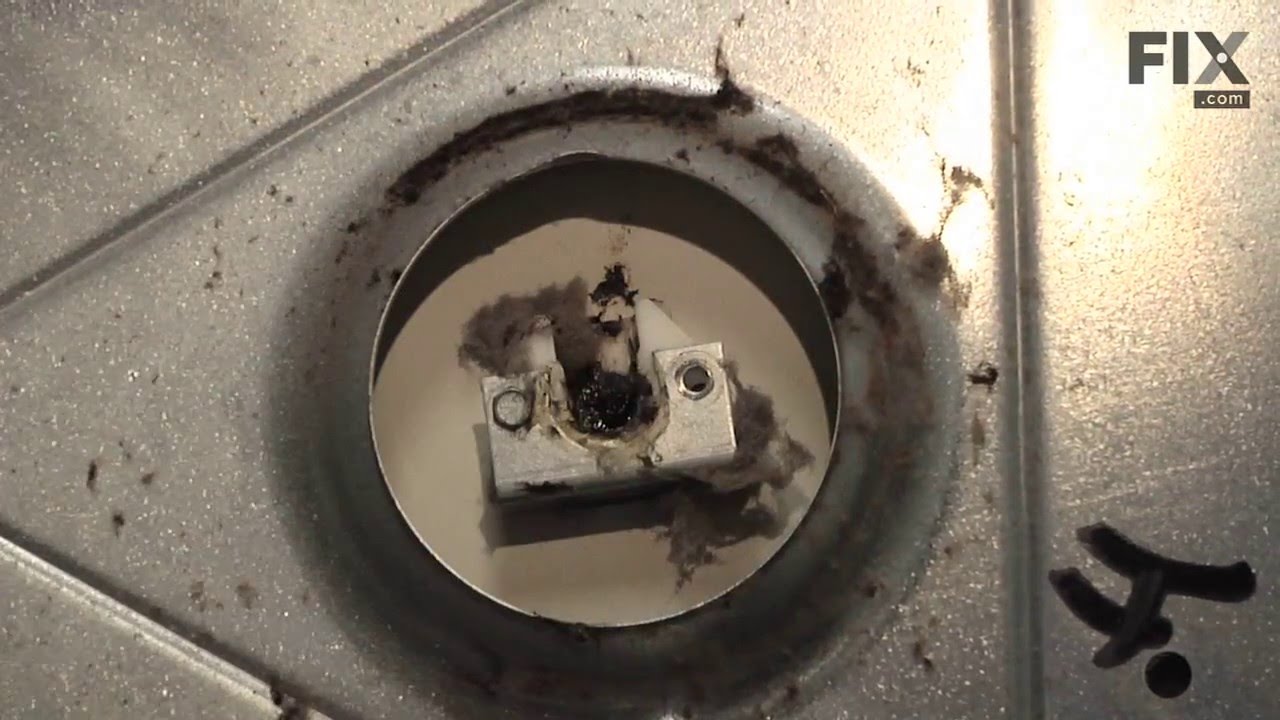

Popped he top off, removed the front, repaced the bearing and nylon bearing block, new grease and I waa done. 1 and 1/2 hours and I was done. All the parts I needed were in the kit. Never even had to pull it away from the wall. Nice and quiet again.

First thing I did was watch the great video on this web site that showed me exactly what I needed to do. Anybody that can operate a screwdriver can do this repair. One word of caution. The metal edges on your dryer are very sharp. I cut my hands removing the drum. wear work gloves. After I replaced the drum bearing kit, (and clean up the blood) my dryer is running like new.

Watched video instructions several times. They were very clear. Did exactly as described except, since I'm quite a bit older than the repairman, had to remove the rear panel to reinstall the belt. Very pleased with experience, from order to delivery to completion.

I watched the video on the page where I ordered the parts from and it was straight forward on what needed to be done. Only addition was to grease the pylley wheel shaft by sliding it off, cleaning it and reinstall with fresh grease. It all went well and no more noise!!
