8260087-1-M-Whirlpool-W10518394-Dishwasher Heating Element

( Grid squares measure 1x1 inch )

8260087-1-S-Whirlpool-W10518394-Dishwasher Heating Element

Dishwasher Heating Element

Works With Model 66513039K111!

★★★★★

2 Reviews

Rated by 7 customers

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

$66.15

Fix Number: FIX8260087

Manufacturer #: W10518394

Manufactured by: Whirlpool

Works With Model 66513039K111!

Product Description

This is a manufacturer-approved heating element and 2 washers. If the dishes in your dishwasher are not drying or the water in the dishwasher is not getting hot, it may be due to a failed heating element. The heating element is not intended to heat the water that enters the appliance but is designed to maintain the heat of the water that enters. This part is located on the bottom of the appliance. Be sure to disconnect the power to the appliance before you begin this repair. Start this repair by disconnecting the wires from the bottom of the element in the back, remove the plastic nuts holding it in place, remove the element, and repeat these steps in reverse order to install the new part. For this beginner repair, you will need a screwdriver, wrench set, and it should be completed in less than 30 minutes.
Works with the following brands

Whirlpool, Kenmore, Maytag, Amana
Works with the following products
Dishwasher
Fixes the following symptoms

Not drying dishes properly, Not cleaning dishes properly, Will Not Start, Leaking
Part Number Cross Reference

Part# W10518394 replaces these:

AP5690151, 2977737, W10518394, 8194250, 8563007, 8563464, 8572861, W10134009, W10441445, W10518394VP

1 Installation Video Questions and Answers

7 Installation Instructions

2 Customer Reviews Model Compatibility

Product Description Part Videos Questions and Answers Installation Instructions Customer Reviews Model Compatibility

Product Description

This is a manufacturer-approved heating element and 2 washers. If the dishes in your dishwasher are not drying or the water in the dishwasher is not getting hot, it may be due to a failed heating element. The heating element is not intended to heat the water that enters the appliance but is designed to maintain the heat of the water that enters. This part is located on the bottom of the appliance. Be sure to disconnect the power to the appliance before you begin this repair. Start this repair by disconnecting the wires from the bottom of the element in the back, remove the plastic nuts holding it in place, remove the element, and repeat these steps in reverse order to install the new part. For this beginner repair, you will need a screwdriver, wrench set, and it should be completed in less than 30 minutes.

Works with the following brands:

Whirlpool, Kenmore, Maytag, Amana
Works with the following products:
Dishwasher
Fixes the following symptoms:

Not drying dishes properly, Not cleaning dishes properly, Will Not Start, Leaking
Part# W10518394 replaces these:

AP5690151, 2977737, W10518394, 8194250, 8563007, 8563464 ... Show more , 8572861, W10134009, W10441445, W10518394VP Show less

Videos For installing this part.

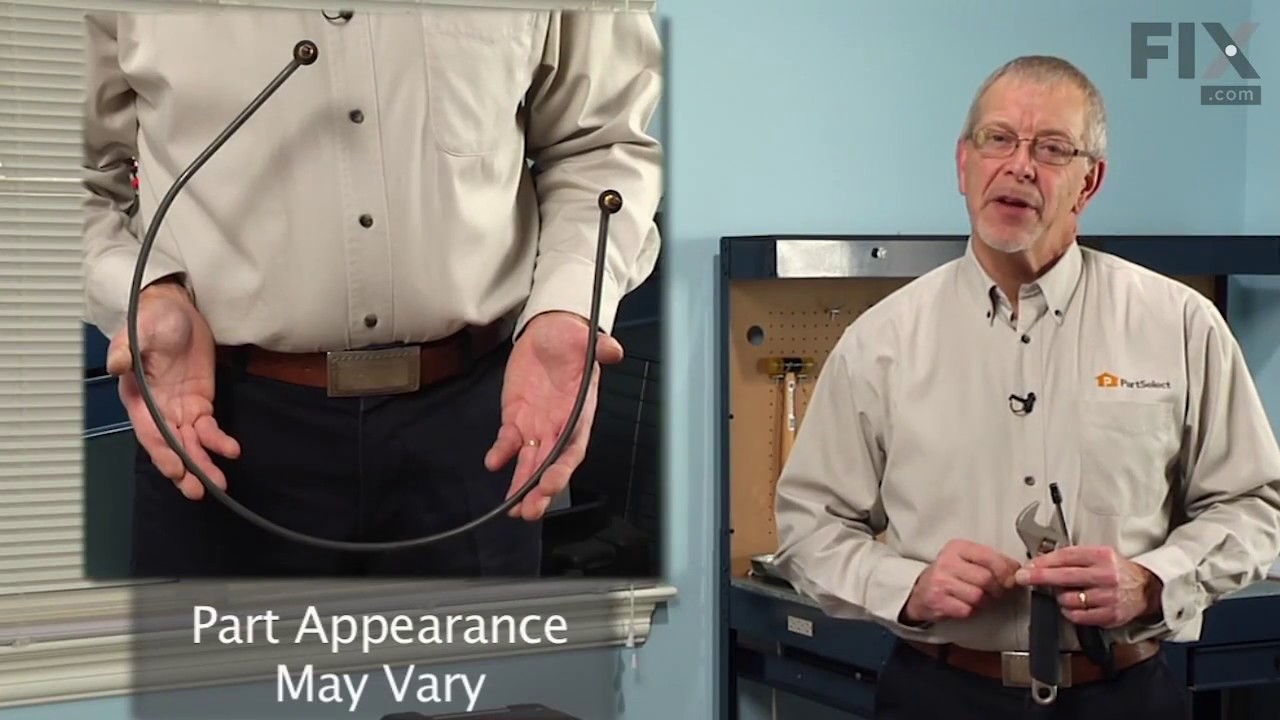

Replacing your Dishwasher Heating Element

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.3 / 5.0, 7 reviews.

< Prev
1
Next >

Sort by:

Customer:

Jesse from Mandan, ND
Parts Used:
W10518394
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers, Screw drivers, Wrench (Adjustable), Wrench set

not drying or cleaning dishes

Turned off breaker at power source. Turned off water supply valve. Disconnected water supply hose and drain hose. Removed base panel with 1/4'' nut driver. Removed power box cover screw with 1/4'' nut driver, turned off wire nuts connecting power cable and used phillips screw driver to remove ground. Removed 2 phillips screw under front of counter holding dishwasher in place. rolled dishwasher out of cabinet and layed face down on towels. Pulled two wires connected to the element marking position prior. Then removed two heater element nuts with adjustable wrench. Tipped dishwasher up, opened door and lifted out lower rack, underlower rack is heating element and lifted out. Reverse procedure to install.

6 of 7 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

William from Ham Lake, MN
Parts Used:
W10518394
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Wrench (Adjustable)

Heating Element went out

Pulled dishwasher out from counter. Laid it on its face on a couple pillows. Located heating element wires and removed both. Unscrewed both element insulating/sealing nuts. Stood dishwasher upright opened door and removed element. Replaced element. Flipped on its face again and replaced both nuts and wires. Done. Worked great. Fast shipping on element. Thanks!

2 of 2 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Mark from Belmont, MI
Parts Used:
W10518394, WP717273
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Wrench (Adjustable)

Heating element failed

1)Turned power off to dishwasher 2) removed toekick cover 3) shut off water 4) disconnected water line to dishwasher 5) removed top screws holding DW in place 6) slid DW out of cavity to access the read bottom 7) removed terminal clips from bottom side of heating element under DW 8) remover special "nuts" that held the heat element in place under DW 9) removed old heat element from inside DW 10) installed rubber wagers on. New heat element 11) installed new heat element from inside DW through holes in back of DW 12) screwed "nuts" back onto the new heat element under DW .... Note .... The new element used different "nuts" than the original .... So I was glad I had ordered new "nuts" just in case and would suggest you do the same 13) attach the electrical connections back on the new heating element 14) slide the DW back under the counter and attach to counter top nosing 15) hooked the water back up and turned it on 16) turned the breaker back on

2 of 3 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Martha from Blytheville, AR
Parts Used:
W10518394
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Wrench (Adjustable)

heat element burned out

pull the dishwasher out of cabinet remove water line and electric wire from washer removed 2 wires remove 2nuts off the element it came right out replaced new element in all about 1 hr. of work

1 person found this instruction helpful.

Was this instruction helpful to you?

Customer:

Mike from Greensboro, NC
Parts Used:
W10518394
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers

The heating element expired on our dishwasher.

I followed an internet video on how to change a dishwasher heating element. The installation involved completely removing the dishwasher from the cabinetry, needing sufficient space in which to turn the dishwasher on its side, and disconnecting the electric wire from the appliance junction box. The actual timing of the part replacement was about 15 minutes. The difficulty I had was familiarizing myself with where the hoses and lines connect and reconnect. Our kitchen is also small, so moving the machine around was tricky. If I were to replace the part again, I could do it much faster, now that I know how to do it. Also, the element seals were a bit different on the replacement part; however, they work just fine.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

James from Clayton, NC
Parts Used:
W10518394
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers, Wrench (Adjustable)

D3 error code - Heating element failure

Thanks to your excellent video, I just took my time, followed the instructions and I was done. Took longer to remove the dishwasher from the cabinet then to replace the element. Thanks for everything. Did it myself and saved a lot of money!

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

jeremy from cuyahoga falls, OH
Parts Used:
W10518394
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Wrench (Adjustable)

The heating element broke

I followed the online video and it was perfect. I pulled the dishwasher out found where the wires plugged into the heating element disconnected them unscrewed the plastic nuts, Took the broken heating element out of the dishwasher. When I put in the new heating element push them down through then screwed in new plastic nuts went back inside pushed down the heating element again to make sure it was in the right position and then I tightened up the plastic nuts on the bottom when that was done I reconnected the wires and pushed the dishwasher back in

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

< Prev
1
Next >

★ Customer Reviews

Average Rating: (2 Reviews)

4.5

★★★★★

Filter By Rating:

5★

1
4★

1
3★

0
2★

0
1★

0

< Prev
1
Next >

Sort by:

★★★★★

Verified Purchase

Fixed my dish washer!

Dishwasher stopped drying dishes 2 months ago… decided to try and fix it myself. I’m a 29 year old woman with zero experience in dishwasher maintenance and let me tell you, YouTube is heaven sent! The part arrived quickly and it fit perfectly. I had it replaced in 10 minutes or less.. Now my dishwasher is finally working again, and I’m so relieved I didn’t have to dish out the extra cash to replace it. I will be returning to this site if I need any parts in the future.

★★★★★

Verified Purchase

perfect replacement

< Prev
1
Next >

Model Compatibility

This part works with the following models:

Fix Number: FIX8260087
Manufacturer Part Number: W10518394

Kenmore

66213032K112

Dishwasher - Dishwasher

Kenmore

66512093K210

Dishwasher - UNDERCOUNTER DISWASHER

Kenmore

66512413N410

Dishwasher - DISHWASHER

Kenmore

66512413N411

Dishwasher - DISHWASHER

Kenmore

66512413N412

Dishwasher - DISHWASHER

Kenmore

66512723K310

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66512723K311

Dishwasher - DISHWASHER

Kenmore

66513002N510

Dishwasher - DISHWASHER

Kenmore

66513002N511

Dishwasher - DISHWASHER

Kenmore

66513003N510

Dishwasher - DISHWASHER

Kenmore

66513003N511

Dishwasher - DISHWASHER

Kenmore

66513004N510

Dishwasher - DISHWASHER

Kenmore

66513004N511

Dishwasher - DISHWASHER

Kenmore

66513009N510

Dishwasher - DISHWASHER

Kenmore

66513009N511

Dishwasher - DISHWASHER

Kenmore

66513012K110

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513012K111

Dishwasher

Kenmore

66513012K112

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513012K113

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513013K110

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513013K111

Dishwasher

Kenmore

66513013K112

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513013K113

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513014K110

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513014K111

Dishwasher

Kenmore

66513014K112

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513014K113

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513019K110

Dishwasher - UNDERCOUNTER DISHWASHER

Kenmore

66513019K111

Dishwasher

Kenmore

66513019K112

Dishwasher - UNDERCOUNTER DISHWASHER
