Part Location Diagram of WP3372028 Whirlpool Pin (Lid Hinge)
See part 11 in the diagram
Replacing your Whirlpool Dishwasher Pin (Lid Hinge)
( Grid squares measure 1x1 inch )

Pin (Lid Hinge) WP3372028

Rated by 1 customers

?

Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

?
$12.99
In Stock
Fix Number:
FIX11741308
Manufacturer #:
WP3372028
Manufactured by:
Whirlpool

Product Description

The lid hinge pin or detergent lid pin on your dishwasher helps dispense your dish detergent when your dishwasher is running. The pin fits with the dispenser lid and allows the lid to pop open and dispense detergent. It is a small, plastic pin that is approximately 3 inches in length. Due to its small size, the pin can be damaged relatively easily, and if your pin is broken or missing, it will need to be replaced. This product is sold individually.

Videos For installing this part.

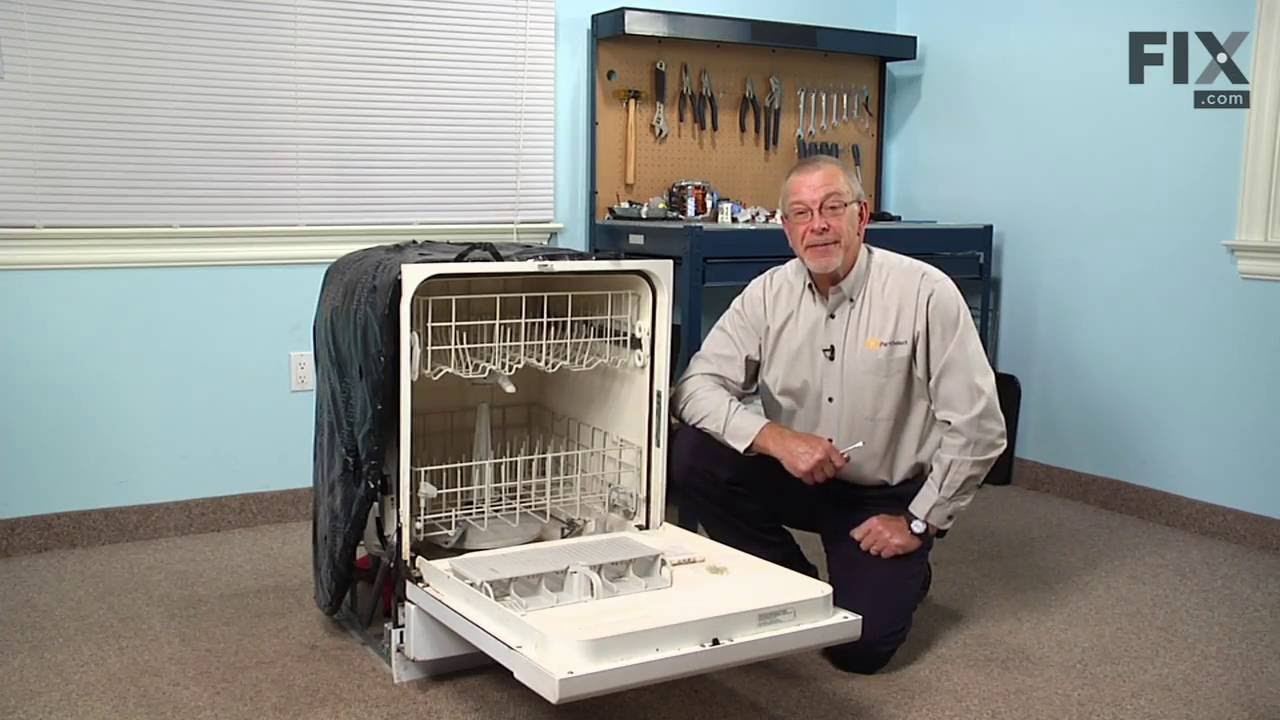

Replacing your Pin (Lid Hinge)

Replacing your Pin (Lid Hinge)

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

View More View Less
Soap Dispenser Cover
$27.31
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.5 / 5.0, 1 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Stephen from Mt Pleasant, SC
Parts Used:
WP8066018, WP3378138, WP3372028
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers
hinge pin broke form unknown cause
Note the position of the lid spring. After step 3 you won't be able to change the spring orientation. 1 - remove the lid, spring and cover. 2 - side the pin about 1/3 the way in and slip the spring on in the correct orientation and slide the pin in the rest of the way. 3 - snap the lid onto the pin. The spring won't hold the lid open unti l you hook the ends of the spring into the lid. 4 - Unbend the paper clip and with the pliers create a 45 degree bend 1/16 inch from the end. 5 - slip the clip end under the pin and hook the end of the spring. Pull the end to the side until it clears the lid rim and let the spring end settle in. Repeat for the other spring end.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11741308
Manufacturer Part Number: WP3372028
Brand
Model Number
Description
Kenmore
110723120
Dishwasher
Kenmore
110773811
Dishwasher
Kenmore
110773812
Dishwasher
Kenmore
110773813
Dishwasher
Kenmore
110773881
Dishwasher
Kenmore
110773882
Dishwasher
Kenmore
110773883
Dishwasher
Kenmore
65715755791
Dishwasher - Kenmore Dishwasher Model 657.15755791 (65715755791, 657 15755791) Parts
Kenmore
66513402K900
Dishwasher
Kenmore
66513402K901
Dishwasher
Kenmore
66513409K900
Dishwasher
Kenmore
66513409K901
Dishwasher
Kenmore
66513442K900
Dishwasher
Kenmore
66513442K901
Dishwasher
Kenmore
66513443K900
Dishwasher
Kenmore
66513443K901
Dishwasher
Kenmore
66513444K900
Dishwasher
Kenmore
66513444K901
Dishwasher
Kenmore
66513449K900
Dishwasher
Kenmore
66513449K901
Dishwasher
Kenmore
66513492K600
Dishwasher
Kenmore
66513499K600
Dishwasher
Kenmore
66513592K600
Dishwasher
Kenmore
66513593K600
Dishwasher
Kenmore
66513594K600
Dishwasher
Kenmore
66513599K600
Dishwasher
Kenmore
66513692K600
Dishwasher
Kenmore
66513699K600
Dishwasher
Kenmore
66514212K900
Dishwasher
Kenmore
66514212K901
Dishwasher
