Part Location Diagram of WD08X10057 GE Door Gasket - White
See part 843 in the diagram
Replacing your General Electric Dishwasher Door Gasket - White
( Grid squares measure 1x1 inch )

Door Gasket - White

Rated by 6 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$129.84
In Stock
Fix Number: FIX958908
Manufacturer #: WD08X10057
Manufactured by: GE

Product Description

This one piece dishwasher door gasket provides a water tight seal to keep water from leaking out of your dishwasher.

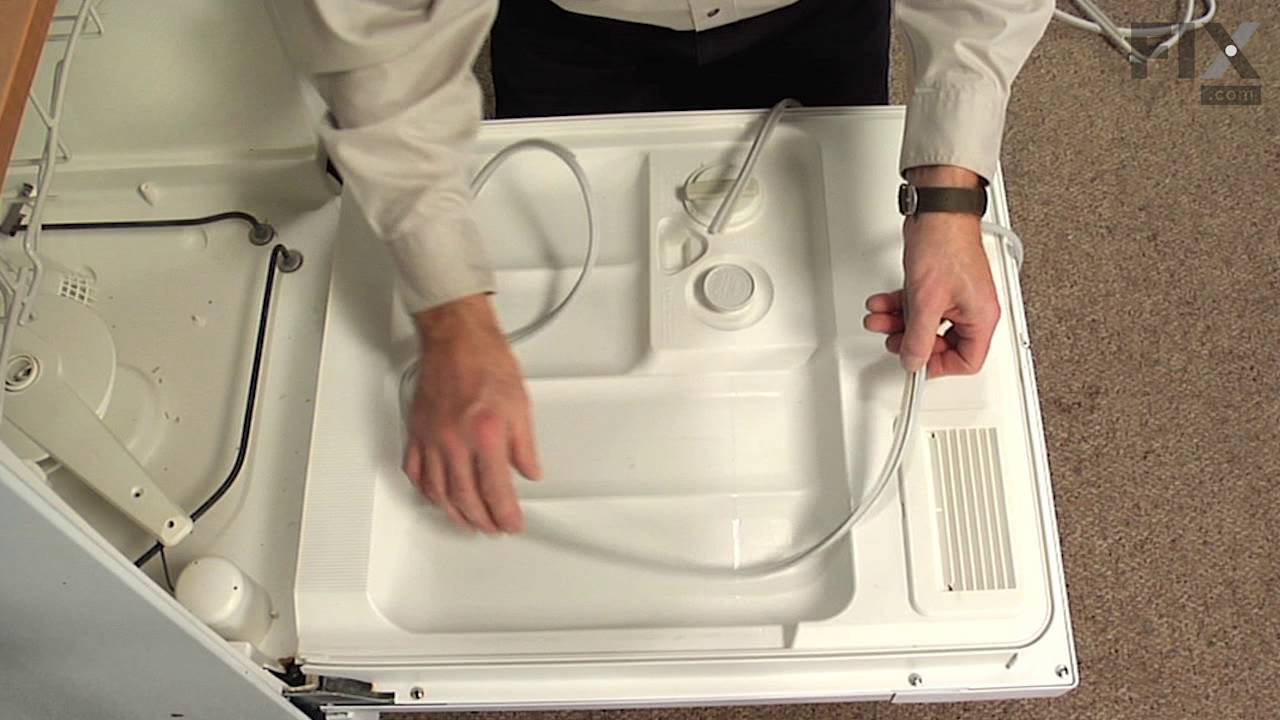

Videos For installing this part.

Replacing your Door Gasket - White

Replacing your Door Gasket - White

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.0 / 5.0, 6 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Dishwasher was leaking
my 15 year old dishwasher still runs great but suddenly started leaking a bit. After inspecting the gasket I determined it was pretty worn so I removed the 6 or 8 Phillips head screws and separated the door. In addition to the worn gasket the little plastic corners feet in the bottom of the door seat seemed worn. Additionally, I was getting chunks of what looked like black plastic appearing from time-to-time. Once I had the door apart it was apparent that the "plastic" was pieces of the noise dampening stuff that's taped on the plastic door. Over the years it looked like that had melted and slid down the door. So I ordered all of those pieces - it came to something around $30 for all of the pieces. So putting it all back together was not a challenge - I cleaned up everything well including using a paper towel covered tooth pick where the gasket goes, put the gasket in, the little middle piece of the gasket, the black feet in the bottoms of the door, removed all of the melted noise damper and placed the new one on then put the door back together and refastened the 8 screws. We loaded up the dishwasher and started the cycle. I was very disappointed to see that the thing still leaked! Then, my wife said, "ever since we got that new soap it's been leaking". When I looked at the little soap balls carefully I realized it was laundry detergent and not dishwashing soap! No doubt that my dishwasher is much better off after the changes BUT, before you start ordering and disassembling, check the soap to ensure it's actually dishwasher soap ... laundry detergent bubbles will leak!
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    TAO from Bryn Mawr, PA
  • Parts Used:
    WD08X10057
  • Difficulty Level:
    Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
Water leakage
After I changed a new door gasket, the dishwasher was still leak water. Then I check the door gasket, at the left bottom corner, the door gasket cannot fit the door perfectly. I found there is some thing in the slot, so I used scissors to cut a little chink in the door gasket, and fit the door gasket again.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Christopher from Hollandale, FL
  • Parts Used:
    WD08X10057
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
Water leaking from under the door
Just pulled the old one out from the channel. Was dry rotted,fell apart on bottom. Started on top with center mark at latch & worked my way around both sides to bottom. Removed bottom rack. Then with finger& thumb smoothed it out. Closed door to seal. Then ran on rinse to check for leaks.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Lisa from Cumming, GA
  • Parts Used:
    WD08X10057
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
Dishwasher leaking from the top and sides
Had replaced the baffles about 6 months ago...to stop some leaking from the bottom of the dishwasher. Did some trouble shooting...determined we needed a new door gasket. Removed old gasket....simply pulled it out of the track. Cleaned the gasket area....matched the notch on the new gasket to the notch at the top of the door..pressed the new gasket into place. Works great...no more leaks!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Anita from Boon, MI
  • Parts Used:
    WD08X10057
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers
The dishwasher was leaking out the dooor.
I had to take the inner lining of the door off and install the gasket with it setting up where I could see what I was doing. Installed the gasket and and put the liner back in the door. Have run it for 3 days and no leaks. Not bad for a 75 year old lady. I am real proud of myself. And I put the magnet on my fridge so if I have anymore problems in the future I know who to call on for parts. Thank you.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water was leaking out between the base of the dishwasher door and tub.
Removed the knob from the lock latch and removed the interior portion of the dishwasher door. Removing the interior portion of the dishwasher door made replacing the door gasket and the gasket insert very easy. Ensured that the area where the gaskets and the baffles resided were clean, prior to installing the new replacements.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Model Compatibility
This part works with the following models:
Fix Number: FIX958908
Manufacturer Part Number: WD08X10057
Brand
Model Number
Description
Kenmore
36314031000
Dishwasher
Kenmore
36314031001
Dishwasher
Kenmore
36314032000
Dishwasher
Kenmore
36314032001
Dishwasher
Kenmore
36314038000
Dishwasher
Kenmore
36314038001
Dishwasher
Kenmore
36314039000
Dishwasher
Kenmore
36314039001
Dishwasher
Kenmore
36314071792
Dishwasher
Kenmore
36314071793
Dishwasher
Kenmore
36314071794
Dishwasher
Kenmore
36314072793
Dishwasher
Kenmore
36314072794
Dishwasher
Kenmore
36314072795
Dishwasher
Kenmore
36314074792
Dishwasher
Kenmore
36314074793
Dishwasher
Kenmore
36314074794
Dishwasher
Kenmore
36314075792
Dishwasher
Kenmore
36314075793
Dishwasher
Kenmore
36314075794
Dishwasher
General Electric
36314081991
Dishwasher - DISHWASHER
Kenmore
36314081992
Dishwasher
Kenmore
36314081993
Dishwasher
Kenmore
36314081994
Dishwasher
Kenmore
36314151000
Dishwasher
Kenmore
36314152000
Dishwasher
Kenmore
36314158000
Dishwasher
Kenmore
36314159000
Dishwasher
Kenmore
36314181200
Dishwasher
Kenmore
36314181202
Dishwasher
