Fan Switch Grommet – Part Number: Y706103
Fan Switch Grommet – Part Number: Y706103 Fan Switch Grommet – Part Number: Y706103 https://fixcom.azureedge.net/Schematics/Maytag/33309.gif

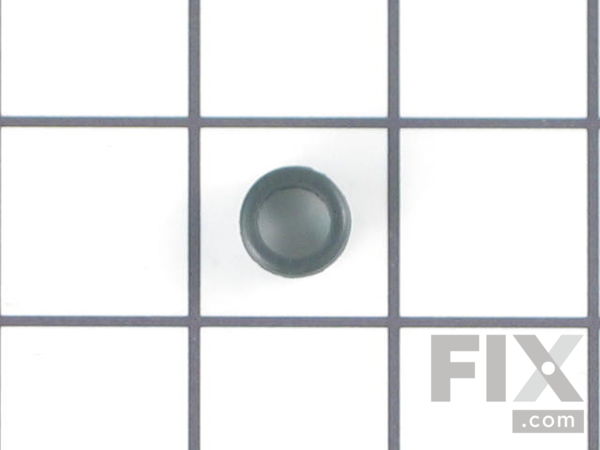

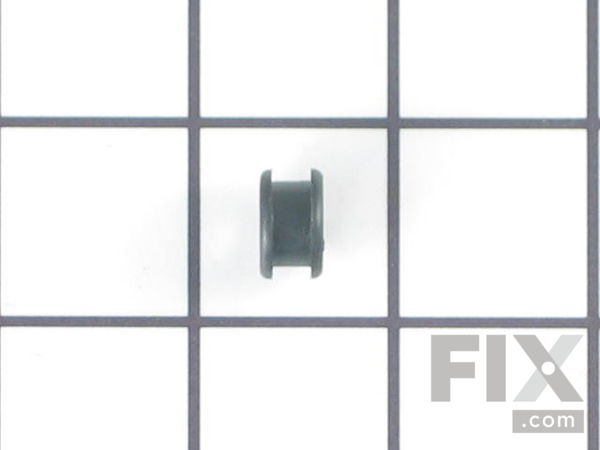

Fan Switch Grommet

Your Price

Fix Number: FIX2201758

Manufacturer #: Y706103

Manufactured by: Whirlpool

Part description

This grommet is located under the fan switch.

Works with the following brands

Jenn-Air, Kenmore, Maytag

Works with the following products

Cooktop, Range

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.7 / 5.0, 2 reviews
Customer:
Cyndy K. from Virginia Beach, VA
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Broke off knob stem and all!
First turn off power to unit and the gas. This was very easy. Used a screwdriver to remove the screws on the side I believe there were 4 of them. Removed all knobs for the gas. Lift up glass part carefully remove 2 screws on metal plate. Remove the nut on top of the fan switch and save. You will need to reuse. The switch did not match the one I have but it worked perfectly. Remove the metal clips from old switch and put on new switch. I turned power back on while still apart just to be sure it worked. Then I just reversed everything I did. Just be sure that you put the knob on before you put everything back to be sure how to attach switch on plate. I did it backwards the first try. This was a very easy thing to do. Sure saved me a lot of money. What really took me the longest was cleaning under the knobs while I was working. I had never removed the knobs and cleaned under them. I recommend you do this often!
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Jennifer from Saint Louise, MI
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Fan did not turn on, switch worn out
Clipped wires off old switch. Attached new wire clips to wires and attached to terminals on new switch. Turned off power first, of course. Works great. Paid for a service call who said couldn't be fixed. Should have found your site first!
